IMS-CPE: Backend/Frontend for Configurable Output Modules


This product is only compatible with Meinberg's line of modular IMS LANTIME systems.
Visit the IMS Information Page to learn more.

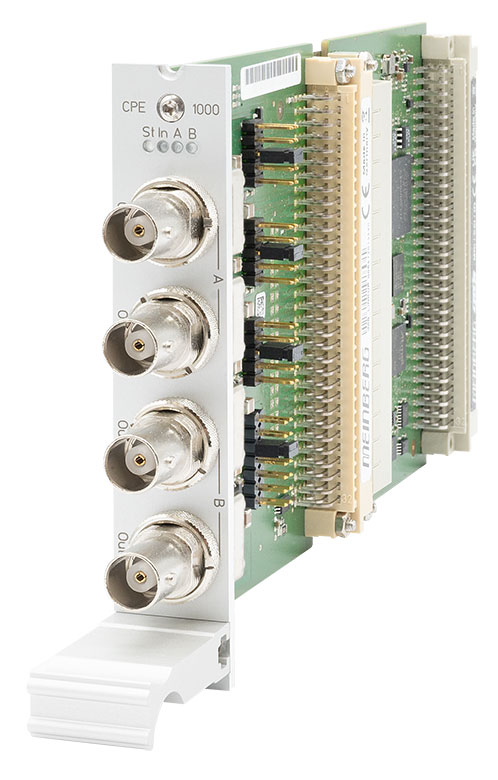

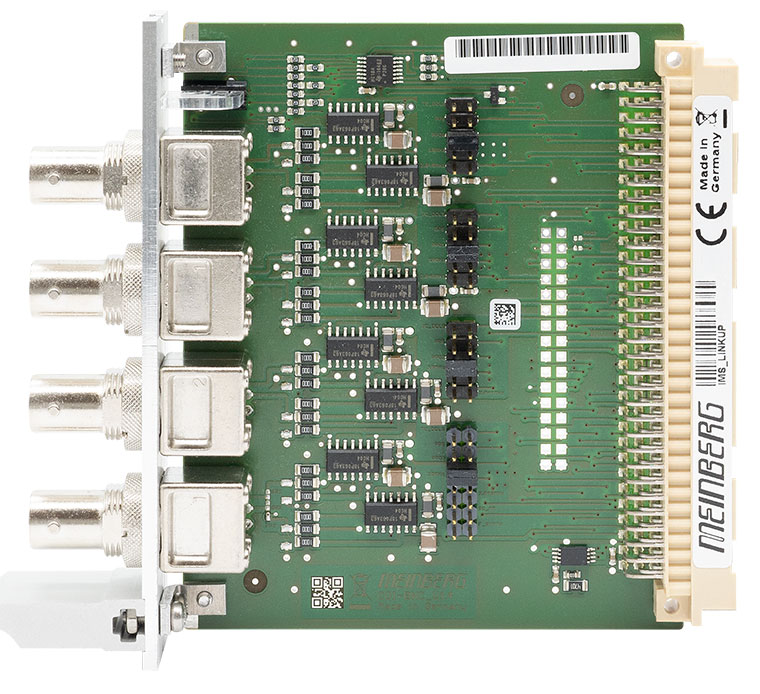

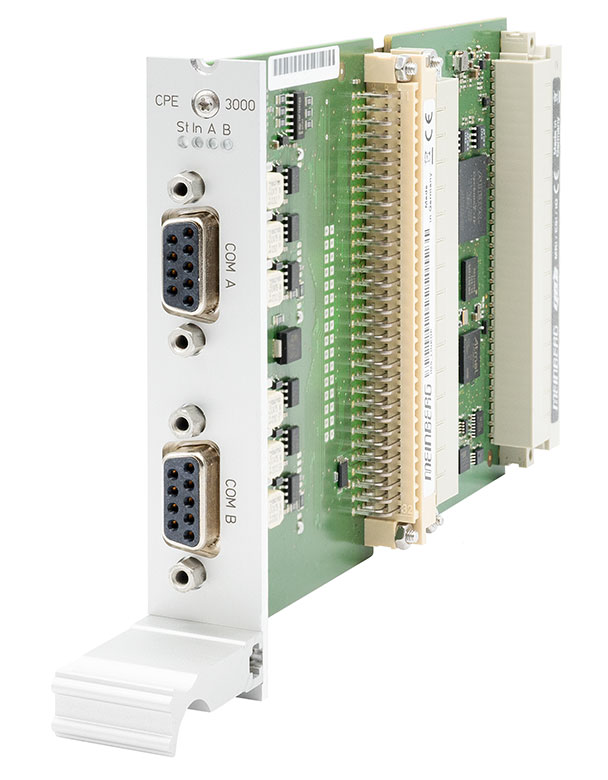

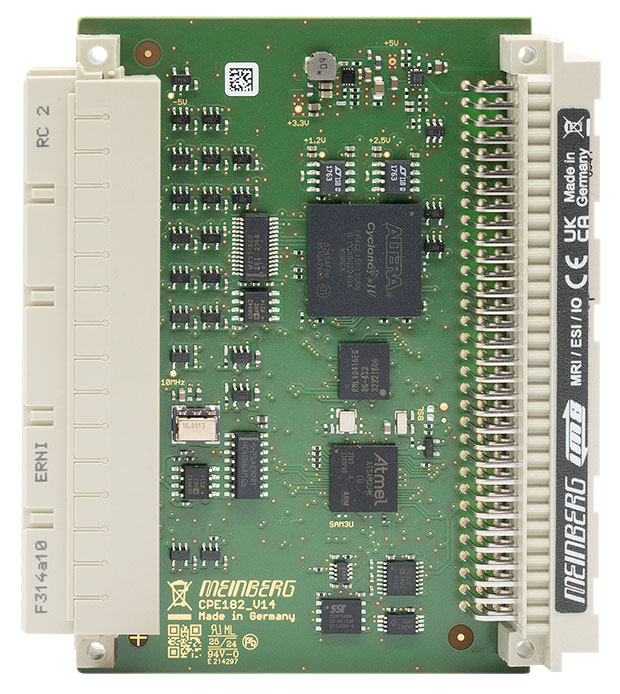

These modules consist of a half-size standard controller card (backend) and a dockable port expander card (front-End), providing a large variety of available and programmable output signals and physical connectors, including various electrical and optical interfaces.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • 1PPS, 10 MHz, Freq. Synth. (TTL), IRIG, AFNOR, IEEE1344, C37.118, NASA36, PPOs, DCF77 MARK, serial time strings
  • Free configurable output signals




Product Description

These modules consist of a half-size standard controller card (backend) and a dockable port expander card (front-End), providing a large variety of available and programmable output signals and physical connectors, including various electrical and optical interfaces.

Available Signals with IMS-CPE:

  • 1PPS, 10 MHz
  • Time Codes: IRIG A/B/E/G/AFNOR/IEEE1344/C37.118/NASA36
  • Frequency Synthesizer (TTL)
  • Programmable Pulses: 1PPS, 1PPM, 1PPH, Timer, Single Shot
  • Cyclic Pulses, DCF77 Mark, Sync Status
  • Serial Time Strings (RS-232 or RS-422 / 485)



Characteristics

Status Info LED Status Indicators
  • LED St: CPE Status
  • LED In: Status of the backplane's output signals
  • LED A: CPE status - output signals (1 + 2)
  • LED B: CPE status - output signals (3 + 4)
Operating Voltage +5 V DC
Current Draw 5 V +-5%, 150 mA
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.
  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
