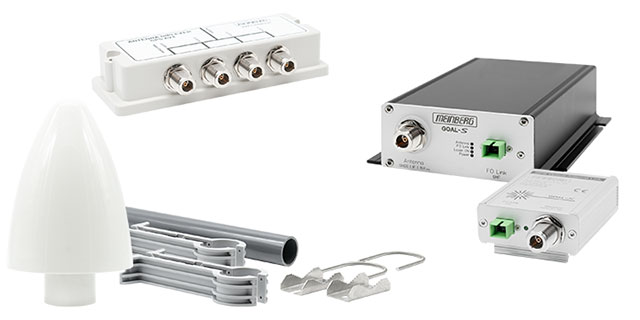

GNSS Antennas / Accessories:

The Meinberg GPS antenna system allows distances up to 700 m between the time server and the antenna. Unlike other competitors, the receiver is not included in the antenna housing and therefore not exposed to harsh environmental conditions (temperature, humidity). By using our GPS Optical Antenna Link system (GOAL), you can increase the distance to more than 2,000 m and avoid electrical problems you would have with standard cabling.

Scope of Delivery: GPS Antenna, 20 m of cable and all necessary mounting accessories. Other cable lengths and individual system configurations available on request.

Overview: GNSS Antennas / Accessories

GPSANTv2

Meinberg's next-generation GPS & Galileo antenna for superior reception and performance in time, phase, and frequency synchronization. The antenna features an integrated frequency downconverter that allows the GPS or Galileo signal to be transported reliably over long distances of up to 700 m using conventional low-loss coaxial cable.

GNMANTv2

The GNMANTv2 is Meinberg's latest multi-GNSS, multi-band antenna with comprehensive support for every civil GNSS service as well as a variety of regional and commercial augmentation systems, including L-band correction services such as Fugro AtomiChron®.

GPS EX-PROOF
Explosion proof active GPS L1-Antenna

Explosion proof active GPS L1-Antenna for areas where hazardous substances may occur.

GPSAV4
GPS Antenna Distributor (4-port, external)

The GPSAV4 redistributes a signal from a Meinberg GPS antenna/converter unit to four outputs, which in turn are connected to up to four Meinberg GPS receivers. The signal distributor is fitted with an internal amplifier to minimize signal attenuation.

The direct use or connection of GNSS L1 components is not possible.

GOAL
GPS Optical Antenna Link - Multi Mode

GPS Optical Antenna Link
The Meinberg GPS Optical Antenna Link provides a long-distance connection between a Meinberg GPS antenna and a Meinberg GPS receiver using a GI50/125µm or GI62.5/125µm multimode optical fiber.

The following satellite-based receiver types are suitable for use with a GOAL Antenna Link:

and older receivers of the series GPS163, GPS164, GPS165, GPS167, GPS168, GPS169 and GPS170 (but not GPS166 !).

GOAL-S
GPS Optical Antenna Link - Single Mode

GOAL-S is a GPS Optical Antenna Link - Set for connecting a Meinberg GPS antenna/converter (GNSS | IF | 15 V DC) with a Meinberg GPS receiver via a Single-Mode fiber.

ADU/FOS/MP
Fiber-optic GPS antenna splitter for secure signal transmission over long distances

ADU is an antenna distribution unit for connecting a Meinberg GPS antenna/converter (GNSS|IF|15V DC) to several Meinberg GPS receivers (up to eight receivers) via single mode fiber lines.

GPS-CON
GPS Converter

The Meinberg GPS converter allows the connection of a GPS L1 antenna (1575.42MHz) of other vendors to a Meinberg GPS receiver which uses an intermediate frequency.

MBG S-PRO
Surge Voltage Protector

Attachment plug with replaceable gas discharge tube for coaxial signal interfaces

Connection: N connector female/female. The MBG S-PRO set includes a surge voltage protector (Phoenix CN-UB-280DC-BB) and a mounting bracket.

INA - Inline Amplifier
High-Performance Inline Amplifier for GNSS Multiband

The Meinberg INA-20 and INA-30 Inline Amplifiers are high-performance accessories for GNSS antennas, specifically designed to maximize the signal strength and quality in your GNSS applications.
