GPS-CON: GPS Converter



The Meinberg GPS converter allows the connection of a GPS L1 antenna (1575.42MHz) of other vendors to a Meinberg GPS receiver which uses an intermediate frequency.

The module doesn't provide any DC voltage for powering active antennas, the DC voltage has to be applied externally via the 2-pin screw termminal.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Power for active GPS antenna via screw terminal
  • Easy mounting
  • Two housing types:
    1.) 35mm railmount
    2.) Case for wallmount




Product Description



Characteristics

Type of Antenna GPS L1 C/A-code antenna
receive frequency: 1575.42 MHz
Output frequency 35.42 MHz intermediate frequency for Meinberg GPS receivers
Electrical Connectors - female N-Norm connector for GPS antenna (option: female SMA connector)
- female N-Norm connector for Meinberg GPS receiver
- 2-pin Phoenix screw terminal for powering an active antenna

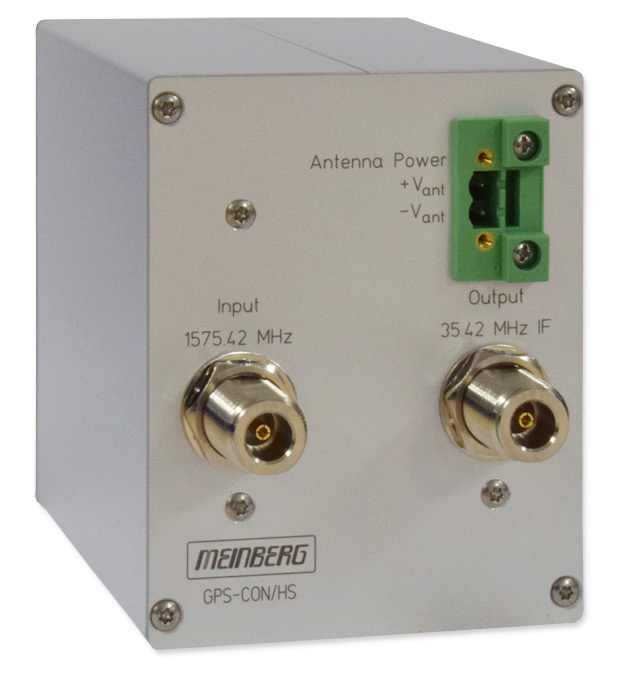

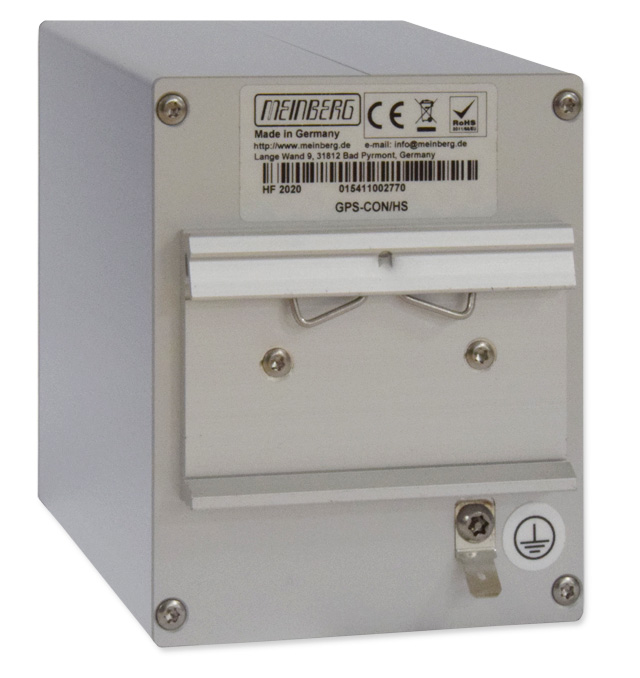

Form Factor Aluminium housing for 35mm DIN mounting rails
Height: 105mm, Width: 85mm, Depth: 104mm

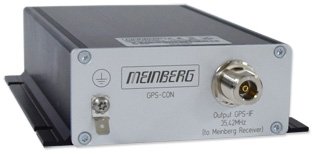

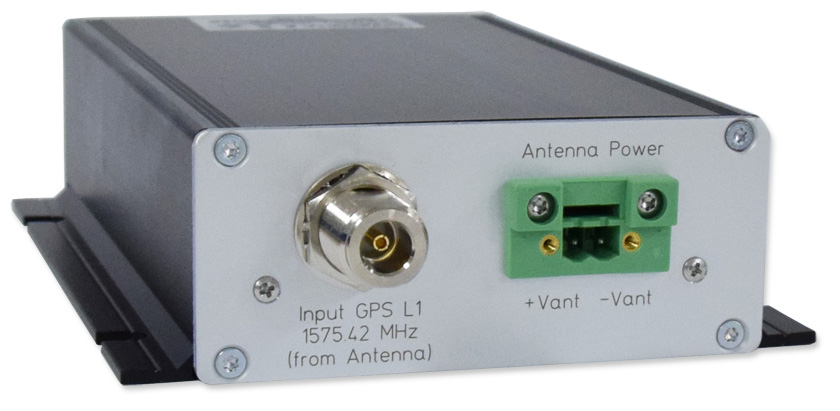

Aluminium case for wallmount (bracket holes fit for 19 inch mounting rack)
Height: 44mm, Width: 105mm, Depth: 166mm

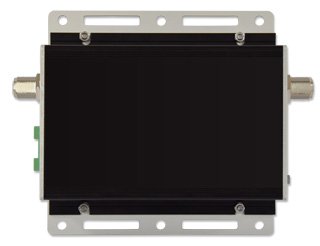

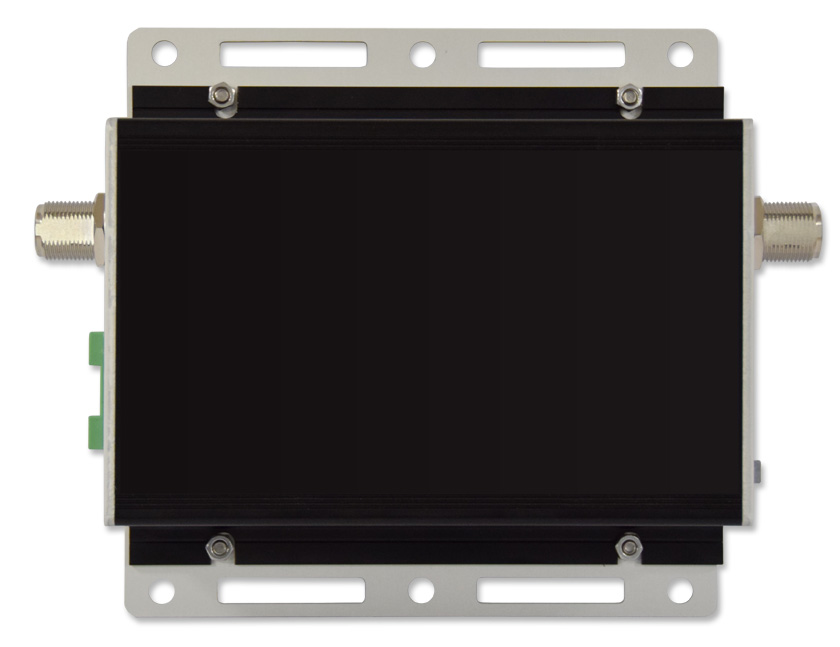

Option: Mounting plate for easy wall mounting or server rack mounting.
Height: 2mm, Width: 155mm, Depth: 160mm

Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
