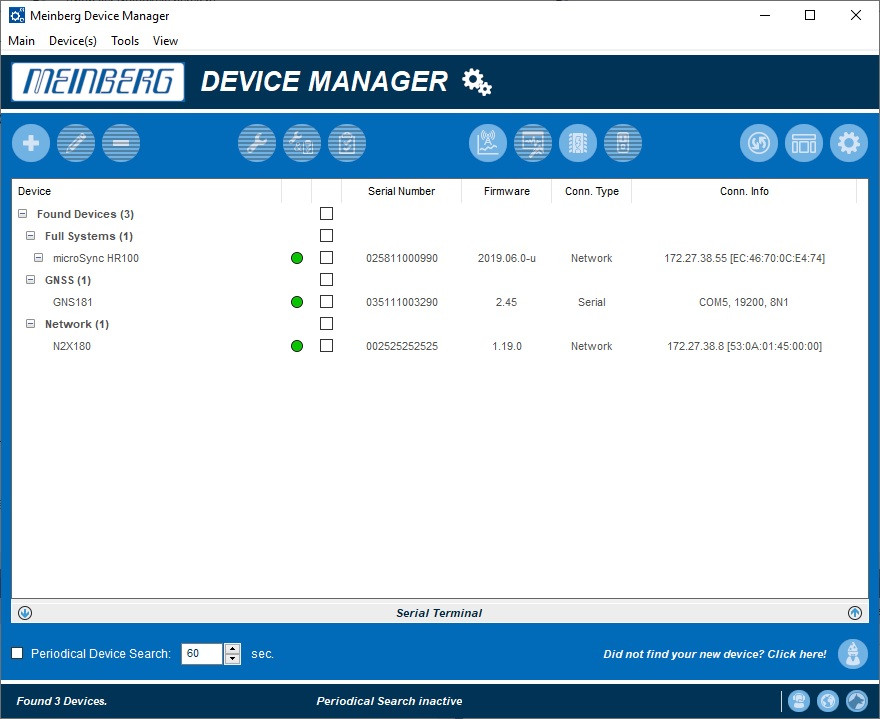

Meinberg Device Manager: Management and Monitoring Software for Windows and Linux
The software package "Meinberg Device Manager" for Windows can be used under Windows 7 and all newer versions. The software doesn't work under the operating systems Windows 95, Windows 98, Windows ME, Windows 2000, Windows XP and Windows Vista. Supported Linux distributions include Ubuntu, Mint Linux, Debian, SUSE Linux, CentOS, and others.
Meinberg Device Manager communicates with all standalone devices manufactured by Meinberg that are equipped with a network adapter or a serial interface, except LANTIME systems. This includes, among others, rackmount devices running meinbergOS (i.e. microSync HR, microSync RX), devices for DIN rail mounting such as the GPS180XHS or DCF600HS modules, but also smaller systems such as the Syncbox N2X. In addition, input and output modules of the IMS series which have been installed in an MDU (Modular Distribution Unit), can be configured via the management interface of the MDU-RSC.
Beside device configuration, the software can also be used to monitor the synchronization status of devices and modules, output signals (e.g. check of an outgoing time string), or to restart a supported device from a remote computer.
Please Note:
Older Meinberg receiver systems (e.g. GPS163, GPS167) are not supported by the Meinberg Device Manager software.
To configure and monitor these systems, please use the
GPSMON software available for download
on our website.
Installing the Configuration Software
Download Meinberg Device Manager free of charge from our homepage:
- Download Meinberg Device Manager (Installer) for Windows Operating Systems
- Download Meinberg Device Manager (Portable) for Windows Operating Systems
- Download Meinberg Device Manager for up-to-date dpkg-based Linux Systems (i.e., Ubuntu 22.04, Linux Mint 21, Debian 11)
- Download Meinberg Device Manager for older dpkg-based Linux Systems (i.e., Ubuntu 20.04, Linux Mint 20, Debian 10)
- Download Meinberg Device Manager for dnf/yum-based Linux Systems (i.e., openSUSE 15.1, RHEL 8)
- Download Meinberg Device Manager for 32-bit Linux Systems
On Windows operating systems the setup program provided a guided installation with a graphical user interface.
To update an earlier version of the Meinberg Device Manager, you can simply download and run a new version
of the installation program. The existing version will then be overwritten by the new setup procedure.
On older windows versions it's possible that there's an error message after the installation saying that a DLL is missing.
In this case the required Visual Studio 2013 runtime library can be downloaded from Microsoft:
https://www.microsoft.com/en-US/download/details.aspx?id=40784
Please be sure to install the 32 bit / x86 version of the runtime library, even on 64 bit Windows systems.
On Linux operation systems, unpack the .tar.gz archive into any empty directory and run the extracted program. A more detailed insteruction can be found in the Meinberg Device Manager documentation.
Meinberg Device Manager - Changelog
@--- Meinberg Device Manager Release Notes: last changes on top ---
Version 7.3 - Friday, 2023-12-01
- new: Added support for a whole bunch of new devices/modules (e.g., ANZ141, GSR183, GXL183)
- new: Added support for new GNSS types supported by GXL183 (SBAS and L band)
- new: Added support for new MRS types (i.e., Internal Oscillator, String only)
- new: Show GNSS core module type and version in System Status
- new: Added "Invert" and "Enable" options for 1 MHz, 5 MHz and HAVEQUICK PPOs
Version 7.2 - Tuesday, 2022-11-15
- new: Added option to download and show currently used SSL certificate (meinbergOS)
- new: Allow configuration of Max. Clock Class for PTP synchronization (Syncbox N2x)
- fix: Do not allow firmware update of N2X180 modules via the RSC within an MDU
- fix: Fixed status indication of disconnected serial devices after device search
Version 7.1 - Wednesday, 2022-05-18
- new: Show error/warning if an SSL certificate does not fulfill one of the mandatory/recommended constraints
- new: Added support for new VMX status structures (GPIO)
- fix: Allow usage of NTP symmetric keys with IDs > 99
- fix: Fixed recovery of complete configuration set (including Network) on Syncbox N2x
- fix: Do not hash password, again, if user presses non-modifying key while password text control has focus
- fix: Do not allow configuration of IEEE 802.3 PTP instances when packet generator is enabled
Version 7.0 - Wednesday, 2021-12-08
- new: Updated version of wxWidgets to 3.1.5
- new: Updated version of provided libssh in Windows version to 0.9.6
- new: Added option to allow scanning of IP address ranges for Meinberg devices
- new: Added group dividers to single view dropdown list to improve clarity
- new: Added option to create and view live captures of satellites statistics
- new: Added options to allow specification of min and max elevation and azimuth in satellites statistics dialog
- new: Show missing subject permissions if user is not allowed to read/write configuration/status
- new: Added options to enable/disable usage of a reference sources for time of day or phase synchronization
- new: Added option to disable auto-selection for specific reference sources
- new: Added options to import from or export to an NTP key file
- new: Allow configuration of extended delay asymmtry compensation value on Syncbox N2x
- new: Added configuration option for TFOM value in IRIG output configuration
- new: Added options to enable/disable ITU-R BR.1353 and parity encoding on LTC output GPIOs
- new: Added support for IMS sensor type "Uptime"
- fix: Fixed possible crash or infinite loading when switching between different user accounts
- fix: Fixed check of password and password confirmation values on user configuration page
- fix: Fixed possible crash or wrong behaviour in feature detection of serial connected devices
- fix: Fixed possible crash while searching for serial devices
- fix: Fixed display of installed module firmware on devices with more than one module
- fix: Fixed validation of firmware updates for new IF317 module
Version 6.4 - Thursday, 2021-03-25
- new: Added basic support for new NIMBRA100 module
- new: Added configuration options of IEEE 802.1AS specific PTP profile parameters
- new: Enable "Invert" and "If-sync" options for PTTI 1 PPS programmable pulse output
- new: Set and check OS target in meinbergOS UFU files
- fix: Fixed problem with missing subjects in context menus of selected devices
- fix: Fixed problems with hybrid mode and packet generator configuration
- fix: Make sure that modules are automatically redetected after module firmware updates
- fix: Fixed evaluation of time scale feature flag
- fix: Fixed reset of PTP domain to 0 when submitting an instance with AES67 profile
- fix: Fixed crash when closing mbgdevman while update thread is still running
- fix: Fixed load and save function of I/O port layouts
- fix: Improved clarity and user handiness on module firmware update page
Version 6.3 - Tuesday, 2020-11-17
- new: Show additional info string of reference source status, if supported by device
- fix: Increment IDs of automatically generated NTP keys correctly
Version 6.2 - Friday, 2020-11-13
- new: Allow reboot of microSync modules on the System configuration page
- new: Added support for oscillator calibration of microSync clock module
- fix: Fixed crash after successful firmware update of all modules within a microSync device
- fix: Avoid very long timeouts when a computer running mbgdevman has multiple serial ports
- fix: Download Device Manager and meinbergOS latest revision and changelog files asynchronously
Version 6.1 - Tuesday, 2020-10-20
- new: Added option to configure IDs of NTP symmetric keys
- new: Added option to enable/disable adherence of PTPv2 Path Trace TLV in Master mode
- new: Append serial number to diagnostics file name by default
- new: Added support for IMS sensors input and output switch
- new: Added option to start mbgdevman with custom preferences file (as command line parameter)
Version 6.0 - Monday, 2020-10-05
- new: Allow configuration of modules equipped in microSync (Support microSync 7xx)
- new: Added crosslinks between References and I/O-Ports
- new: Added support for DSUB-15 and SMB connectors in I/O-Port view
- new: Added buttons for SNMP MIB file download on monitoring config panel
- new: Added option to enable/disable usage of differential input of LTC input
- new: Added trouble-shoot dialog to allow easier detection of connectivity problems, etc.
- fix: Fixed display errors when updating many devices in parallel
- fix: Fixed deletion of unused firmware versions on multiple devices in parallel
- fix: Always redraw satellite map completely if persistent mode is inactive
- fix: Forbid application of extended network configuration, if user does not have shell access (injection prevention)
Version 5.4 - Monday, 2020-08-31
- new: Added support for IRIG output codes B000/B120 and B001/B121
Version 5.3 - Wednesday, 2020-06-24
- fix: Include groups in import of previously exported preferences file
- fix: Do not allow a smaller PTP delay req interval than sync interval
- fix: Do not reset network protocol after applying PTP E2E profile with IEEE 802.3
- fix: Enable configuration of priority 1 and priority 2 in IEC 61850-9-3 profile
- fix: Increased SSH message timeout for multiple routed connections
- fix: Save preferences immediately after initial setup has been finished, if appropriate option is checked
- fix: Correctly update clock firmware version after successful module update
- new: Added configuration options for automatic update function to initial setup dialog
Version 5.2 - Wednesday, 2020-05-06
- fix: Fixed crash during automatic firmware update if update file name has a hyphen instead of an underscore
- fix: Allow usage of same VLAN-ID for more than one physical or virtual interface
Version 5.1 - Thursday, 2020-03-19
- fix: Fixed debug alert and following application crash during automatic firmware update for meinbergOS devices
- new: Added possibility to configure static routes pointing directly to host addresses
Version 5.0 - Monday, 2020-03-16
- fix: Do not resize the window when scaling down the I/O port view
- fix: Do not allow more than one SNMPv3 config set per username
- fix: Automatically stretch PTP unicast slave list to fill the whole status panel
- fix: Fixed detection of authentication return codes in SSH connection attempts
- fix: Removed unrequired reconnects when connected to a DHCP interface
- fix: Fixed crash when configuring more than one master for a PTP unicast slave
- fix: Check max. number of firmwares before starting the update of meinbergOS devices
- fix: Reset data after activating firmware to ensure refresh of supported features
- fix: Allow single digit VLAN IDs for devices using the old network API (i.e. Syncbox N2x)
- new: Added new option to assort connected devices in custom device groups (i.e. by purpose, position, etc.)
- new: Show warning banner, if simulation mode is active
- new: Moved from wxWidgets 3.1.2 to wxWidgets 3.1.3
- new: Added third view type (Group View) for new device group feature
- new: Save and restore config path when loading/saving config files
- new: Show information about bonding master in physical interface configuration
- new: Adapted appearance of whole application to layout of new group view
- new: Added support for new GPIO type LTC input
- new: Added support for PRP master interface configuration
- new: Added possibility to set a custom alias for saved devices
- new: Added configuration interface for static network routes
Version 4.2 - Tuesday, 2020-01-23
- fix: Fixed (re)selection of previously selected device if hostname has been changed
- fix: Fixed invalid error messages when transmitting a license-only firmware update
- fix: Fixed loading all feature configurations on Syncbox N2x
- fix: Show device address in login window
- fix: Fixed destruction of progress dialog after click on "Apply All & Close"
- new: Added new help menu including a web link to the user manual
- new: Added "About..." dialog, which can be opened via the new help menu
- new: Added detection and execution of Meinberg Device Manager updates via internet
- new: Added evaluation of recommended Meinberg Device Manager version by meinbergOS devices
- new: Added detection and installation of meinbergOS updates via internet
- new: Added support for new SNMPv3 authentication and privacy protcols
- new: Added support for GPIO type LTC (Linear Time Code) output
- new: Refactored complete logging and added support for Windows Event Log and syslog (Linux)
Version 4.1 - Friday, 2020-01-10
- fix: Correctly evaluate and display "Out of range" offset in PTP state
- fix: Automatically enable/disable Start/Stop buttons whenever service states change
- fix: Fixed loading and application of multiple config subjects (Disaster recovery)
- fix: Fixed attribution of physical interface network settings from a configuration file
- fix: Added timeout for filter changes (two seconds) in syslog/dmesg output window
- new: Allow upload of own SSL certificate for web server (HTTPS)
- new: Parse event data (JSON) and show presentable value information
- new: Added crosslink between PTP physical interface and appropriate network configuration
- new: Added warning banner for critical system errors (NTP stopped, clock not synchronized)
- new: Show red warning text on status overview if NTP has been stopped
- new: Show configuration of selected virtual interface on PTP configuration panel
- new: Added timescale information to "Current Time" info on PTP status panel
- new: Added new TC modes for non-integer video out formats (VSG)
Version 4.0 - Wednesday, 2019-12-04
- new: Added option to enable encryption for preferences file to avoid disclosure of login credentials, etc.
- new: Added optional encryption/decryption when saving configuration files
- new: Added import/export feature for application preferences and saved connections
- new: Added checkbox to activate/deactivate front LED indication for physical network links (if supported)
- new: Added crosslink to PTP configuration on virtual interface configuration page
- new: Show table with all configured references and their status, instead of a drop down box
- new: Remember unreachable devices, that shall not be deleted at program startup
- fix: Show "No Connection", "No Signal", etc. for unavailable reference sources
Version 3.3p1 - Wednesday, 2019-11-13
- fix: Fixed crash when deleting firmware version from single device while being connected to multiple devices
Version 3.3 - Tuesday, 2019-11-12
- new: Show PTP domain number on main instance status page
- new: Allow configuration of log level for PTP instances
- new: Allow to activate or delete firmware versions on multiple devices in parallel
- new: Allow configuration of AES128CMAC keys for NTP, if supported by the connected device
- new: Added option to delete all unused firmware versions (i.e. all versions that are not OSV or currently active)
- fix: Fixed firmware update while status window is opened
- fix: Fixed crash when opening "GNSS statistics" from tree view
- fix: Check appropriate radio button in toolbar when switching between single and tree view
- fix: Automatically update firmware version of clock module after successful flash process
- fix: Allow flashing UFUs only, which are included in the currently active firmware version
- fix: Do not allow configuration of the same IP address or address within the same subnet on two or more virtual interfaces
Version 3.2 - Tuesday, 2019-10-29
- fix: Fixed loading/application of complete I/O ports configuration file
- fix: Fixed calculation of broadcast address when using an uneven number of prefix bits
- fix: Fixed string representation of NTP not sync event
- fix: Fixed progress indication when flashing the clock module in meinbergOS devices
Version 3.1 - Wednesday, 2019-10-16
- fix: Fixed synthesizer frequency configuration for meinbergOS devices
- fix: Fixed readout of Network config and NTP config/status on Syncbox N2x
- fix: Fixed crash due to competing connection handle access of two adjoined UI panels
- new: Added hintbox to serial update dialog for meinbergOS (i.e. microSync) users
Version 3.0p1 - Monday, 2019-10-07
- new: Added support for firmware updates via network on multiple devices in parallel
- new: Simplyfied the addition of new devices by adding a device type selection
- new: Added options for log level and log file path and improved debug logging
- new: Show SyncE status for physical network interfaces
- new: Added config option for users to allow/forbid root access (sudo), if supported by the device
- fix: Validate authentication and privacy passphrases for SNMPv3, as soon as the config shall be applied
- fix: Show connection status on clock status pages correctly, if a meinbergOS device (i.e. microSync) has been disconnected
Version 2.5p1 - Monday, 2019-09-02
- fix: Repaired missing UI updates when changing the status subject in Multi-View
- fix: Fixed compatibility for satellite status on older GPS firmware versions
Version 2.5 - Wednesday, 2019-08-28
- fix: Fixed serial flash programming function for Syncbox N2x
- fix: Solved connectivity problems between Windows 7 computers and meinbergOS devices
- fix: Removed several bugs, which appeared while or after updating a meinbergOS device
- fix: Fixed jumping receiver time on overview and clock status panels
- new: Open config/status dialog for connected devices on double-click in tree view
- new: Try to get information about a submodule up to three times, before discarding it
- new: Use latest OpenSSL and libssh libraries in Windows version
Version 2.4 - Tuesday, 2019-08-20
- fix: Fixed naming of newly created virtual interfaces (previous version always created lanX:0)
Version 2.3 - Monday, 2019-08-19
- fix: Fixed problems with firmware updates via network caused by cyclic unregistration of push messages
- fix: Correctly show NTP states "Sync to system peer" and "Not Sync" in event log
- fix: Reset configuration of microSync clock module completely on factory reset
Version 2.2 - Friday, 2019-08-16
- fix: Fixed selection of GNS systems for GNS181UC receiver
- fix: Improved timeout handling in case that the connected device is currently busy
- fix: Take dependencies between config subjects into account when applying multiple subjects at once
- fix: Fixed several minor UI flaws under Windows
- new: Allow the configuration of an alias for a PTP instance (meinbergOS)
Version 2.1 - Thursday, 2019-08-08
- fix: Snapshots did not contain a complete set of all available config/status subjects
- fix: Solved connectivity problems due to libssh incompatibilies on latest Linux systems
- fix: Fixed sporadical connection losses when working on one device from multiple sites
- fix: Firmware updates on meinbergOS devices frequently failed with a "TLV UID invalid" error
- fix: Do not automatically reconnect if connection is halted in device configuration dialog
- fix: Immediately take over new access rights of logged in user when applying user settings
- fix: Do not allow SNMPv3 authentication and privacy passphrases shorter than 8 characters
- new: Show username in the device dropdown box (single view) and in the "Conn. Info" column (tree-view)
Version 2.0 - Thursday, 2019-08-01
- new: Completely redesigned the user interface
- new: Added menu bar to the main window
- new: Added initial setup dialog to simplify the initial operation
- new: Use JSON format in user preferences instead of saving the binary data
- new: Added option to restrict the allowed connection type(s) via the user preferences
Version 1.6.5 - Monday, 2018-12-17
- fix: Do not always show GPIO video input settings
Version 1.6.4 - Friday, 2018-12-07
- new: Added support for HAVEQUICK input and output settings
- new: Added support for GPIO video input settings (VSI180)
- new: Added shell parameters for quiet, no-serial and no-network mode
- fix: Do not allow other than ASCII characters in all text inputs
- fix: Select all submodules of a modular unit (i.e. MDU) if checkbox is toggled
Version 1.6.3 - Thursday, 2018-10-11
- new: Added config and status panels for system-wide references (meinbergOS)
- new: Added support for extended system status, i.e. uptime, load, free RAM (meinbergOS)
- new: Added support for IRIG In and Synthesizer IO port configuration (meinbergOS)
- new: Added option to the serial terminal to periodically generate a time string
- new: Added support to flash devices which are already in boot mode
- fix: Fixed flash problems under Linux
- fix: Do not allow to backup device connections more than once
- fix: Fixed IO port view for 19 inch devices (meinbergOS)
Version 1.6.2 - Thursday, 2018-08-30
- new: Added menu appearing on right click on devices in the list view
- new: Added config and status panels for next gen. PTP API (meinbergOS)
- new: Added support for devices with GEN170 module(s)
- new: New arithmetic and floating average values for Carrier-to-noise-density-ratio
- fix: Fixed infinite loop when scanning for devices with non-default credentials
Version 1.6.1 - Tuesday, 2018-07-24
- new: Added new single view as alternative to the existing list view
- new: Show hostname and MAC address of a device in the list view
- new: Read configuration and status of devices in background (threaded)
- new: Added extended satellite log for supporting devices (meinbergOS)
- fix: Added several validations for user configuration
- fix: Allow VLAN configuration when DHCP is enabled
- fix: Allow fully qualified domain name as hostname
- fix: NTP stratum must have a value in the range 1 to 15
Version 1.6.0 - Friday, 2018-05-04
- new: Modernized icon, logo and general application layout
- new: Added status overview panel as initially shown status panel
- new: Added support for new IMS sensor types (input, output and supply voltage)
- new: Show IMS slot name and index of modules in modular devices (i.e. MDU)
- new: New IO port illustration, which now allows to monitor the status of LEDs
- fix: Fixed several bugs and added warning message when configuring multiple devices at once
- fix: Improved multiple validations on User, Network and Monitoring config panels
- fix: Improved duration of automatic device detection significantly
Version 1.5.3 - Wednesday, 2018-03-28
- new: Added configuration panel for advanced firmware management (meinbergOS)
- new: Added external syslog configuration to monitoring feature (meinbergOS)
- new: Added well-arranged NTP peer overview on NTP status panel
- fix: Fixed display issue for external NTP servers without association ID
- fix: Fixed setup of device features for on program start unreachable devices
Version 1.5.2 - Thursday, 2018-03-01
- new: Added configuration option for transmitter distance of PZF receivers
- new: Offer persistent save of manually added device connections
- fix: Fixed crash when trying to configure GNS181 and N2X180 in parallel
- fix: Simplified device selection behaviour
Version 1.5.1 - Monday, 2018-02-12
- new: Added services configuration and status panel for supporting devices
- new: Added correlation and signal strength of PZF receivers to clock status panel
- new: Show syslog and dmesg on system status panel
- new: Allow trusted key configuration for each external NTP server
- fix: Fixed reconnect mechanism after setting network configuration
- fix: Fixed NTP symmetric key validation
Version 1.5.0 - Tuesday, 2017-12-05
- new: Added secure network connection via SSH including user authentication and permission checks
- new: Added user management and user level management and the appropriate status panel
- new: Status and config changes can now be received via push messages
- new: "Cold Boot" and "Warm Boot" can now be initiated on the general config panel
- new: A snapshot of all config and status panels can now be created on the system config panel
- new: Added support for diagnostics files, factory defaults and firmware updates via network (nanoOS)
Version 1.4.1 - Thursday, 2017-09-14
- new: Added checkbox to save current configuration as startup configuration on VSG
- fix: Fixed DNS server configuration on N2x in MDU
- fix: Fixed reconnect mechanism after setting network configuration on N2x
- fix: Fixed NTP status selection bug
Version 1.4.0 - Monday, 2017-07-10
- fix: Fixed config initialization of features, which do not have a status
- fix: Try to reconnect periodically while connection is lost in status panels
- fix: Correctly determine model group for restored devices
- fix: Fixed save and load of all configurations
Version 1.3.9 - Monday, 2017-06-26
- fix: New (extended) features for manually added devices are now set up correctly
Version 1.3.8 - Wednesday, 2017-06-14
- fix: Fixed bug creating heavy load on modular devices (MDU)
- fix: Increased maximum number of sensors to be shown (RDU)
Version 1.3.7 - Monday, 2017-06-12
- new: Devices can now be updated directly via UFU TLVs
- new: Added whitelist configuration for NTP symmetric keys
- fix: Automatically correct IPv6 addresses to be lower case
- fix: Request ACK for GPS_AUTO_ON command (fixing problems with the MDU)
Version 1.3.6 - Thursday, 2017-06-01
- new: Added NTP status for refclocks
- fix: Fixed configuration of NTP symmetric keys and trusted keys
- fix: Fixed configuration and monitoring of devices, which are connected through an RSC180
- fix: Fixed bug regarding invalid default colour on satellite status panel
Version 1.3.5 - Thursday, 2017-04-20
- new: Added USB disconnect feature for new LCES
- fix: Immediately reconnect after the network password has been changed
- fix: Reduced flicker in Windows version by using wxWidgets DoubleBuffer feature
Version 1.3.4 - Thursday, 2017-03-23
- fix: Fixed save and load routines for several configuration sets
- new: Added controls for NTP ref. clock, symmetric key and trusted key configuration
- new: Added panels for I/O port configuration and status
Version 1.3.3 - Tuesday, 2017-03-14
- fix: Automatically pause terminal if configuration is opened for the currently used port
- fix: Checkbox to enable/disable Simulation Mode was not shown under Windows
- new: Added possibility to send commands and hexadecimal strings to serial device(s)
Version 1.3.2 - Monday, 2017-03-13
- new: Simulation Mode (ignore lock) can now be turned on/off for all supporting devices
- new: Integrated serial terminal window into device list, port can now be determined
- new: Added persistent user settings and possibility to save found devices
- new: Added configuration panel for network bonding
- new: Added TC mode and VITC line configuration for video GPIOs
Version 1.3.1 w/o - Wednesday, 2017-03-01
- new: Added signal graph for new GPS/Galileo receiver on satellite status panel
- fix: Fixed permanent reordering of similar devices connected to the same serial device
Version 1.3.0 w/o - Thursday, 2017-02-23
- new: Added network configuration wizard to make bringing devices into service easier
- new: Added configuration and status panels for monitoring feature
- fix: Fixed program crash when clearing an empty user capture buffer
Version 1.2.6 w/o - Monday, 2017-01-30
- new: Show all sensors on one page and adapt label colours for voltage sensors
Version 1.2.5 w/o - Monday, 2017-01-16
- fix: Fixed program crash after connecting to modular systems manually
Version 1.2.4 w/o - Wednesday, 2017-01-04
- new: Added hint bitmap for synthesizer and timecode programmable outputs configuration
- fix: Replaced "Spectrum" by "Grid" on satellites status panel
Version 1.2.3 w/o - Wednesday, 2016-12-14
- new: Added buttons to load and save configuration for all available features at once
- fix: Replaced bitmaps by labels for errors, warnings and info on ref. sources status panel
Version 1.2.2 w/o - Thursday, 2016-12-08
- new: Added satellite status panel and map of visible satellites
- new: Extended system status panel for status of four power supplies
Version 1.2.1 w/o - Thursday, 2016-12-01
- new: Added configuration and status panels (system) for SCU/RSC/MDU180
- fix: Fixed deletion of modular devices
Version 1.2.0 w/o - Tuesday, 2016-11-29
- new: Added Firmware Update feature for all modules with SAM3S/SAM3U and STM32F4 processor
- fix: Fixed FDM status output for use under Windows
Version 1.1.2 w/o - Wednesday, 2016-11-16
- fix: Fixed trying to connect to manually added devices
- fix: Fixed cyclic read of receiver time on status panel
- new: Added GNSS satellite information to receiver status panel
Version 1.1.1 w/o - Thursday, 2016-11-10
- fix: Fixed configuration and status for modular parent units (MDU180)
Version 1.1.0 w/o - Monday, 2016-11-07
- new: GNS system to be used can now be configured on GRC receivers
- new: Added modular device support for MDU using XBP feature
- new: Added configuration and status panels for FDM and GPIOs
- new: Added status panel for temperature and voltage sensors
Version 1.0.8 w/o - Thursday, 2016-10-27
- fix: Show complete version information on receiver status panel
- fix: Minimize all windows when config dialog is minimized
- fix: Resume serial raw output if save file dialog has been cancelled
Version 1.0.7 w/o - Wednesday, 2016-10-26
- fix: Improved update of receiver time on receiver status panel
- fix: Reduced flicker of user interface under Windows
Version 1.0.6 w/o - Thursday, 2016-10-20
- new: Added buttons to save and load configuration sets
- new: Added button to save serial output from terminal window
- new: Added configuration panel for user captures via network
- new: Show status bitmaps for reference status flags
- fix: Fixed check for valid default gateway
Version 1.0.5 w/o - Friday, 2016-10-14
- new: Added terminal window for serial raw data (timestring)
- new: Extended network configuration for HPS and CTC
- new: Immediately try to reconnect a device on double click
- fix: Serial ports that are marked invisible may not be configured
- fix: Show firmware version correctly with two decimal places
- fix: Several minor bugfixes for device connection handling
Version 1.0.4 w/o - Tuesday, 2016-10-04
- new: Extended reboot functionality for new GPS_REBOOT command
- new: Changed font color and size for config and status headlines
- new: DNS servers and search domains can be added and deleted explicitely
- fix: Disconnected devices can now be selected and deleted
Version 1.0.3 w/o - Friday, 2016-09-30
- fix: Fixed connectivity problems with serial devices using baudrate 19200
Version 1.0.2 w/o - Thursday, 2016-09-29
- fix: Tell device(s) to write DAC cal. value to EEPROM after it has been set
Version 1.0.1 w/o - Friday, 2016-09-23
- new: New button to perform a reboot from remote
- new: Added oscillator calibration dialog
- fix: Timeout error window should only be shown once
Version 1.0.0 w/o - Friday, 2016-09-16
- fix: Show hint for VLAN when configuring PTP Power Profile
- fix: Automatically set delay mechanism to E2E for PTP Unicast
- fix: Automatically deactivate hybrid mode for IEEE 802.3
- fix: Automatically set request interval to 1/s for P2P mechanism
- fix: Removed "Receivers" from model group names
- fix: Fixed compare function for MRS status
- fix: Fixed serial connection handling on lower baud rates
- fix: Do not show GNSS/DCF status strings for other devices
Version 0.9.8 N2x - Wednesday, 2016-08-31
- fix: Send GPS_AUTO_OFF when connection is closed
- fix: Corrected validation of PTP Grandmaster ID
Version 0.9.7 N2x - Tuesday, 2016-06-21
- fix: Multicast Slave is now available for older firmware versions
Version 0.9.6 N2x - Monday, 2016-06-20
- new: Release version for N2x only, built without PCI/PCIe support
Version 0.9.5 RC - Friday, 2016-06-17
- new: Now supports user captures
- new: Now supports event log
- new: Added minimize buttons
Version 0.9.4 RC-TCR - Friday, 2016-06-10
- new: Now supports IRIG input settings
- new: Now supports IRIG raw data (IRIG status)
Version 0.9.3 RC - Wednesday, 2016-06-08
- new: Now supports PCI/PCIe devices under Windows (requires DKWIN)
Version 0.9.2 RC-n2x - Wednesday, 2016-06-08
- new: Added serial parameter detection functionality
Version 0.9.1 RC-n2x - Tuesday, 2016-06-07
- new: Initial build
Close @--- Meinberg Device Manager Release Notes: last changes on top ---
@--- Meinberg Device Manager Release Notes: last changes on top ---
Version 7.3 - Friday, 2023-12-01 - new: Added support for a whole bunch of new devices/modules (e.g., ANZ141, GSR183, GXL183) - new: Added support for new GNSS types supported by GXL183 (SBAS and L band) - new: Added support for new MRS types (i.e., Internal Oscillator, String only) - new: Show GNSS core module type and version in System Status - new: Added "Invert" and "Enable" options for 1 MHz, 5 MHz and HAVEQUICK PPOs Version 7.2 - Tuesday, 2022-11-15 - new: Added option to download and show currently used SSL certificate (meinbergOS) - new: Allow configuration of Max. Clock Class for PTP synchronization (Syncbox N2x) - fix: Do not allow firmware update of N2X180 modules via the RSC within an MDU - fix: Fixed status indication of disconnected serial devices after device search Version 7.1 - Wednesday, 2022-05-18 - new: Show error/warning if an SSL certificate does not fulfill one of the mandatory/recommended constraints - new: Added support for new VMX status structures (GPIO) - fix: Allow usage of NTP symmetric keys with IDs > 99 - fix: Fixed recovery of complete configuration set (including Network) on Syncbox N2x - fix: Do not hash password, again, if user presses non-modifying key while password text control has focus - fix: Do not allow configuration of IEEE 802.3 PTP instances when packet generator is enabled Version 7.0 - Wednesday, 2021-12-08 - new: Updated version of wxWidgets to 3.1.5 - new: Updated version of provided libssh in Windows version to 0.9.6 - new: Added option to allow scanning of IP address ranges for Meinberg devices - new: Added group dividers to single view dropdown list to improve clarity - new: Added option to create and view live captures of satellites statistics - new: Added options to allow specification of min and max elevation and azimuth in satellites statistics dialog - new: Show missing subject permissions if user is not allowed to read/write configuration/status - new: Added options to enable/disable usage of a reference sources for time of day or phase synchronization - new: Added option to disable auto-selection for specific reference sources - new: Added options to import from or export to an NTP key file - new: Allow configuration of extended delay asymmtry compensation value on Syncbox N2x - new: Added configuration option for TFOM value in IRIG output configuration - new: Added options to enable/disable ITU-R BR.1353 and parity encoding on LTC output GPIOs - new: Added support for IMS sensor type "Uptime" - fix: Fixed possible crash or infinite loading when switching between different user accounts - fix: Fixed check of password and password confirmation values on user configuration page - fix: Fixed possible crash or wrong behaviour in feature detection of serial connected devices - fix: Fixed possible crash while searching for serial devices - fix: Fixed display of installed module firmware on devices with more than one module - fix: Fixed validation of firmware updates for new IF317 module Version 6.4 - Thursday, 2021-03-25 - new: Added basic support for new NIMBRA100 module - new: Added configuration options of IEEE 802.1AS specific PTP profile parameters - new: Enable "Invert" and "If-sync" options for PTTI 1 PPS programmable pulse output - new: Set and check OS target in meinbergOS UFU files - fix: Fixed problem with missing subjects in context menus of selected devices - fix: Fixed problems with hybrid mode and packet generator configuration - fix: Make sure that modules are automatically redetected after module firmware updates - fix: Fixed evaluation of time scale feature flag - fix: Fixed reset of PTP domain to 0 when submitting an instance with AES67 profile - fix: Fixed crash when closing mbgdevman while update thread is still running - fix: Fixed load and save function of I/O port layouts - fix: Improved clarity and user handiness on module firmware update page Version 6.3 - Tuesday, 2020-11-17 - new: Show additional info string of reference source status, if supported by device - fix: Increment IDs of automatically generated NTP keys correctly Version 6.2 - Friday, 2020-11-13 - new: Allow reboot of microSync modules on the System configuration page - new: Added support for oscillator calibration of microSync clock module - fix: Fixed crash after successful firmware update of all modules within a microSync device - fix: Avoid very long timeouts when a computer running mbgdevman has multiple serial ports - fix: Download Device Manager and meinbergOS latest revision and changelog files asynchronously Version 6.1 - Tuesday, 2020-10-20 - new: Added option to configure IDs of NTP symmetric keys - new: Added option to enable/disable adherence of PTPv2 Path Trace TLV in Master mode - new: Append serial number to diagnostics file name by default - new: Added support for IMS sensors input and output switch - new: Added option to start mbgdevman with custom preferences file (as command line parameter) Version 6.0 - Monday, 2020-10-05 - new: Allow configuration of modules equipped in microSync (Support microSync 7xx) - new: Added crosslinks between References and I/O-Ports - new: Added support for DSUB-15 and SMB connectors in I/O-Port view - new: Added buttons for SNMP MIB file download on monitoring config panel - new: Added option to enable/disable usage of differential input of LTC input - new: Added trouble-shoot dialog to allow easier detection of connectivity problems, etc. - fix: Fixed display errors when updating many devices in parallel - fix: Fixed deletion of unused firmware versions on multiple devices in parallel - fix: Always redraw satellite map completely if persistent mode is inactive - fix: Forbid application of extended network configuration, if user does not have shell access (injection prevention) Version 5.4 - Monday, 2020-08-31 - new: Added support for IRIG output codes B000/B120 and B001/B121 Version 5.3 - Wednesday, 2020-06-24 - fix: Include groups in import of previously exported preferences file - fix: Do not allow a smaller PTP delay req interval than sync interval - fix: Do not reset network protocol after applying PTP E2E profile with IEEE 802.3 - fix: Enable configuration of priority 1 and priority 2 in IEC 61850-9-3 profile - fix: Increased SSH message timeout for multiple routed connections - fix: Save preferences immediately after initial setup has been finished, if appropriate option is checked - fix: Correctly update clock firmware version after successful module update - new: Added configuration options for automatic update function to initial setup dialog Version 5.2 - Wednesday, 2020-05-06 - fix: Fixed crash during automatic firmware update if update file name has a hyphen instead of an underscore - fix: Allow usage of same VLAN-ID for more than one physical or virtual interface Version 5.1 - Thursday, 2020-03-19 - fix: Fixed debug alert and following application crash during automatic firmware update for meinbergOS devices - new: Added possibility to configure static routes pointing directly to host addresses Version 5.0 - Monday, 2020-03-16 - fix: Do not resize the window when scaling down the I/O port view - fix: Do not allow more than one SNMPv3 config set per username - fix: Automatically stretch PTP unicast slave list to fill the whole status panel - fix: Fixed detection of authentication return codes in SSH connection attempts - fix: Removed unrequired reconnects when connected to a DHCP interface - fix: Fixed crash when configuring more than one master for a PTP unicast slave - fix: Check max. number of firmwares before starting the update of meinbergOS devices - fix: Reset data after activating firmware to ensure refresh of supported features - fix: Allow single digit VLAN IDs for devices using the old network API (i.e. Syncbox N2x) - new: Added new option to assort connected devices in custom device groups (i.e. by purpose, position, etc.) - new: Show warning banner, if simulation mode is active - new: Moved from wxWidgets 3.1.2 to wxWidgets 3.1.3 - new: Added third view type (Group View) for new device group feature - new: Save and restore config path when loading/saving config files - new: Show information about bonding master in physical interface configuration - new: Adapted appearance of whole application to layout of new group view - new: Added support for new GPIO type LTC input - new: Added support for PRP master interface configuration - new: Added possibility to set a custom alias for saved devices - new: Added configuration interface for static network routes Version 4.2 - Tuesday, 2020-01-23 - fix: Fixed (re)selection of previously selected device if hostname has been changed - fix: Fixed invalid error messages when transmitting a license-only firmware update - fix: Fixed loading all feature configurations on Syncbox N2x - fix: Show device address in login window - fix: Fixed destruction of progress dialog after click on "Apply All & Close" - new: Added new help menu including a web link to the user manual - new: Added "About..." dialog, which can be opened via the new help menu - new: Added detection and execution of Meinberg Device Manager updates via internet - new: Added evaluation of recommended Meinberg Device Manager version by meinbergOS devices - new: Added detection and installation of meinbergOS updates via internet - new: Added support for new SNMPv3 authentication and privacy protcols - new: Added support for GPIO type LTC (Linear Time Code) output - new: Refactored complete logging and added support for Windows Event Log and syslog (Linux) Version 4.1 - Friday, 2020-01-10 - fix: Correctly evaluate and display "Out of range" offset in PTP state - fix: Automatically enable/disable Start/Stop buttons whenever service states change - fix: Fixed loading and application of multiple config subjects (Disaster recovery) - fix: Fixed attribution of physical interface network settings from a configuration file - fix: Added timeout for filter changes (two seconds) in syslog/dmesg output window - new: Allow upload of own SSL certificate for web server (HTTPS) - new: Parse event data (JSON) and show presentable value information - new: Added crosslink between PTP physical interface and appropriate network configuration - new: Added warning banner for critical system errors (NTP stopped, clock not synchronized) - new: Show red warning text on status overview if NTP has been stopped - new: Show configuration of selected virtual interface on PTP configuration panel - new: Added timescale information to "Current Time" info on PTP status panel - new: Added new TC modes for non-integer video out formats (VSG) Version 4.0 - Wednesday, 2019-12-04 - new: Added option to enable encryption for preferences file to avoid disclosure of login credentials, etc. - new: Added optional encryption/decryption when saving configuration files - new: Added import/export feature for application preferences and saved connections - new: Added checkbox to activate/deactivate front LED indication for physical network links (if supported) - new: Added crosslink to PTP configuration on virtual interface configuration page - new: Show table with all configured references and their status, instead of a drop down box - new: Remember unreachable devices, that shall not be deleted at program startup - fix: Show "No Connection", "No Signal", etc. for unavailable reference sources Version 3.3p1 - Wednesday, 2019-11-13 - fix: Fixed crash when deleting firmware version from single device while being connected to multiple devices Version 3.3 - Tuesday, 2019-11-12 - new: Show PTP domain number on main instance status page - new: Allow configuration of log level for PTP instances - new: Allow to activate or delete firmware versions on multiple devices in parallel - new: Allow configuration of AES128CMAC keys for NTP, if supported by the connected device - new: Added option to delete all unused firmware versions (i.e. all versions that are not OSV or currently active) - fix: Fixed firmware update while status window is opened - fix: Fixed crash when opening "GNSS statistics" from tree view - fix: Check appropriate radio button in toolbar when switching between single and tree view - fix: Automatically update firmware version of clock module after successful flash process - fix: Allow flashing UFUs only, which are included in the currently active firmware version - fix: Do not allow configuration of the same IP address or address within the same subnet on two or more virtual interfaces Version 3.2 - Tuesday, 2019-10-29 - fix: Fixed loading/application of complete I/O ports configuration file - fix: Fixed calculation of broadcast address when using an uneven number of prefix bits - fix: Fixed string representation of NTP not sync event - fix: Fixed progress indication when flashing the clock module in meinbergOS devices Version 3.1 - Wednesday, 2019-10-16 - fix: Fixed synthesizer frequency configuration for meinbergOS devices - fix: Fixed readout of Network config and NTP config/status on Syncbox N2x - fix: Fixed crash due to competing connection handle access of two adjoined UI panels - new: Added hintbox to serial update dialog for meinbergOS (i.e. microSync) users Version 3.0p1 - Monday, 2019-10-07 - new: Added support for firmware updates via network on multiple devices in parallel - new: Simplyfied the addition of new devices by adding a device type selection - new: Added options for log level and log file path and improved debug logging - new: Show SyncE status for physical network interfaces - new: Added config option for users to allow/forbid root access (sudo), if supported by the device - fix: Validate authentication and privacy passphrases for SNMPv3, as soon as the config shall be applied - fix: Show connection status on clock status pages correctly, if a meinbergOS device (i.e. microSync) has been disconnected Version 2.5p1 - Monday, 2019-09-02 - fix: Repaired missing UI updates when changing the status subject in Multi-View - fix: Fixed compatibility for satellite status on older GPS firmware versions Version 2.5 - Wednesday, 2019-08-28 - fix: Fixed serial flash programming function for Syncbox N2x - fix: Solved connectivity problems between Windows 7 computers and meinbergOS devices - fix: Removed several bugs, which appeared while or after updating a meinbergOS device - fix: Fixed jumping receiver time on overview and clock status panels - new: Open config/status dialog for connected devices on double-click in tree view - new: Try to get information about a submodule up to three times, before discarding it - new: Use latest OpenSSL and libssh libraries in Windows version Version 2.4 - Tuesday, 2019-08-20 - fix: Fixed naming of newly created virtual interfaces (previous version always created lanX:0) Version 2.3 - Monday, 2019-08-19 - fix: Fixed problems with firmware updates via network caused by cyclic unregistration of push messages - fix: Correctly show NTP states "Sync to system peer" and "Not Sync" in event log - fix: Reset configuration of microSync clock module completely on factory reset Version 2.2 - Friday, 2019-08-16 - fix: Fixed selection of GNS systems for GNS181UC receiver - fix: Improved timeout handling in case that the connected device is currently busy - fix: Take dependencies between config subjects into account when applying multiple subjects at once - fix: Fixed several minor UI flaws under Windows - new: Allow the configuration of an alias for a PTP instance (meinbergOS) Version 2.1 - Thursday, 2019-08-08 - fix: Snapshots did not contain a complete set of all available config/status subjects - fix: Solved connectivity problems due to libssh incompatibilies on latest Linux systems - fix: Fixed sporadical connection losses when working on one device from multiple sites - fix: Firmware updates on meinbergOS devices frequently failed with a "TLV UID invalid" error - fix: Do not automatically reconnect if connection is halted in device configuration dialog - fix: Immediately take over new access rights of logged in user when applying user settings - fix: Do not allow SNMPv3 authentication and privacy passphrases shorter than 8 characters - new: Show username in the device dropdown box (single view) and in the "Conn. Info" column (tree-view) Version 2.0 - Thursday, 2019-08-01 - new: Completely redesigned the user interface - new: Added menu bar to the main window - new: Added initial setup dialog to simplify the initial operation - new: Use JSON format in user preferences instead of saving the binary data - new: Added option to restrict the allowed connection type(s) via the user preferences Version 1.6.5 - Monday, 2018-12-17 - fix: Do not always show GPIO video input settings Version 1.6.4 - Friday, 2018-12-07 - new: Added support for HAVEQUICK input and output settings - new: Added support for GPIO video input settings (VSI180) - new: Added shell parameters for quiet, no-serial and no-network mode - fix: Do not allow other than ASCII characters in all text inputs - fix: Select all submodules of a modular unit (i.e. MDU) if checkbox is toggled Version 1.6.3 - Thursday, 2018-10-11 - new: Added config and status panels for system-wide references (meinbergOS) - new: Added support for extended system status, i.e. uptime, load, free RAM (meinbergOS) - new: Added support for IRIG In and Synthesizer IO port configuration (meinbergOS) - new: Added option to the serial terminal to periodically generate a time string - new: Added support to flash devices which are already in boot mode - fix: Fixed flash problems under Linux - fix: Do not allow to backup device connections more than once - fix: Fixed IO port view for 19 inch devices (meinbergOS) Version 1.6.2 - Thursday, 2018-08-30 - new: Added menu appearing on right click on devices in the list view - new: Added config and status panels for next gen. PTP API (meinbergOS) - new: Added support for devices with GEN170 module(s) - new: New arithmetic and floating average values for Carrier-to-noise-density-ratio - fix: Fixed infinite loop when scanning for devices with non-default credentials Version 1.6.1 - Tuesday, 2018-07-24 - new: Added new single view as alternative to the existing list view - new: Show hostname and MAC address of a device in the list view - new: Read configuration and status of devices in background (threaded) - new: Added extended satellite log for supporting devices (meinbergOS) - fix: Added several validations for user configuration - fix: Allow VLAN configuration when DHCP is enabled - fix: Allow fully qualified domain name as hostname - fix: NTP stratum must have a value in the range 1 to 15 Version 1.6.0 - Friday, 2018-05-04 - new: Modernized icon, logo and general application layout - new: Added status overview panel as initially shown status panel - new: Added support for new IMS sensor types (input, output and supply voltage) - new: Show IMS slot name and index of modules in modular devices (i.e. MDU) - new: New IO port illustration, which now allows to monitor the status of LEDs - fix: Fixed several bugs and added warning message when configuring multiple devices at once - fix: Improved multiple validations on User, Network and Monitoring config panels - fix: Improved duration of automatic device detection significantly Version 1.5.3 - Wednesday, 2018-03-28 - new: Added configuration panel for advanced firmware management (meinbergOS) - new: Added external syslog configuration to monitoring feature (meinbergOS) - new: Added well-arranged NTP peer overview on NTP status panel - fix: Fixed display issue for external NTP servers without association ID - fix: Fixed setup of device features for on program start unreachable devices Version 1.5.2 - Thursday, 2018-03-01 - new: Added configuration option for transmitter distance of PZF receivers - new: Offer persistent save of manually added device connections - fix: Fixed crash when trying to configure GNS181 and N2X180 in parallel - fix: Simplified device selection behaviour Version 1.5.1 - Monday, 2018-02-12 - new: Added services configuration and status panel for supporting devices - new: Added correlation and signal strength of PZF receivers to clock status panel - new: Show syslog and dmesg on system status panel - new: Allow trusted key configuration for each external NTP server - fix: Fixed reconnect mechanism after setting network configuration - fix: Fixed NTP symmetric key validation Version 1.5.0 - Tuesday, 2017-12-05 - new: Added secure network connection via SSH including user authentication and permission checks - new: Added user management and user level management and the appropriate status panel - new: Status and config changes can now be received via push messages - new: "Cold Boot" and "Warm Boot" can now be initiated on the general config panel - new: A snapshot of all config and status panels can now be created on the system config panel - new: Added support for diagnostics files, factory defaults and firmware updates via network (nanoOS) Version 1.4.1 - Thursday, 2017-09-14 - new: Added checkbox to save current configuration as startup configuration on VSG - fix: Fixed DNS server configuration on N2x in MDU - fix: Fixed reconnect mechanism after setting network configuration on N2x - fix: Fixed NTP status selection bug Version 1.4.0 - Monday, 2017-07-10 - fix: Fixed config initialization of features, which do not have a status - fix: Try to reconnect periodically while connection is lost in status panels - fix: Correctly determine model group for restored devices - fix: Fixed save and load of all configurations Version 1.3.9 - Monday, 2017-06-26 - fix: New (extended) features for manually added devices are now set up correctly Version 1.3.8 - Wednesday, 2017-06-14 - fix: Fixed bug creating heavy load on modular devices (MDU) - fix: Increased maximum number of sensors to be shown (RDU) Version 1.3.7 - Monday, 2017-06-12 - new: Devices can now be updated directly via UFU TLVs - new: Added whitelist configuration for NTP symmetric keys - fix: Automatically correct IPv6 addresses to be lower case - fix: Request ACK for GPS_AUTO_ON command (fixing problems with the MDU) Version 1.3.6 - Thursday, 2017-06-01 - new: Added NTP status for refclocks - fix: Fixed configuration of NTP symmetric keys and trusted keys - fix: Fixed configuration and monitoring of devices, which are connected through an RSC180 - fix: Fixed bug regarding invalid default colour on satellite status panel Version 1.3.5 - Thursday, 2017-04-20 - new: Added USB disconnect feature for new LCES - fix: Immediately reconnect after the network password has been changed - fix: Reduced flicker in Windows version by using wxWidgets DoubleBuffer feature Version 1.3.4 - Thursday, 2017-03-23 - fix: Fixed save and load routines for several configuration sets - new: Added controls for NTP ref. clock, symmetric key and trusted key configuration - new: Added panels for I/O port configuration and status Version 1.3.3 - Tuesday, 2017-03-14 - fix: Automatically pause terminal if configuration is opened for the currently used port - fix: Checkbox to enable/disable Simulation Mode was not shown under Windows - new: Added possibility to send commands and hexadecimal strings to serial device(s) Version 1.3.2 - Monday, 2017-03-13 - new: Simulation Mode (ignore lock) can now be turned on/off for all supporting devices - new: Integrated serial terminal window into device list, port can now be determined - new: Added persistent user settings and possibility to save found devices - new: Added configuration panel for network bonding - new: Added TC mode and VITC line configuration for video GPIOs Version 1.3.1 w/o - Wednesday, 2017-03-01 - new: Added signal graph for new GPS/Galileo receiver on satellite status panel - fix: Fixed permanent reordering of similar devices connected to the same serial device Version 1.3.0 w/o - Thursday, 2017-02-23 - new: Added network configuration wizard to make bringing devices into service easier - new: Added configuration and status panels for monitoring feature - fix: Fixed program crash when clearing an empty user capture buffer Version 1.2.6 w/o - Monday, 2017-01-30 - new: Show all sensors on one page and adapt label colours for voltage sensors Version 1.2.5 w/o - Monday, 2017-01-16 - fix: Fixed program crash after connecting to modular systems manually Version 1.2.4 w/o - Wednesday, 2017-01-04 - new: Added hint bitmap for synthesizer and timecode programmable outputs configuration - fix: Replaced "Spectrum" by "Grid" on satellites status panel Version 1.2.3 w/o - Wednesday, 2016-12-14 - new: Added buttons to load and save configuration for all available features at once - fix: Replaced bitmaps by labels for errors, warnings and info on ref. sources status panel Version 1.2.2 w/o - Thursday, 2016-12-08 - new: Added satellite status panel and map of visible satellites - new: Extended system status panel for status of four power supplies Version 1.2.1 w/o - Thursday, 2016-12-01 - new: Added configuration and status panels (system) for SCU/RSC/MDU180 - fix: Fixed deletion of modular devices Version 1.2.0 w/o - Tuesday, 2016-11-29 - new: Added Firmware Update feature for all modules with SAM3S/SAM3U and STM32F4 processor - fix: Fixed FDM status output for use under Windows Version 1.1.2 w/o - Wednesday, 2016-11-16 - fix: Fixed trying to connect to manually added devices - fix: Fixed cyclic read of receiver time on status panel - new: Added GNSS satellite information to receiver status panel Version 1.1.1 w/o - Thursday, 2016-11-10 - fix: Fixed configuration and status for modular parent units (MDU180) Version 1.1.0 w/o - Monday, 2016-11-07 - new: GNS system to be used can now be configured on GRC receivers - new: Added modular device support for MDU using XBP feature - new: Added configuration and status panels for FDM and GPIOs - new: Added status panel for temperature and voltage sensors Version 1.0.8 w/o - Thursday, 2016-10-27 - fix: Show complete version information on receiver status panel - fix: Minimize all windows when config dialog is minimized - fix: Resume serial raw output if save file dialog has been cancelled Version 1.0.7 w/o - Wednesday, 2016-10-26 - fix: Improved update of receiver time on receiver status panel - fix: Reduced flicker of user interface under Windows Version 1.0.6 w/o - Thursday, 2016-10-20 - new: Added buttons to save and load configuration sets - new: Added button to save serial output from terminal window - new: Added configuration panel for user captures via network - new: Show status bitmaps for reference status flags - fix: Fixed check for valid default gateway Version 1.0.5 w/o - Friday, 2016-10-14 - new: Added terminal window for serial raw data (timestring) - new: Extended network configuration for HPS and CTC - new: Immediately try to reconnect a device on double click - fix: Serial ports that are marked invisible may not be configured - fix: Show firmware version correctly with two decimal places - fix: Several minor bugfixes for device connection handling Version 1.0.4 w/o - Tuesday, 2016-10-04 - new: Extended reboot functionality for new GPS_REBOOT command - new: Changed font color and size for config and status headlines - new: DNS servers and search domains can be added and deleted explicitely - fix: Disconnected devices can now be selected and deleted Version 1.0.3 w/o - Friday, 2016-09-30 - fix: Fixed connectivity problems with serial devices using baudrate 19200 Version 1.0.2 w/o - Thursday, 2016-09-29 - fix: Tell device(s) to write DAC cal. value to EEPROM after it has been set Version 1.0.1 w/o - Friday, 2016-09-23 - new: New button to perform a reboot from remote - new: Added oscillator calibration dialog - fix: Timeout error window should only be shown once Version 1.0.0 w/o - Friday, 2016-09-16 - fix: Show hint for VLAN when configuring PTP Power Profile - fix: Automatically set delay mechanism to E2E for PTP Unicast - fix: Automatically deactivate hybrid mode for IEEE 802.3 - fix: Automatically set request interval to 1/s for P2P mechanism - fix: Removed "Receivers" from model group names - fix: Fixed compare function for MRS status - fix: Fixed serial connection handling on lower baud rates - fix: Do not show GNSS/DCF status strings for other devices Version 0.9.8 N2x - Wednesday, 2016-08-31 - fix: Send GPS_AUTO_OFF when connection is closed - fix: Corrected validation of PTP Grandmaster ID Version 0.9.7 N2x - Tuesday, 2016-06-21 - fix: Multicast Slave is now available for older firmware versions Version 0.9.6 N2x - Monday, 2016-06-20 - new: Release version for N2x only, built without PCI/PCIe support Version 0.9.5 RC - Friday, 2016-06-17 - new: Now supports user captures - new: Now supports event log - new: Added minimize buttons Version 0.9.4 RC-TCR - Friday, 2016-06-10 - new: Now supports IRIG input settings - new: Now supports IRIG raw data (IRIG status) Version 0.9.3 RC - Wednesday, 2016-06-08 - new: Now supports PCI/PCIe devices under Windows (requires DKWIN) Version 0.9.2 RC-n2x - Wednesday, 2016-06-08 - new: Added serial parameter detection functionality Version 0.9.1 RC-n2x - Tuesday, 2016-06-07 - new: Initial buildClose @--- Meinberg Device Manager Release Notes: last changes on top ---
