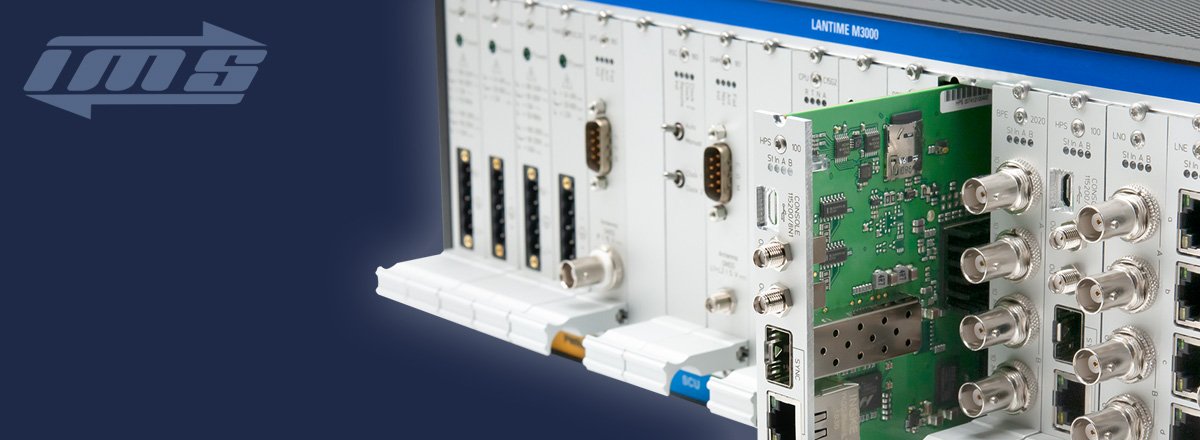

IMS - Modular Synchronization
Solutions for Time and Frequency Synchronization

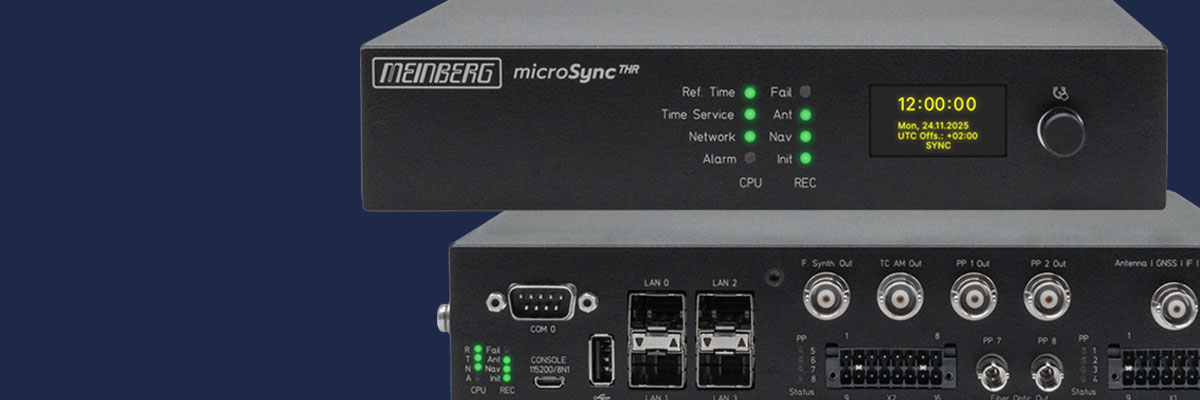

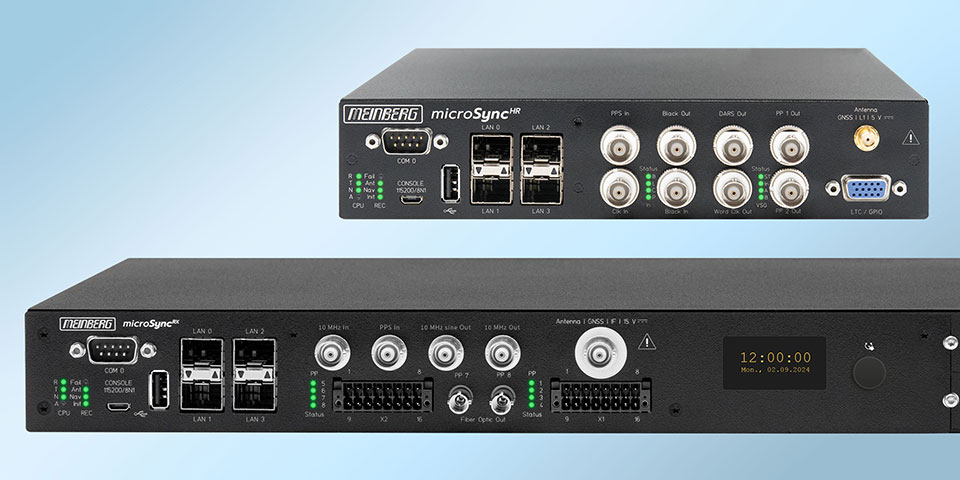

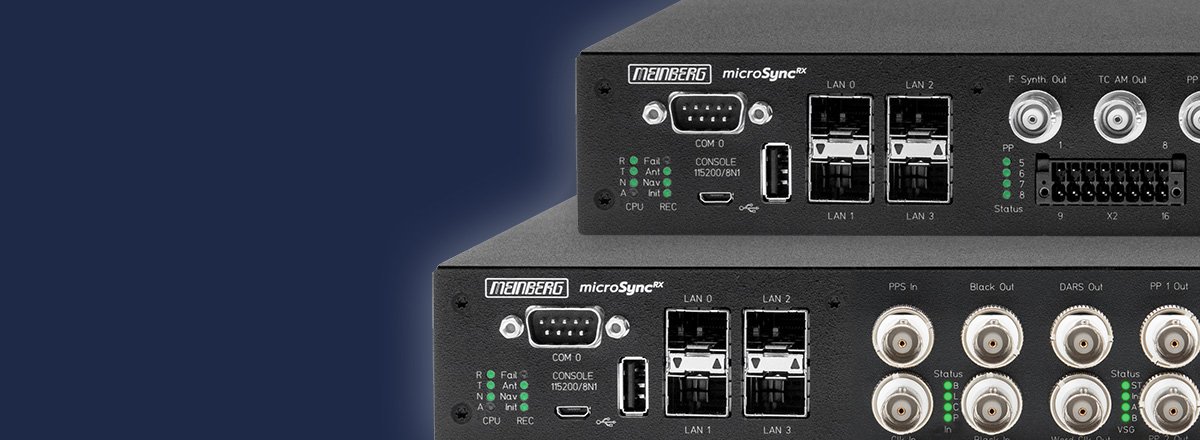

microSync
Powerful IEEE 1588 PTP Grandmaster / NTP server
The microSync family is Meinberg's new series of compact synchronization solutions. There are multiple variants and
form factors available, including rackmount (both half-rack and full 19”) as well as railmount chassis models. The
half-rack microSyncHR models and the railmount microSyncHS products impress with their compact design and a high port
density.
IMS - LANTIME M1000
Versatile and Modular Solution for Time and Frequency Synchronization Application in 1U Housing
The 1U chassis has two power supply slots, optional two clock-module slots, a CPU slot and four (three in case of a second
reference clock) slots for additional input and output modules. Adding a second clock module and a second power supply
transforms the IMS - M1000 into a fully redundant solution. Both, wide range AC and a 20-72 VDC power supply model can be
mixed and matched as required.
Featured Products

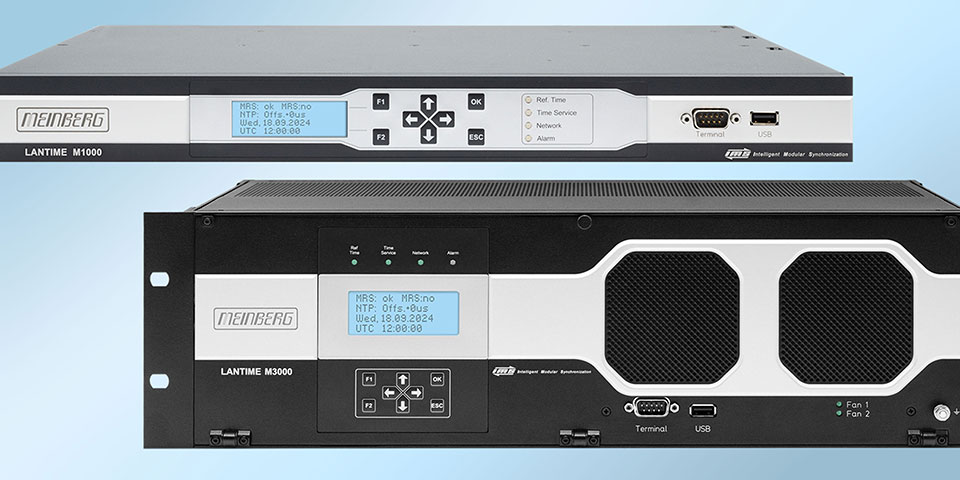

Customized Time and Frequency Systems
Time and Frequency for Industries, Power Plants, Automation and Telecommunication
The variety of inputs/outputs makes our time code receivers the best choice for a broad range of applications, including
time and frequency synchronization and measurement of asynchronous time events.
Bus Level Products

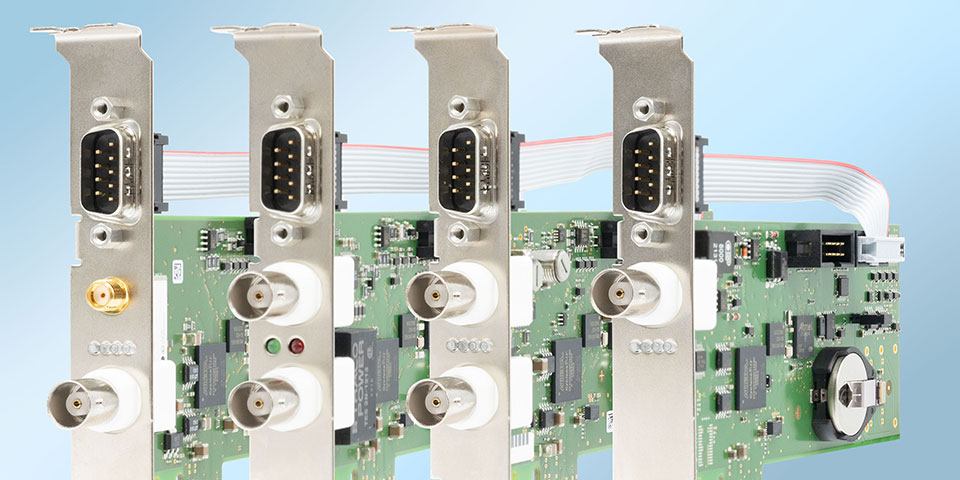

PCI, PCI Express and USB Radio Clocks
Meinberg reference clocks can be used to build your own time server or to upgrade an existing system.
All Meinberg receivers with a serial or USB interface can also be used with NTP as a highly accurate
hardware clock. They are all compatible with the NTP reference implementation, which includes our clock
drivers supporting all our products on the most popular operating systems.
Meinberg Software
Meinberg PTP Client
IEEE 1588-2008 Client Software for Windows and Linux
The Meinberg PTP Client allows to synchronize the time of Microsoft Windows and Linux servers and desktop PCs by implementing a full
IEEE 1588 ordinary clock stack with software- and hardware-timestamping support.
MPS v2 - Meinberg Protocol Simulation
NTP / PTP Simulation Software
The simulation software offers the possibility to simulate time synchronization devices, such as
NTP Server and Clients or PTP Grandmaster and Slaves in your existing network infrastructure.
