IMS - Modular Synchronization: Intelligent Modular Time and Frequency Synchronization

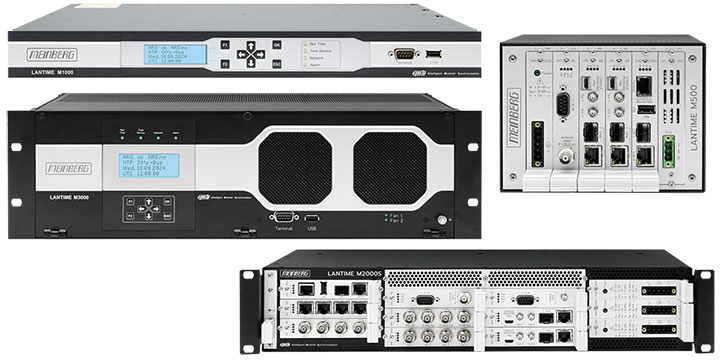

Product Image IMS - Modular Synchronization

Meinberg's IMS Series (Intelligent Modular Synchronization) offers built-in redundancy for synchronization sources and power supplies in combination with highly modular slot-based chassis, which support hot-swapping and field expansion capabilities.

The design of our IMS enclosures allows to use up to four power supplies (both AC and DC variants can be mixed and matched), two time code receivers in combination with a signal switch module, a CPU board and up to ten I/O slots.



Overview: IMS - Modular Synchronization

Rackmount Systems
A Versatile and Modular Solution for Time and Frequency Synchronization Applications in a 19-Inch Housing

The new LANTIME IMS series is a field-upgradable and extremely flexible system that covers your synchronization needs—today and in the future.

An IMS base chassis includes a power supply, a receiver unit, a management and NTP server module (LAN-CPU), as well as additional slots for input and output modules.

  • LANTIME IMS - M1000: Four slots for expansion cards
  • LANTIME IMS - M2000: Six slots for expansion cards
  • LANTIME IMS - M3000 / M4000: Ten slots for expansion cards

Redundant power and receiver solutions are possible for the following models of our IMS series:
  • LANTIME IMS - M1000: Two power supplies and two receivers
  • LANTIME IMS - M2000: Up to three power supplies and two receivers
  • LANTIME IMS - M3000 / M4000: Up to four power supplies and two receivers

A Time and Frequency Synchronization Platform in a 19-Inch Rackmount Chassis
IMS Modules
All I/O slots (MRI, ESI and I/O) support any combination of I/O output modules. The selection of already available IMS output modules provides a stunning selection of output signals, but will be expanded in the future to add more signals and physical interfaces as needed.
Power Supplies, Input Signals and Output Signals for Meinberg IMS - Systems
