DCF Antennas / Accessories:

Our Longwave Radio Receivers will be shipped with outdoor or indoor antennas, antenna cable an a wide range of accesories.

Overview: DCF Antennas / Accessories

AV4
DCF77 Antenna distributor, (4-port, external)

DCF77 Antenna Amplifier/Diplexer

AV5
DCF77 Antenna distributor, 5-port, internal (for use in BGT systems)

DCF77 Amplifier/Diplexer

BLV
DCF77 Amplifier with integrated overvoltage protection

Surge Voltage Protector for coaxial Lines in Plastic Case for Indoor Mounting.

AI01
DCF77 Indoor Antenna

DCF77 indoor antenna AI01 in plastic housing. Ferrite rod with winding. Remotely powered RF amplifier (no power cable required)

The AI01 supports antenna-receiver distances of up to 300m with standard RG58 cable. When the antenna cable is more than 300m lenght an antenna amplifier is needed.

AW02
DCF77 Outdoor Antenna

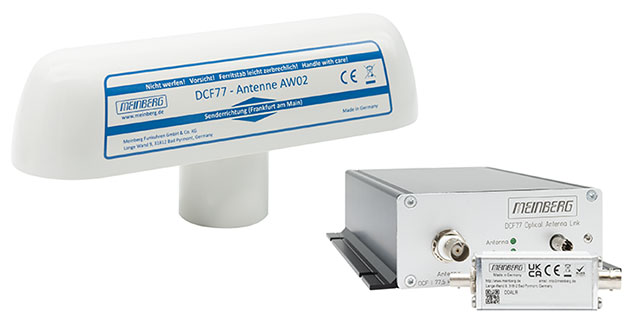

DCF77 Outdoor Antenna AW02 for all Meinberg DCF77 (AM and PZF type) longwave radio receivers.

AW02-60
60 kHz Outdoor Antenna

Long Wave Outdoor Antenna AW02-60 for all Meinberg MSF and WWVB long wave radio receivers.

MBG S-PRO
Surge Voltage Protector for DCF77 Receivers

Attachment plug with replaceable gas discharge tube for coaxial signal interfaces
Connection: N connector female/female. The MBG S-PRO set includes a surge voltage protector (Phoenix CN-UB-280DC-BB) and a mounting bracket.

DOAL

DOAL is an DCF77 Optical Antenna Link set for connecting a Meinberg DCF77 antenna to a Meinberg PZF or DCF receiver via an optical fiber.
