TTL / Sine Signal Distribution:TTL Signal Distribution Units, easily diplex or multiplex your TTL Signals with Meinberg TTL Signal Distribution Units. Rack or DIN Rail mount available.
Overview: TTL / Sine Signal Distribution

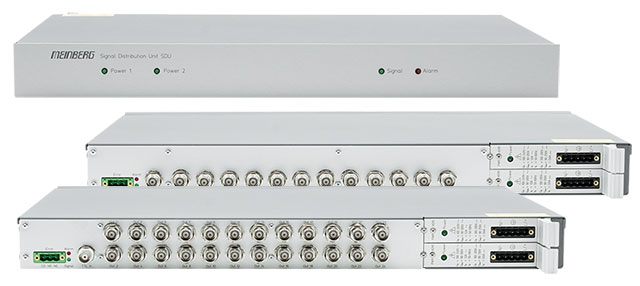

SDU
Signal Distribution Unit for PPS, 10 MHz and IRIG Signals Meinberg SDU devices are the simplest and most convenient way to add more buffered timing signal outputs to your distribution rack. The SDU base chassis can be ordered with one or two distribution modules, each providing twelve additional IRIG AM, DCLS, or fiber optic signals.
SDU/SIN
Frequency Sine (1-25 MHz) Distribution Unit The SDU/SIN is a distribution unit, designed to provide 12x or 24x sine wave output signals with low additive phase noise (1-25 MHz) via BNC female connectors.
SDU/EFB/MP
Signal Distributor Unit for E1 / T1 Telecom Signals The SDU/EFB signal distributor unit is a signal diplexer that allows to connect up to 24 devices to one E1/T1 sync output. This is a very compact and cost effective way to increase the number of E1/T1 ports available for synchronizing telecom switches and multiplexer as well as other devices that require a 1.544 or 2.048 MBit/s reference.
DI/BGT
TTL Signal Diplexer in modular 3U Case
Distribution Unit for TTL pulses and frequencies input and outputs in modular case:
|
