SDU/SIN: Frequency Sine (1-25 MHz) Distribution Unit

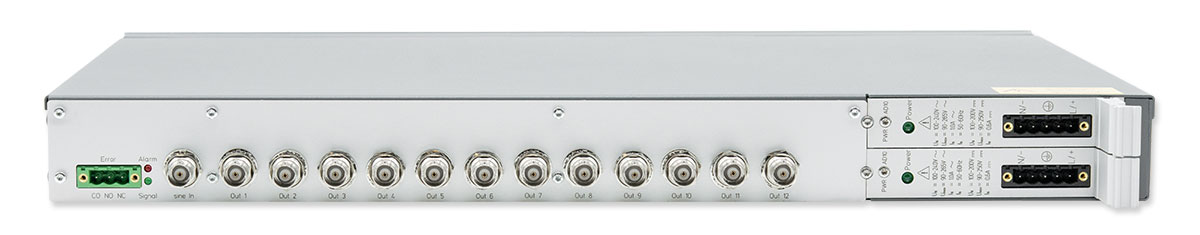

The SDU/SIN is a distribution unit, designed to provide 12x or 24x sine wave output signals with low additive phase noise (1-25 MHz) via BNC female connectors.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Maximum of 24 outputs in a 1U chassis (2x 1:12 distribution)
  • Status LEDs for the power supply units and error relays for signal inputs.
  • One or two distribution modules

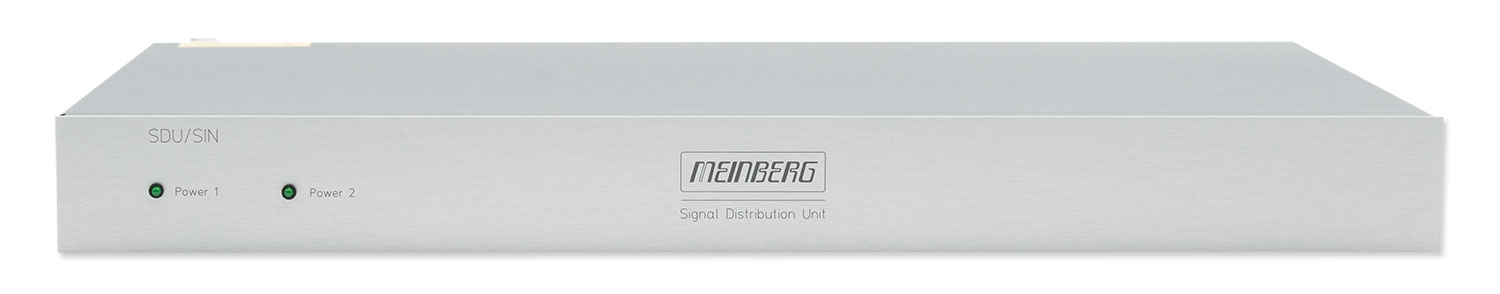

  • Compact 1U housing, 19-inch rack mount option




Product Description



Characteristics

Input signal 1-25 MHz sine wave, - 8 to + 8 dBm, BNC female
Output signal 1 - 25 MHz sine wave into 50 Ohm, BNC female, Gain 0 dB
EMC Directives IEC/EN 61000-6-3 Emission standard for residential, commercial and light-industrial environments
IEC/EN 55032 Electromagnetic Compatibility of Multimedia Equipment
IEC/EN 61000-6-2 Immunity standard for industrial environments
IEC/EN 55024 Immunity standard for information technology equipment - limits and methods of measurement
Operating Voltage PWR-AD10: 100-240 V AC (50 - 60 Hz) / 100-200 V DC
PWR-DC20: 20-60, V DC
Also available as redundant combination
Form Factor 19 inch multipac metal case 1U/84HE
Power Supply Unit PSU AD10
UN 100 - 240 V AC
Umax 90 - 264 V AC
Pmax 15 W
-------------------------------------------------
UN 100 - 200 V DC
Umax 90 - 240 V DC
Pmax 15 W

PSU DC20
UN 48 V DC
Umax 20 - 60 V DC
Pmax 15 W
Physical Dimensions 483mm x 43,7mm x 285mm (width x height x depth)
Protection IP30
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Technical Support Meinberg offers free lifetime technical support via telephone or e-mail.
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
