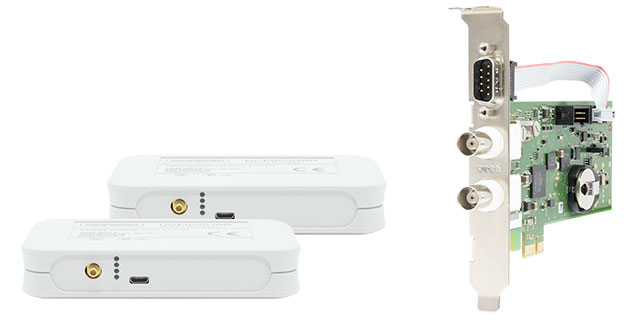

PCI / USB Clocks: Low Frequency Receivers for Computers

The board PZF180PEX is designed as a low profile board for computers with PCI Express interface. The rear slot cover integrates the antenna connector, a BNC connector for modulated time codes, a 9pin D_SUB male connector and two status LEDs. With this standard height bracket you can use the D_SUB connector for I/O signals like RS-232 - PPS and PPM and you can use this interface for firmware updates.

The PZF180PEX will be delivered with a low profile bracket. You can mount this part instead of the standard bracket, to run the PZF180PEX in computers with smaller housing (e.g. 1U server).

The DCF600USB is Meinberg's compact solution for synchronizing the clock of the PC that it is directly connected to. This DCF77 radio-controlled clock features an integrated ferrite antenna, and can also be operated using an external antenna in locations where reception is less favorable.

The MSF600USB is a MSF Radio Clock for USB in a compact plastic housing with an integrated MSF antenna, an (optional) external antenna can be connected to compensate degraded reception quality. This device is a perfect alternative for synchronizing computer systems where no PCI slot or serial port is available for time synchronization.
