Receivers and Generators: Long Wave receiver for local time signal transmitter

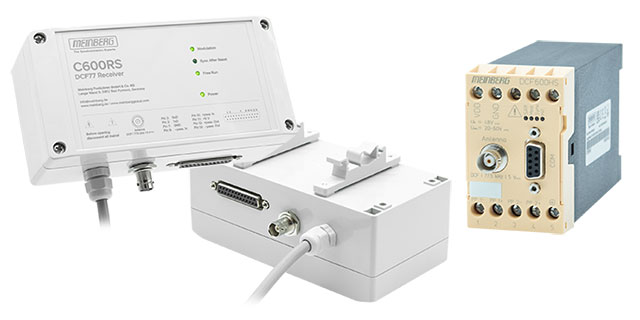

Serial DCF77 radio clock with integrated power supply and free running clock in plastic housing and integrated power supply (incl. antenna and 5 m coax cable)

The DCF600HS is Meinberg's most compact DIN rail-mounted DCF77-synchronized radio-controlled clock. An RS-232 interface is used to configure the system via a PC or laptop and also allows easy serial transmission of date and time information to end receivers. The DCF600HS also features optocoupler-isolated programmable signal outputs.

The GEN170TGP generates a DCF77 compatible signal with programmable date and time information. So it is possible to check the correct funktion of a radio clock or decoding software at a specific time. GEN170TGP is a set of equipment composed of a GEN170, a power supply and the additional DCF77 simulator SIM77P, all installed in a metal desktop case and ready to operate. A DCF77 radio clock can be connected directly via the rear panel antenna output connector. The interfaces and signals provided by GEN170 and SIM77 are accessible via connectors in the rear panel of the case.
