C600RS: DCF77 radio clock with serial RS232 interface


Serial DCF77 radio clock with integrated power supply and free running clock in plastic housing and integrated power supply (incl. antenna and 5m cable)

Key Features

Years of warranty: 2 RoHS compliant




Product Description

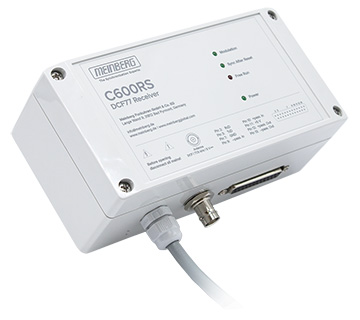

The radio remote clock C600RS has been designed for applications where only the serial interface is used to transmit information on date and time to other devices. The clock has an enhanced LF receiver and is manufactured using surface mounting technology (SMT). The elevtronic assembly is mounted in a plastic case with four LEDs in the front panel which let the user monitor the clock's status.

RS232 interface and 20mA input/output circuits. Pulse per second and pulse per minute. These pulses are made available at the DB25 connector via optocoupler outputs. The P_SEC pulse is also available with RS-232 level (-3..12V/+3..12V).



Characteristics

Type of receiver Narrowband straight receiver with automatic gain control, Bandwidth: approx. 40Hz
Type of antenna Scope of supply includes an active ferrite antenna AI01 and 5m of RG174 coaxial cable with BNC male connectors.
Option: AW02 with RG58 and patch cord, other length of cable
Status info Modulation and field strength visualized by LEDs
Free running state visualized by LED after switching to free running quartz clock mode
Reception Control Multiple check of received time telegram
Plausibility control by using two complete time telegrams
Pulse outputs Pulse per second and pulse per minute (optocoupler), pulse width: 200 msec
Interface Two independent serial RS232 / 20mA interfaces, configurable
Data format of interfaces Baudrate: 600, 1200, 2400, 4800, 9600, 19200 baud
Framing: 7E1, 7E2, 8N1, 8N2
1 active/passive 20mA current loop output (selectable)
1 active/passive 20mA current loop input (selectable)
Output string: 32 ASCII characters with date, time and status information
Physical dimensions 57mm x 160mm x 80mm (height x width x depth)
Electrical connectors 25 pin sub D female connector
BNC female connector
power cord receptacle
Power supply 230 VAC/50Hz
Optionally other supply voltages are possible - 12 or 24 VDC for example.
Backup battery type In case of supply voltage failure the on-board RTC keeps the time based on XTAL for more than 150 hours (buffer capacitor)
Optional: lithium backup battery (life time: 10 years)
Current consumption ca. 20mA
Driver / Software Software and Driver free of charge for common Operation Systems like Windows, Novell and UNIX (Linux) on USB Storage or as Download on Meinberg Software Download Page.
Form Factor Rolec TBA 084, IP40 protected
Ambient temperature 0 ... 50°C / 32 ... 122°F
Humidity Max. 85%
Scope of supply Scope of supply includes an active ferrite antenna AI01 and 5m of RG174 coaxial cable with BNC connectors.
Option: AW02 with RG58 and patch cord, other length of cable
Holder for 35mm rail mount
RoHS-Status of the product This product is fully RoHS compliant
WEEE status of the product This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself.
