GOAL-S: GPS Optical Antenna Link - Single Mode



GOAL-S is a GPS Optical Antenna Link - Set for connecting a Meinberg GPS antenna/converter (GNSS | IF | 15 V DC) with a Meinberg GPS receiver via a Single-Mode fiber.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • large antenna cable distances - up to 20km. using a continuous connection with a fiber type of category OS2 (0.4dB/km)
  • no destructive overvoltage via the antenna cable
  • no unintentional monitoring possible via optical fiber




Product Description

The GOAL-S-R module is connected to the GPS antenna input of the receiver via a coaxial cable at receiver side and can be mounted directly or close to the receiver. The GOAL-S-A module is mounted inside the building and is connected to the Meinberg GPS antenna/converter unit via a coaxial cable.

  • long antenna cable runs possible (up to 20 km)
  • no danger caused by overvoltage damage via the antenna cable
  • tap-proof security communication through fiber optic connection

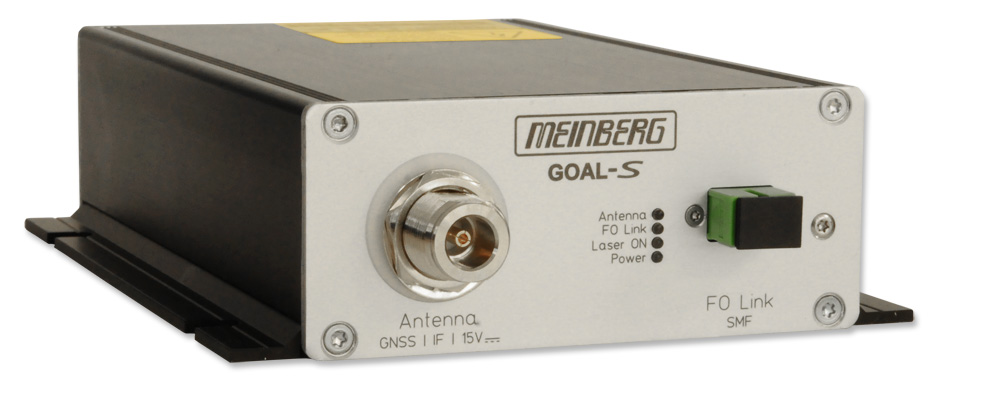

The GOAL-S/R module installed at receiver side is powered by the Meinberg GPS-IF receiver via the coaxial cable. The GOAL-S/A module, installed on the antenna side, requires an external power scource for its own power supply for operation, as well as for powering the connected antenna. An unconnected antenna and a short circuit on the antenna line are indicated by a status LED.

An additional LED indicates that the 10MHz reference is being received by the GPS-IF receiver with sufficient signal strength and that the fiber optic link is working properly. Only when these two status LEDs are green the built-in FP laser is switched on. The switching-on of the laser is indicated by another status LED.

The system is suitable for the subsequent extension of existing Meinberg GPS systems. The following GPS receivers are suitable for use with a GOAL-S Antenna Link:

and older receivers of the series GPS163, GPS164, GPS165, GPS167, GPS168, GPS169 and GPS170 (but not GPS166!).

When using the GOAL-S Antenna link in combination with the GPS signal converter GPSGEN1575, please note, that the function of connected GPS (L1) receivers from other manufacturers can not be guaranteed!



Characteristics

Type of Antenna Input for Meinberg GPS antenna (not included), antenna circuit 1000 V DC insulated
Optical Outputs SC-APC connector for connecting an E9/125µm SMF
  • wave length:
    1550nm (transmit), 1310nm (receive)
  • coupling optical power:
    max 1mW (0dBm), typ. 500µW (-3dBm)
  • optical input power:
    min. 1µW (-30dBm)
Electrical Connectors
  • SC-APC connector (FO Link)
  • N-Norm socket (Meinberg GPS-IF Receiver)
  • power supply via 5pol. DFK connector (GOAL-S/A only)
  • ground terminal via 6.3mm flat plug (GOAL-S/R only)
Operating Voltage GOAL-S/A: 100-240 V AC / 50/60Hz
optional: 20-60 V DC
power consumption: 5W max.
Form Factor GOAL-S/A: black eloxadized aluminium housing, with aluminium front and back wall

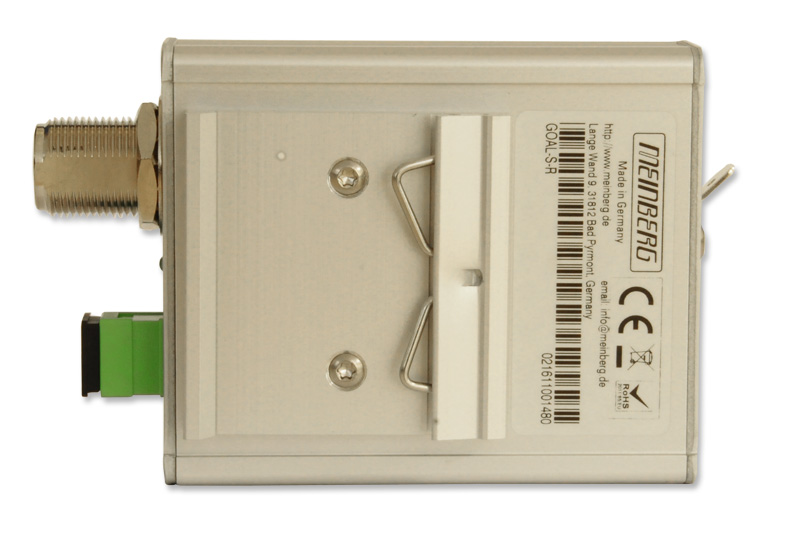

GOAL-S/R: anodized aluminum housing with aluminum front and back wall with clamp for 35mm DIN-railmount
protection class: IP30
Physical Dimensions GOAL-S/A: 44mm x 105mm x 165mm (height x width x depth)
GOAL-S/R: 28mm x 69mm x 85mm (height x width x depth)
Supported Temperature -25 ... 65° C
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
