GPS EX-PROOF: Explosion proof active GPS L1-Antenna


Explosion proof active GPS L1-Antenna for areas where hazardous substances may occur.

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • Explosion proof according to EN IEC 60079-0:2018 / EN 60079-1: 2014
  • Pressure resistant housing with integrated 40 dB amplifier




Product Description

The Antenna is compliant to the ATEX-Directive 2014/34/EU and certificated for Zone 1, an area in which an explosive mixture is likely to occur in normal operation. The ATEX-Directive is an EU directive describing what equipment and work environment is allowed in an area with an explosive atmosphere.

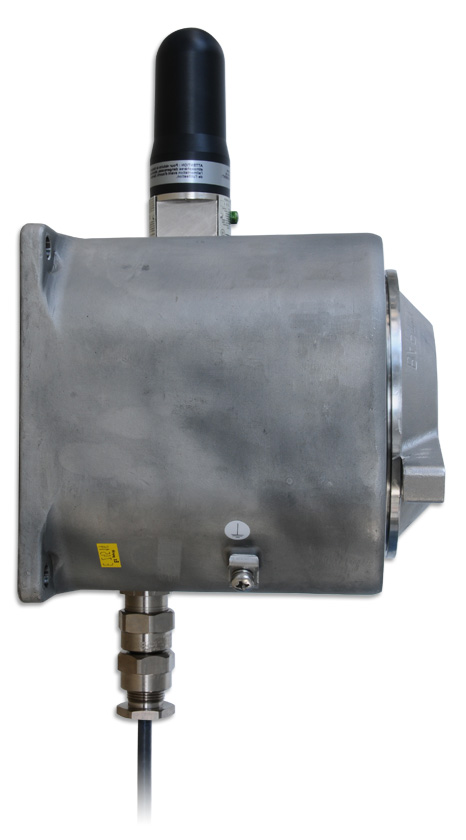

Meinberg's explosion proof antenna consists of a passive antenna and a stainless steel housing including a 40 dB amplifier. The stainless steel (AISI-316) housing which is resistant to many environmental impacts, such as sea salt, makes the antenna also suitable for use on offshore platforms.



Characteristics

Type of Antenna
  • Top centered installed passive antenna, Ex II 2G Ex d IIB T5 (ATEX)
  • with integrated 40dB amplifier
  • Voltage U = 3 - 16 V DC, Current I typ.= 20mA
Conformity
  • ATEX Directive 2014/34/EU
  • EMC Directive 2014/30/EU
  • RoHS Directive 2011/65/EU
    Equipment - General requirements
  • Explosive Atmospheres EN IEC 60079-0:2018
  • Explosive Atmospheres EN 60079-1:2014
    Equipment protection by flameproof enclosures
Antenna Connector Type-N connector
Form Factor
  • Ex d IIC (explosion proof enclosures)
  • Explosion proof according to EN IEC 60079-0:2018
  • Test certificate DEKRA 13 ATEX 0209
  • Pressure housing type TNCD 191918
  • Lid: closed / without disc
  • Dimensions:
    (outside): 190 x 190 x 180 (205) mm (W x H x D)
    (inside): 167 x 167 x 134 mm (W x H x D)
  • Material: AISI 316L / CF-3M
  • Surface: shot peened
Protection IP66
Product Weight 16 kg
Supported Temperature -40°C to +60°C
Warranty Two-Year Warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
