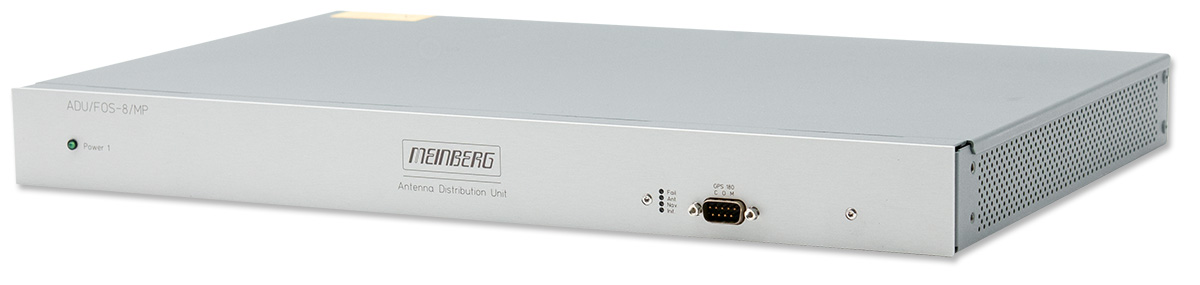

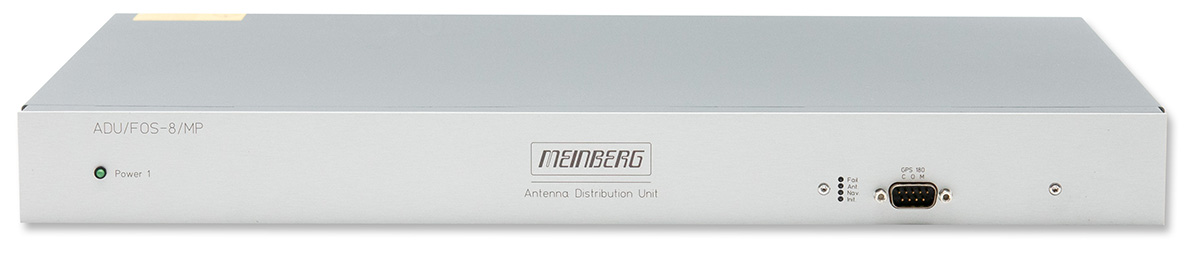

ADU/FOS/MP: Fiber-optic GPS antenna splitter for secure signal transmission over long distances
Key Features
- large antenna cable distances - up to 10km. using a continuous connection with a fiber type of category OS2 (0.4dB/km)
- no destructive overvoltage via the antenna cable
- no unintentional monitoring possible via optical fiber
- Option: Redundant power with AC/DC and/or DC power supplies
Product Description
The ADU system must be mounted inside the building and connected to the Meinberg GPS converter antenna via a coaxial cable.

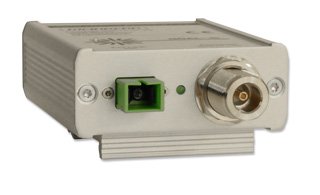

The GOAL-S-R module is connected on receiver side to the GPS antenna input of the receiver via a coaxial cable and can be mounted close to the connected receiver.
The two modules (ADU and GOAL-S-R) are interconnected via E9/125µm single-mode fiber. This type of antenna connection has the following advantages:
- long antenna cable runs possible (up to 10 km)
- no danger caused by overvoltage damage via the antenna cable
- tap-proof security communication through fiber optic connection
The GOAL-S/R modules installed on receiver side are powered by the Meinberg GPS-IF receiver via coaxial cable. The ADU/FOS/MP system installed on antenna side requires an externally supplied voltage for its own power supply as well as for feeding the connected antenna through the built-in GPS receiver.
The system is suitable for the subsequent extension of existing Meinberg GPS systems. The following GPS receivers are suitable for use with a GOAL-S Antenna Link:
and older receivers of the series GPS163, GPS164, GPS165, GPS167, GPS168, GPS169 and GPS170 (but not GPS166!).
Characteristics
Type of Antenna | Input for Meinberg GPS antenna, antenna circuit 1000 V DC insulated |

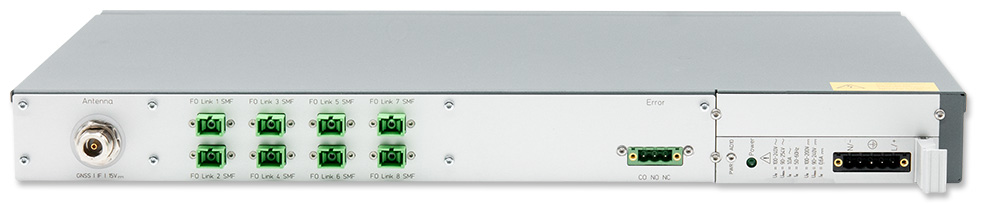

Optical Outputs | SC-APC connector for connecting an E9/125µm SMF
|
Electrical Connectors |
|
Operating Voltage | 100-240 V AC / 50/60Hz
100-200 V DC power consumption: 20W max. Option: DC power supply (20-60 V DC or 10-36 V DC) Power redundancy with AC/DC and/or DC power supplies |
Form Factor | ADU/MP: 19 inch metal chassis, 1 U/84 HP (Multipack)
GOAL-S/R: anodized aluminum housing with aluminum front and back wall with clamp for 35mm DIN-railmount protection class: IP30 |
Physical Dimensions | ADU/MP: 483 mm x 43 mm x 285 mm (width x height x depth) GOAL-S/R: 28mm x 69mm x 85mm (height x width x depth) |
Supported Temperature | 0 ... 50° C |
Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
Contents of Shipment | Included in delivery are: a pre-assembled antenna cable, a Meinberg GPS antenna/converter unit, two GOAL-S/R modules (receiver side) and product documentations on USB storage device. |
Warranty | Three-year warranty |
RoHS Status of Product | This product is fully RoHS-compliant. |
WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
