IMS-SCG: Studio Clock Generator
Key Features
-

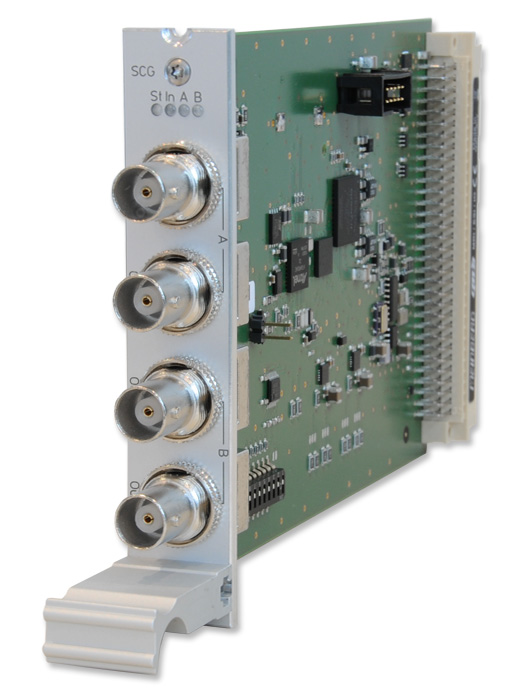

SCG-U: 4 x BNC outputs with configurable frequencies ( 2.5 V TTL into 75 ohm
- Wide range of programmable word clock rates between 24Hz – 12.288MHz
- Base Frequencies: 32kHz, 44.1khz and 48kHz
- Scales: 0.125, 0.25, 0.5, 1, 2, 4, 8, 16, 32, 64, 128, 256
- Base Frequency * Scale = Output Frequency
-
SCG-B: 1 x 25pin female connector, 4 x DARS
- IEC 60958-4 format, resolution 24bits, sampling frequency 48kHz - transformer-balanced
Product Description
This module has not only been developed for our IMS series, the SCG card can also be used in our 19 inch subrack and in a 1U Multipac chassis.

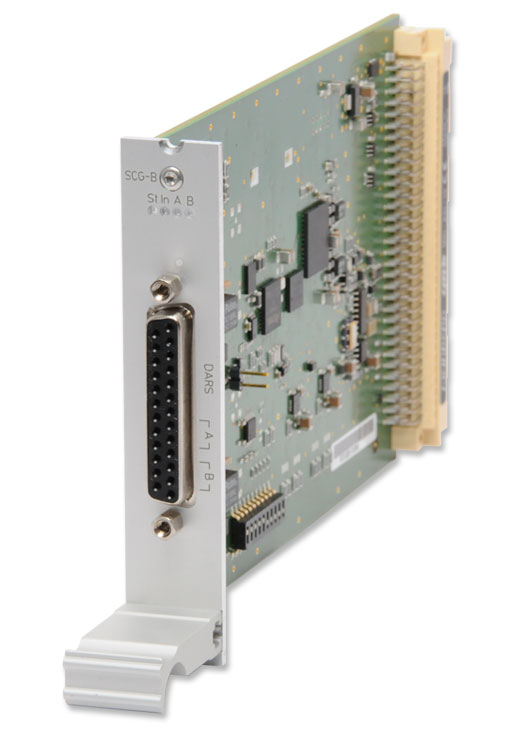

Option: SCG-B Studio Clock Generator Balanced
The SCG-B is an additional card for generating "Digital Audio Reference Signals" for studio applications. The 25pin D-Sub female connector provides four DARS outputs, which can be configured via the web interface.
Characteristics
Operating Voltage | 5 V ± 5%, @400 mA |
IMS Output Options | 4 x BNC (2.5V TTL into 75 Ohm) outputs with configurable frequencies
or 25-pin female connector, 4 x DARS, IEC 60958-4 format, resolution 24bits, sampling frequency 48kHz - transformer-balanced |
Supported Temperature | 0 to 50 °C / 32 to 122 °F |
Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
Warranty | Three-year warranty |
RoHS Status of Product | This product is fully RoHS-compliant. |
WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
Downloads
Short Info Sheet
Manuals
- Handbuch (deutsch) ims_scg-b.pdf als PDF: 1810KB - Stand: 07.Jun.2018
- Handbuch (deutsch) ims_scg-u.pdf als PDF: 1896KB - Stand: 07.Jun.2018
- Manual (english) ims_scg-b.pdf as PDF: 1800KB - Rev.: 2018-Jun-07
- Manual (english) ims_scg-u.pdf as PDF: 1888KB - Rev.: 2018-Jun-07
Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
- For drivers, SDKs, tools and utilities, please check our Download Section
