IMS-REL: Error Relais Module


This product is only compatible with Meinberg's line of modular IMS LANTIME systems.
Visit the IMS Information Page to learn more.

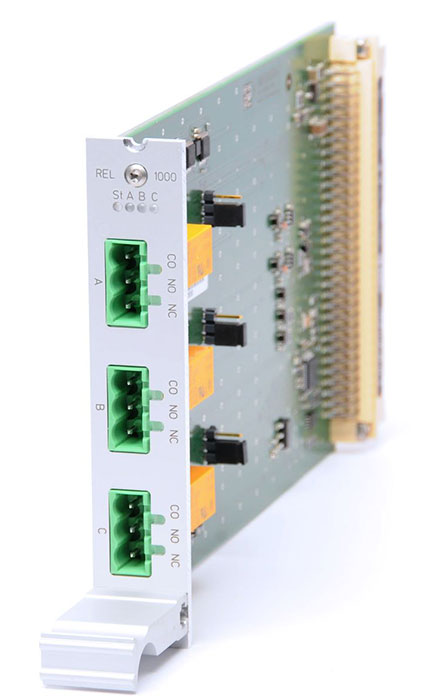

The REL1000 error relay module can be switched by various operating states (e.g.: Clock Not Sync).

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Monitoring the synchronization status of the used receivers
  • Optional: monitoring of PPS, 10 MHz, events (notifications)
  • Three-year warranty




Product Description

If the internal hardware clock is running synchronous to the source, the relay is switched to NO (Normaly Open) mode. In case of an error, the relay switches to NC (Normaly Closed) mode.

Depending on the hardware configuration of the IMS system, i.e. redundant with RSC module and two integrated reference clocks or with SPT module and only one reference clock, different relay states can be switched.

In redundant operation, the two clocks and the changeover unit are monitored as standard (CLK1 - relay A, CLK2 - relay B, RSC - relay C).

Optionally, other signals can also be monitored (10 MHz, PPS). The relays A + C can also be switched by notifications (events).



Characteristics

Status Indicators All LEDs red: Outputs disabled
All LEDs green: normal operation, outputs enabled
Single LED red: Indicates a faulty output or short circuit during normal operation.
Operating Voltage +5 V DC
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals


Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
