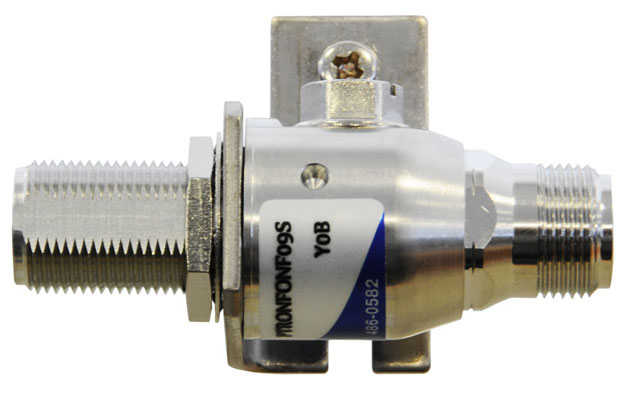

P-TRON: Surge Voltage Protector


Attachment plug with replaceable gas discharge tube for coaxial signal interfaces.
Connection: N connector female/female

The surge voltage protector for coaxial lines has to be installed in the antenna line. The shield has to be connected to earth as short as possible by using the included mounting bracket. P-TRON is equipped with two type-N female connectors. It has no dedicated input/output polarity or prefered mounting orientation.

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

This product has been discontinued and has been replaced with: MBG S-PRO

Key Features

Warranty Period (Years): 2 RoHS-compliant



Product Description



Characteristics

Frequency Range DC - 3.2 GHz
Nominal discharge surge current 50kA / Isn(8/20)µs
Multiple strike capability: 20kA 10 times
Response Time 100ns max.
Features Replacable gas discharge tube
Waterproof
Protection voltage: 90V
Grounding By included right angle connector bracket or ground bond conductor (not included) less than 3ft (1m) long and a minimum diameter of 10AWG/3,5mm²
Contents of Shipment Surge voltage protector and mounting bracket
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.
  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
