GPSANTv1: GPS Antenna/Converter Unit



The GPS antenna combines a planar antenna and a frequency converter, which translates the high-frequency phase-modulated spread spectrum signal of the GPS system to an intermediate frequency. This way a standard coaxial cable (e.g. RG58) can be used for the connection with the GPS clock and a distance of up to 300 meters (with RG58) or even 700 meters (with a low-loss cable type like RG213) between receiver and antenna is possible without additional amplifier.

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

This product has been discontinued and has been replaced with: GPSANTv2

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Preformed Cable
  • Included GPSANTv2 antenna uses downconverter technology to enable long transmission routes of up to 1100 m (1200 yards)
  • Holder for Wall Mounting




Product Description

GPS reception can only be reliable if the antenna has a free view of the sky, therefore it needs to be installed at a suitable location, e.g. on a rooftop. The unit is remotely powered by the connected GPS receiver (via the antenna cable) and can be used only with GPS equipment from Meinberg.

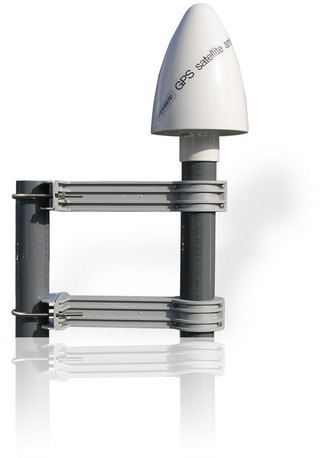

Mounting material (plastic pole and holders, clamps for wall or pole mounting) is shipped with all Meinberg GPS antennas for easy installation. A standard cable of 20 meters is included. Please specify your order, if you need a different cable lenght.



Characteristics

Frequency Range 1575.42 MHz (GPS L1 / Galileo E1 band)
Antenna Connector Type-N connector
Bandwidth 9 MHz
Operating Voltage 15 V (nominal, from receiver), +/- 3 V
Form Factor ABS plastic case for outdoor installation
Physical Dimensions Click here for dimensioned drawing
Product Weight 1.6kg with mounting kit
(Antenna cable 0.1kg / per meter)
Supported Temperature -60 °C to 80 °C (-76 °F to 176 °F)
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
