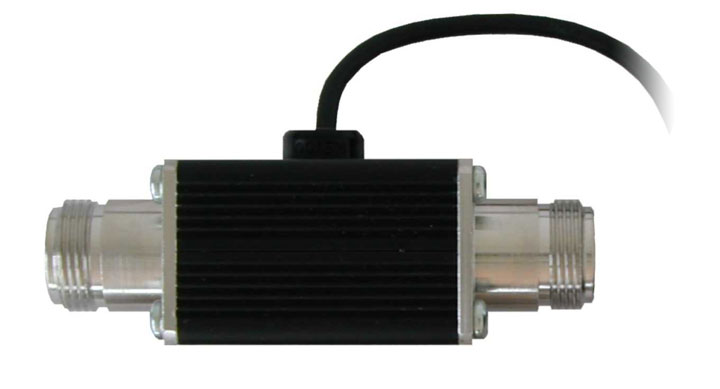

CN-UB/E: Surge Voltage Protector


Attachment plug with surge voltage protection, for coaxial signal interfaces with floating shield.
Connection: N connector female/female

The surge voltage protector for non earthed coaxial lines has to be installed in the antenna line. The 1.5m wire has to be connected as short as possible to earth. It is equipped with two type-N female connectors

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

This product has been discontinued and has been replaced with: MBG S-PRO

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • Surge Voltage Protector for coaxial Lines
  • Easy mounting
  • Earth isolated




Product Description



Characteristics

Nominal discharge surge current 5kA / Isn(8/20)µs
Response Time 100ns max.
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.
  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
