AK03: DCF77 Indoor Antenna (compact)


DCF77 Indoor Antenna AK03

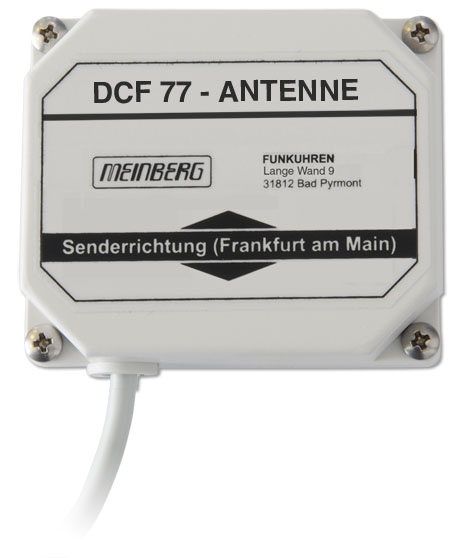

DCF77 indoor antenna AK03 in plastic housing. Ferrite rod with winding. Remotely powered RF amplifier (no power cable required)

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

This product has been discontinued and has been replaced with: AI01

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • Stick Pad
  • Factory-assembled cable
  • Indoor Mounting
  • Plastic case




Product Description



Characteristics

Control Elements In case of stationary installation it is advisable to position the antenna in an optimal way. The case should be aligned at a right angle to the direction of the transmitter (Frankfurt). In normal applications it should be mounted with distance to solid steel and to TVs or computer monitors. When mounting the antenna near to metal the received signal may be deaden (attenuation), but the field-distortion causes an easier alignment of the antenna because of the ''nearly-360°-character''. In this case a function test is necessary.
Electrical Connectors Scope of supply includes 5m of RG174 coaxial cable with SMB or BNC connector for indoor mounting. Optionally the cable is available in all lenghts and with the required connectors.
Form Factor Unbreakable plastic case
Physical Dimensions 60mm x 50mm x 20mm (length x width x height)
Supported Temperature -25°C ... +65°C
Options Stick pad for mounting the case (e.g. on windows/furniture) option: case sealed with silicon (IP53)
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.
  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
