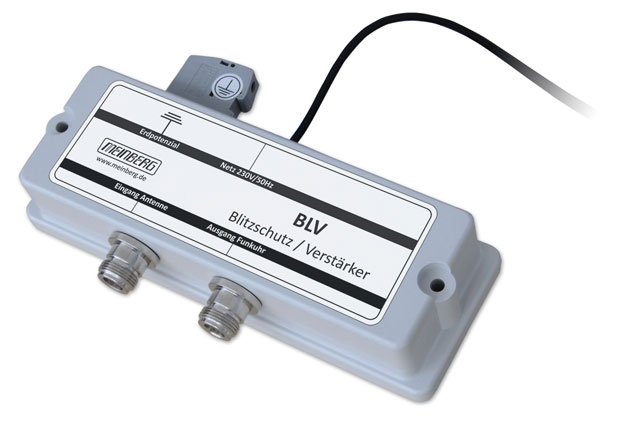

BLV: DCF77 Amplifier with integrated overvoltage protection


Surge Voltage Protector for coaxial Lines in Plastic Case for Indoor Mounting.

The surge voltage protector for coaxial lines has to be installed in the antenna line and sets the antenna shield to earthpotential. The output to the radio clock is isolated (dielectric strenght: approx. 4000V). It is equipped with two type-N female connectors.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Gain 20dB
  • Available as: Amplifier + Overvoltage Protector BLV




Product Description



Characteristics

Input signal 1 DCF77 Antenna
Gain 20dB
Electrical Connectors type-N
Power Consumption ca. 1W
Dielectric Strength approx. 4000V
Operating Voltage 230V/50Hz
Protection IP52
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals


Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
