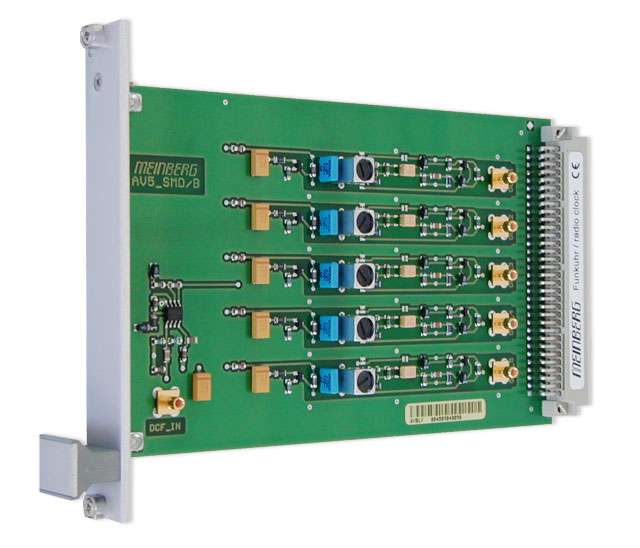

AV5: DCF77 Antenna distributor, 5-port, internal (for use in BGT systems)


DCF77 Amplifier/Diplexer

DCF77 Amplifier/Diplexer

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Available as: Amplifier + Diplexer AV5




Product Description



Characteristics

Input signal 1 DCF77 Antenna
Gain optional
Dimensions of the front panel 4HP/3U (20mm x 128mm)
Electrical Connectors SMB, BNC, type-N
Dielectric Strength approx. 4000V
Operating Voltage 230V/50Hz
Current Draw ca. 20mA
Board Dimensions 160 mm x 100 mm, 1,5 mm Epoxy
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.
  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
