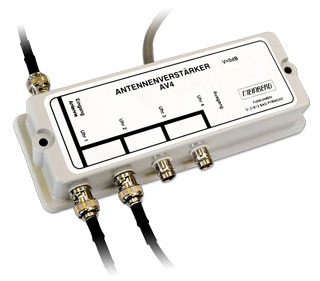

AV4: DCF77 Antenna distributor, (4-port, external)



DCF77 Antenna Amplifier/Diplexer

DCF77 Antenna Amplifier/Diplexer with 20dB gain. For connecting up to 4 DCF77 radio clocks to one DCF antenna. Can be ordered without gain for cascading.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Gain 20dB
  • Available as: Amplifier AV4/1, Amplifier + Diplexer AV4




Product Description



Characteristics

Input signal 1 DCF77 Antenna
Gain 20dB per Channel
Electrical Connectors SMB, BNC, type-N
Power Consumption ca. 1W
Dielectric Strength approx. 4000V
Operating Voltage 230V/50Hz

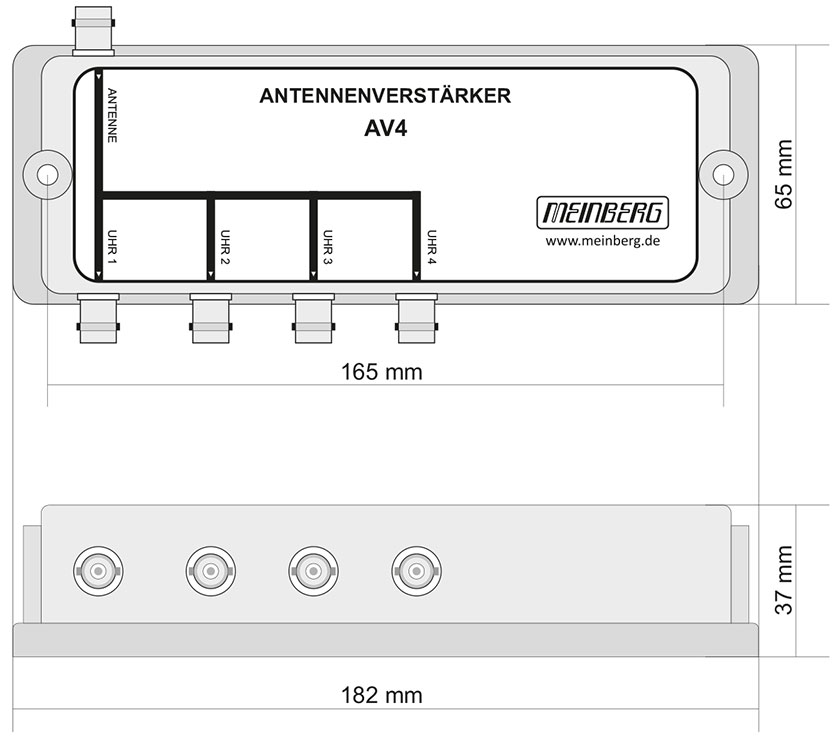

Physical Dimensions 182mm x 65mm x 37mm (W x D x H)
Protection IP52
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.
  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
