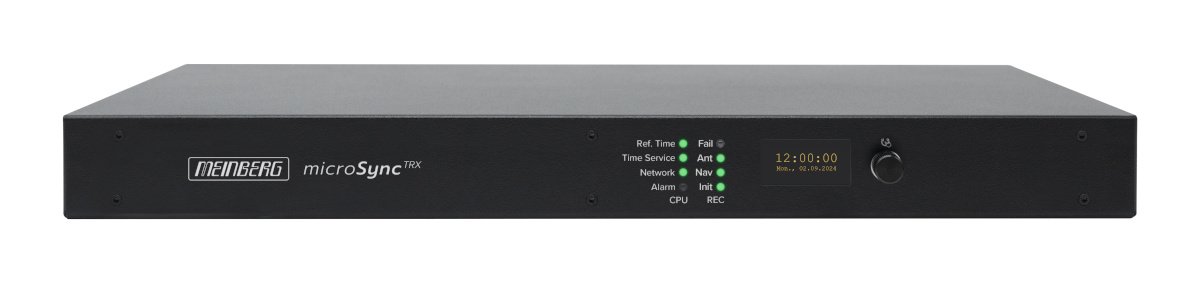

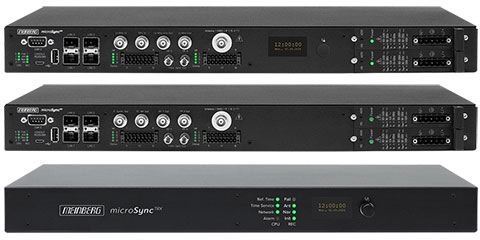

microSyncRX : Powerful IEEE 1588 PTP Grandmaster and NTP Server in a 19 inch Rackmount Enclosure
Key Features
-
Selectable Reference Time Sources:
-
GPS: Satellite receiver for the Global Positioning System
- Recommended for fixed-site applications -
GNS: Combined GPS/GLONASS/Galileo/BeiDou satellite receiver
- Recommended for both fixed-site and mobile applications -
GNS-UC: GPS and Galileo Satellite Receiver with Up-Converter for Meinberg GPS Antenna / Converter
- Recommended for both fixed-site and mobile applications
-
GPS: Satellite receiver for the Global Positioning System
- High Performance NTP Server (NTP & SNTP v2, v3, v4)
- Meinberg Device Manager for configuration and status monitoring
- IEEE 1588 PTP time server incl. IEC/IEEE 61850-9-3 & IEEE C.37.238
- Redundant power supply with AC or DC voltage
- Different oscillator options for advanced holdover performance

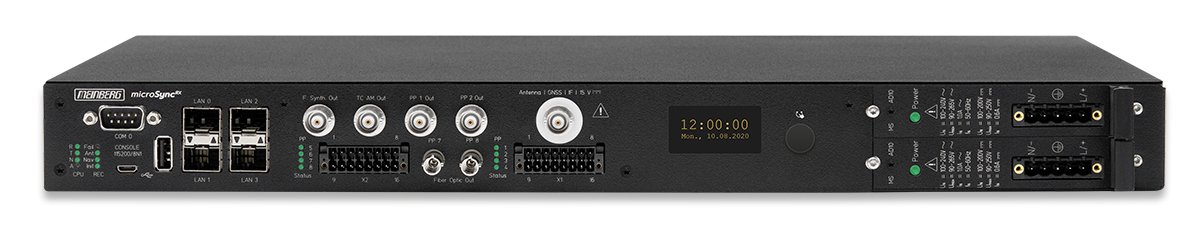

- Option: OLED display with rotary knob for initial setup
- All microSync models offer a wide range of multiple output signals, allowing synchronization of both network devices such as NTP clients and PTP slaves as well as directly attached synchronization clients with other electrical and optical signals.
Product Description
Providing two IEEE 1588 ports, the microSyncRX models are powerful GNSS synchronized PTP Grandmasters offering a high level of accuracy and supporting all major PTP profiles: Default, Power, Telecom (Frequency and Phase profiles), SMPTE, AES67/RAVENNA or IEEE 802.1AS profile.
All microSyncRX variants offer key features like multiple programmable output signals (two over fiber optical ST connectors), four Gigabit Ethernet interfaces and the ability to synchronize both NTP and PTP devices.
The sheer diversity of outputs and interfaces allows the microSyncRX to be deployed in a large range of industries and applications. Depending on industry requirements customers can choose from different variants to best suit their needs.
The variants are defined via the BNC connectors which can provide several I/O options.
For further information, please check out our datasheet:
Datasheet microSyncRX Series (PDF)
Characteristics
Supported PTP Profiles |
Default:
- IEEE 1588v2 (PTPv2) Power: - IEC/IEEE 61850-9-3 - IEEE C37.238-2011 - IEEE C37.238-2017 Telecom: - ITU-T G.8265.1 Frequency - ITU-T G.8275.1 Phase/Time - ITU-T G.8275.2 Phase/Time - DOCSIS 3.1 Broadcast: - SMPTE ST 2059-2 - AES67 Media Profile AVB/TSN: - IEEE 802.1AS |
Synchronous Ethernet | Master and Slave Capability
Compliant to ITU-T G.8261, G.8262 and G.8264 Ethernet Synchronization Messaging Channel (ESMC) |
Display |
OLED display option
Functions (system administration):
|
Network Protocols | IPv4, IPv6
NTPv3, NTPv4 PTPv2 IEC 62439-3 (PRP) DHCP, DHCPv6 DSCP IEEE 802.1q VLAN filtering/tagging IEEE 802.1p QOS SNMPv1/v2/v3 Remote Syslog Support (UDP) |
Optical Outputs | 2 x Programmable pulse outputs, fiber optic - ST connectors |
Interface | Single serial RS-232 interface |
Network Interface |
Gigabit Ethernet (GbE) - SFP:
LAN 0, LAN 1 Management 10/100/1000Mbit RJ45 or 1000FX NTP LAN 2, LAN 3 Management 10/100/1000Mbit RJ45 or 1000FX NTP / PTP |
Universal Serial Bus (USB) Ports |
USB Terminal
USB-to-serial console - Micro-USB Type B USB Host USB connector management CPU - USB Type A |
BNC Connectors | 4 x BNC female connectors for different output signals - e.g. programmable pulses, frequency synthesizer, timecode AM |
Terminal Connector |
16pin DMC X1
programmable pulses Error/Relay 16pin DMC X2 programmable pulse (TTL, isolated) programmable pulse (RS-422) Time Code DCLS (TTL, isolated) |
Oscillator Options | OCXO SQ
Holdover performance 1 day: ± 220 E-6 sec 1 year: ± 4.7 sec OCXO MQ Holdover performance 1 day: ± 65 E-6 sec 1 year: ± 1.6 sec OCXO HQ Holdover performance 1 day: ± 22 E-6 sec 1 year: ± 788 E-3 sec OCXO DHQ Holdover performance 1 day: ± 4.5 E-6 sec 1 year: ± 158 E-3 sec |
Power Consumption | Pmax = 30W |
Operating Voltage | Maximum voltage range: AC / DC: 90-265 V AC, 47-63 Hz / 90-250 V DC DC: 20–60 V DC |

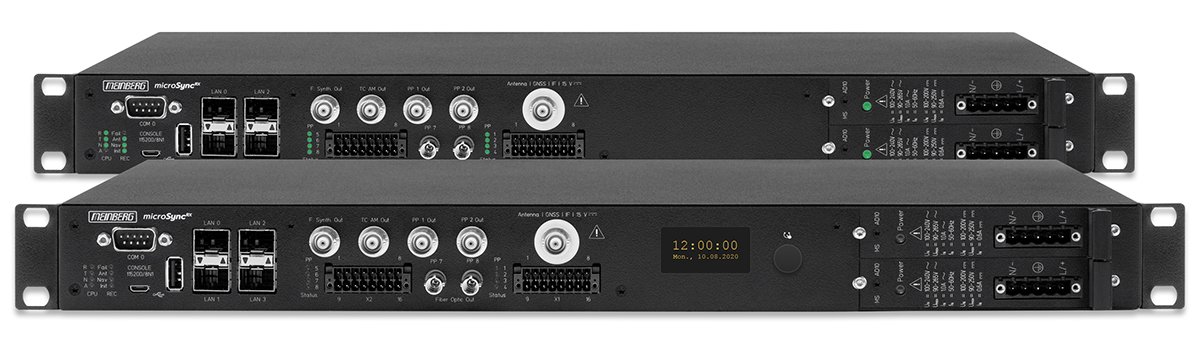

Form Factor | Housing Type: 19", 1HE 482,6 mm x 248 mm x 43 mm /19 inch x 9.76 inch x 1.69 inch (widthx depth x height) Material: Steel |
Atmospheric Pressure | 615 to 1600 hPa |
Operating Altitude | Up to 4000 m (13,123 ft) above sea level |
Protection | IP30 |
Supported Temperature | -20 °C to 55 °C (-4 °F to 131 °F) (operation) |
Storage Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
Supported Humidity | 5 % to 95 %, 40 °C, non-condensing |
Compliances |
|

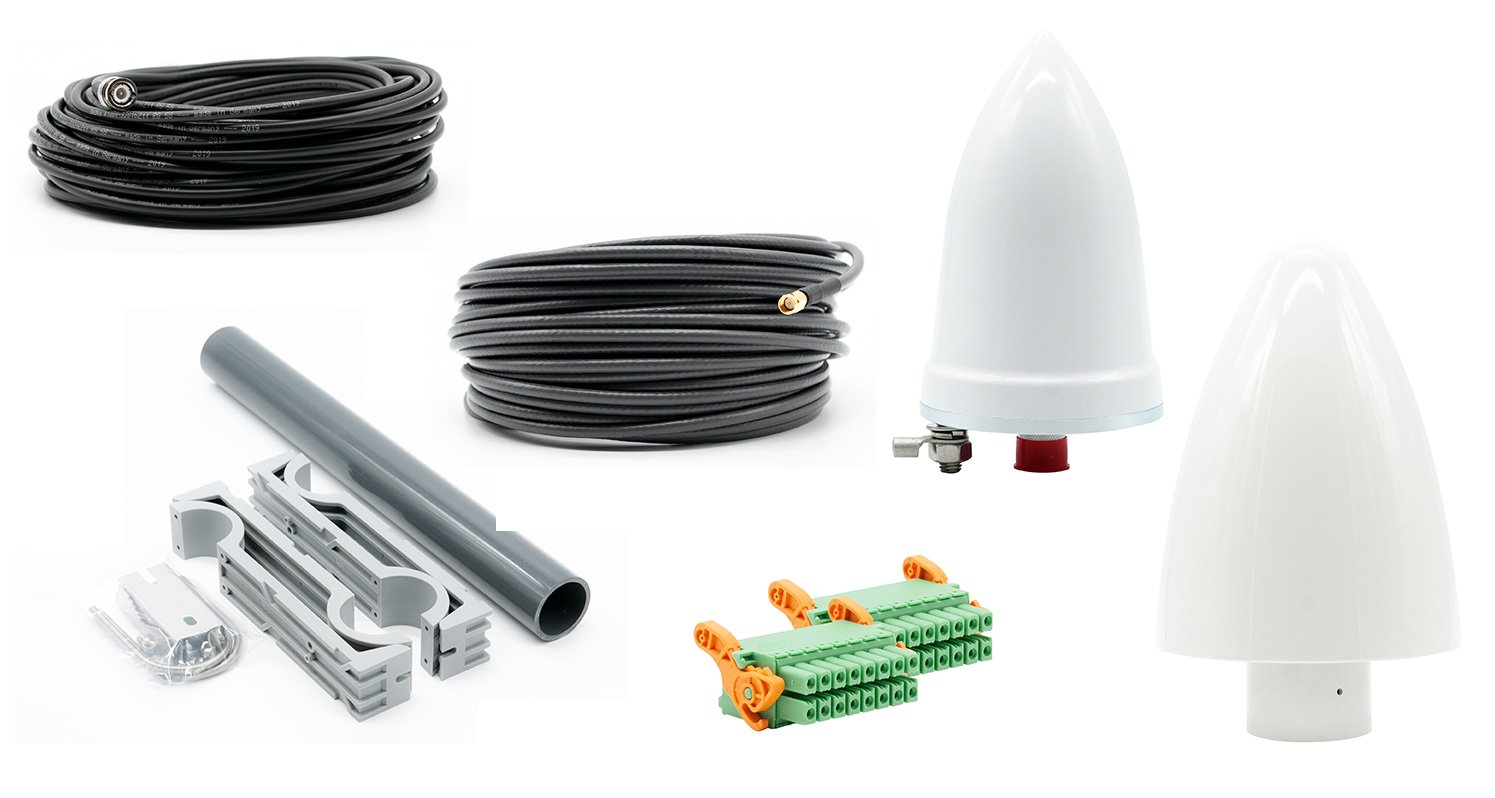

Contents of Shipment | Included in delivery is an outdoor antenna incl. mounting kit and pre-assembled antenna cable. |
Warranty | Three-year warranty |
RoHS Status of Product | This product is fully RoHS-compliant. |
WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
