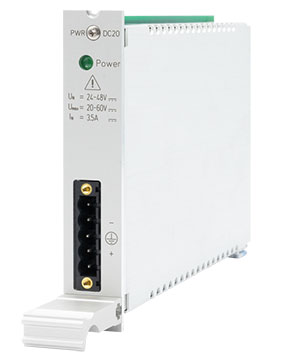

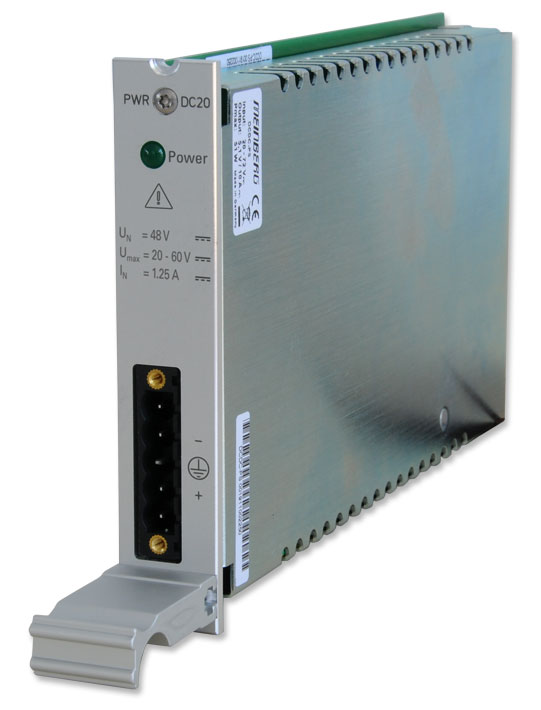

PWR-DC20: IMS Power Supply Unit 20-60 V DC


This product is only compatible with Meinberg's line of modular IMS LANTIME systems.
Visit the IMS Information Page to learn more.
The PWR-DC20 module for Meinberg's IMS platform accepts 20-60 V DC power and has been specifically designed to be used in Meinberg IMS systems. It is hot-swappable and can be combined with other IMS PWR modules to form a redundant power solution for an IMS system.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Power Supply 20-60 V DC
  • Hot Plug capabilities




Product Description

This module has been specifically designed for Meinberg IMS systems. It features a load sharing bus that enables multiple power supplies to jointly generate power for an IMS system. This avoids a system outage in case of a power supply failure or loss of a power source.

The PWR-DC20 can be combined with other power supply modules, for example a PWR-AD10, to use different input voltages from different power sources.



Characteristics

Hot Plug Feature It is possible to remove or install the power supply out of the terminal equipment during operation.
Status Info LED: green, diameter 5mm, on if output OK
Voltage

Rated Voltage Range:
UN = 24 - 48 V DC

Max. Voltage Range:
Umax = 20 - 60 V DC

Rated Current:
IN = 2.1 A

Fuse:
T8A/250V

Protective Class:
Class 1

Module Connectors Power Connector:
5pin DFK
Power Consumption Pmax = 50 W
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
