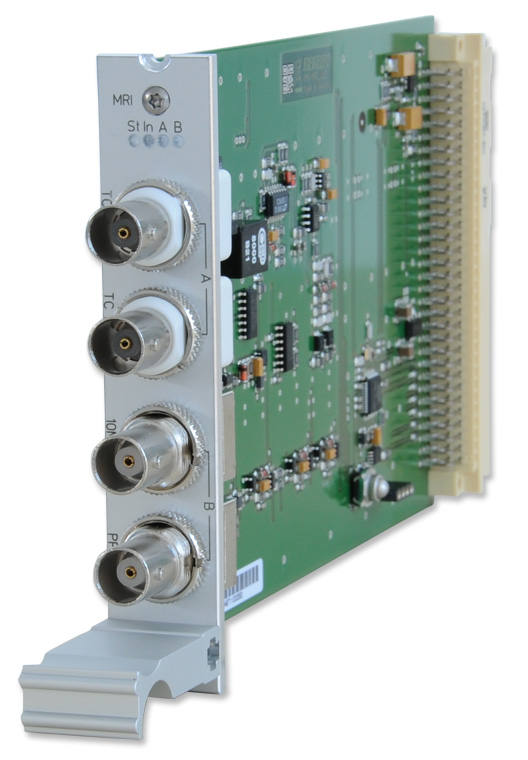

IMS-MRI: IRIG, 1PPS, 10MHz Input Card


This product is only compatible with Meinberg's line of modular IMS LANTIME systems.
Visit the IMS Information Page to learn more.

If an application requires the use of external synchronization sources instead of long-wave radio or GNSS signals, an MRI card enables the installed clock module to synchronize to 1PPS, 10 MHz, DCLS and AM time codes (IRIG B, AFNOR, IEEE1344 or C37.118).

Each MRI card is dedicated to one clock module, if a redundant solution requires external synchronization inputs for both clock modules, two MRI cards have to be installed. The MRI card is available with 4x BNC connectors.

Optionally, the MRI input card is also available with fiber optical inputs.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • 10 MHz, PPS, IRIG, TC-AM / TC-DCLS reference signals
  • Option: 4 x 850nm Multimode inputs via ST connector




Product Description



Characteristics

Supported Reference Signals Time Code unmodulated input (DCLS)
BNC connector, isolated by opto-coupler

Insulation voltage: 3750 Vrms
Internal series resistor: 330 Ohm
Max. input current: 25 mA
Diode forward voltage: 1.0 V - 1.3 V

selectable Time Code Inputs, modulated / unmodulated (DCLS):
B122/123 / B002/003 / B126/127 / B006/007
IEEE1344 (modulated and DCLS)
AFNOR NFS 87-500 (modulated and DCLS)

Time Code modulated input (AM)
BNC connector, isolated by transformer
Insulation voltage: 3000 V DC
Input impedance: 600 Ohm or 50 Ohm
Internally selectable by jumper (default 600 Ohm)

Input signal: 800 mV to 8 V (Mark, peak-to-peak)

10 MHz input
sine (1.5 Vpp - 5 Vpp) or TTL, female BNC connector

PPS input
TTL, pulse length >= 5μs, active high, female BNC connector
Status Indicators Four LED indicators provide information on the status of the module:
Initialization, operating state, and status of the reference input signals.
Current Draw 5 V +-5%, 100 mA
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
