LNE-GbE / LNE-SFP: LNE - Additional Network Interfaces Card with Gigabit Support and SFP Option
Key Features
- Lantime Expansion for 4 additional 10/100/1000MBIT physical Network Connections
- Hot Plug capable
- Option: Fiber Optical Interface 1000BASE-T SFP
Product Description
The additional ports can be used to separate network traffic on physical network segments and, by using the bonding feature of LTOS V6, can be used to create link aggregation groups for redundant network connectivity.

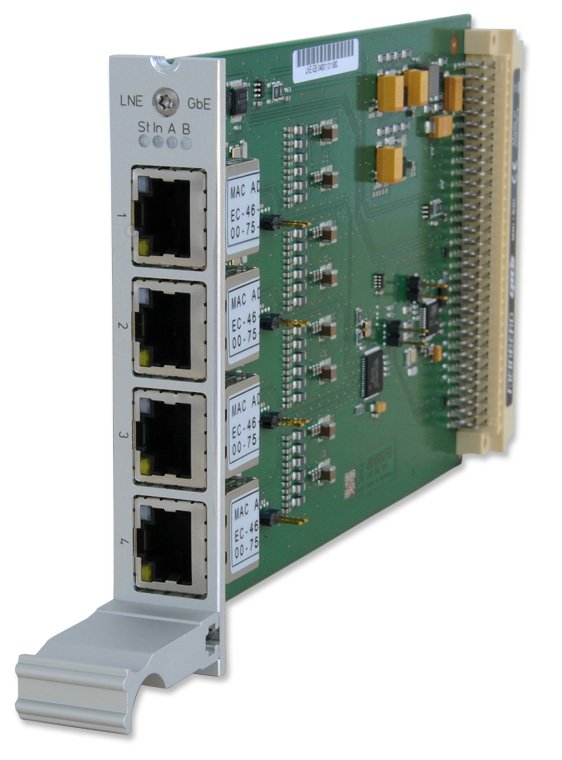

The IMS-LNE-G4T offers 4x 10/100/1000base-T network ports, an M3000 equipped with up to seven of these cards would therefore be able to provide a maximum of 29 network ports.
SFP Option

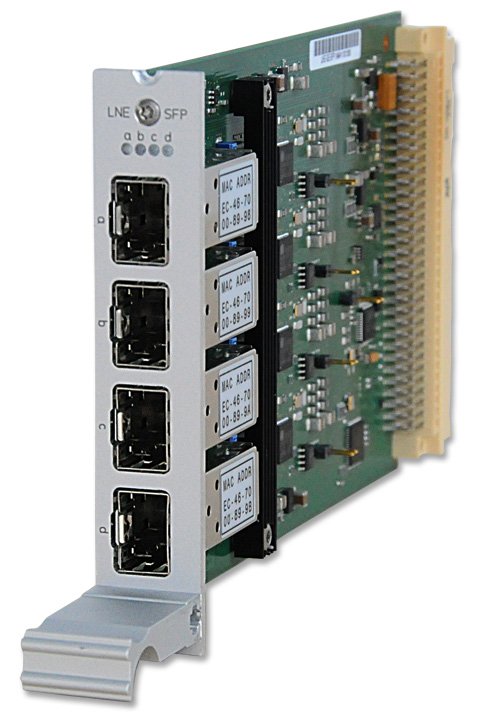

The IMS LNE-GbE network module is also available as fiber-optical variant (LNE-SFP). With this card, network connections over longer distances can be realized. With a single-mode fiber connection (e.g., 1310 nm), connections of up to 10 kilometers are possible.
Characteristics
Features Status LED | LED status information about initialization, NTP and LAN port |
Electrical Connectors | 96-pin DIN 41612 connector |
Network Interface |
LNE-GbE
Interface: 4 x 10/100/1000Base-T via RJ45 connector Cable: Copper Twisted Pair, e.g. CAT 5.0 Link Speed 10/100/1000 Base-T Duplex Modes: Half/Full/Autonegotiaton Option: LNE-SFP Interface: 4 x 1000BASE-T Cable: Multimode Fiber: GI 50/125µm or GI 62,5/125µm gradient fiber Singlemode Fiber: E9/125μm monomode fiber Link Speed Electrical: 1000 Base-T Fiber optical: 1000-FX A list of recommended and tested transceivers you will find in the LNE-SFP manual. |
Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
Warranty | Three-year warranty |
RoHS Status of Product | This product is fully RoHS-compliant. |
WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
