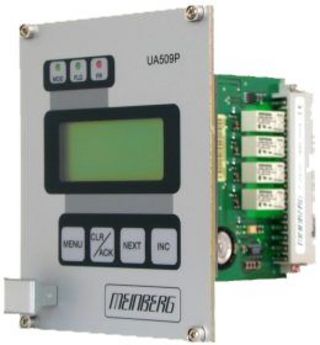

IMS - Modular SynchronizationUA509P: DCF77 Radio Clock Timer with LC Display
Key Features
- LC-display, 4 x 16 characters
- 2 RS-232 interfaces
- Reception status indicated by LED
- Buffered hardware clock
- 1024 switching times
- 4 relay outputs with 50 Watt safe load
- Buffered CMOS RAM
- Flash-EPROM with bootstrap loader
Product Description
DCF77 Radio Clock Timer UA509P with two serial RS232 interfaces and 4 programmable relay outputs (changeover contacts, 50 Watt max. load each). 8 different plans assigned to the days of the week (holidays included or not) with up to 1024 switching times can be edited by using the 4 keys and the LC-Display in the frontpanel. Alternative pulses can be programmed to the outputs instead of switching times. The UA509P generates pulses (TTL) to control slave clocks via an external slave line booster.Characteristics
| Receiver Type | Narrowband synchronous receiver with automatic gain control, Bandwidth: approx. 40Hz |
| Status Indicators | Modulation and field strength visualized by LEDs Free running state visualized by LED after switching to free running quartz clock mode |
| Display | LC Display, 4 x 16 characters |
| Synchronization Time | 2–3 minutes, given good DCF77 reception |
| Accuracy free run | Accuracy of the quartz base after min. 24hrs of synchronized operation: ±1·10-6 |
| Reception Monitoring | Incoming time string undergoes multiple checks
Plausibility test using two full consecutive time strings |
| Pulse Outputs | slave clock pulses (TTL level) |
| Interface | Two independent serial RS232 interfaces, configurable by menu |
| Serial Time String Output | COM0: Baudrate: 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 baud Framing: 7E1, 7E2, 8E1, 8N1, 8N2 one active 20mA current loop output COM1: Baudrate: 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 baud Framing: 7E1, 7E2, 8E1, 8N1, 8N2 Output string: 32 ASCII characters with date, time and status information |
| Relay Outputs | 4 relay outputs, max. 50W load |
| Switch programs | 8 different plans assigned to the days of the week (holidays included or not) with up to 1024 switching times can be edited by the 4 keys in the frontpanel. Alternative: Pulses can be programmed to the outputs |
| Dimensions of the front panel | 22TE 3HE (111,4mm x 128,4mm) |
| Electrical Connectors | 48-pin rear VG edge connector DIN 41612 SMB male connector |
| Backup Battery Type | In case of supply voltage failure the on-board RTC keeps the time based on XTAL for more than 100 hours (buffer capacitor) Optional: lithium backup battery (life time: 10 years) |
| Operating Voltage | +5 V DC |
| Current Draw | approx. 300 mA |
| Board type | Eurocard |
| Board Dimensions | 160 mm x 100 mm, 1,5 mm Epoxy |
| Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
| Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
| Contents of Shipment | Scope of supply includes an active ferrite antenna AI01 and 5m of RG174 coaxial cable with BNC connectors. Optional: AW02 with RG58 and patch cord, other length of cable |
| RoHS Status of Product | This product is fully RoHS-compliant. |
| WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
Downloads
Short Info Sheet
Manuals
Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
- For drivers, SDKs, tools and utilities, please check our Download Section
