RU226: DCF77 Receiver Unit

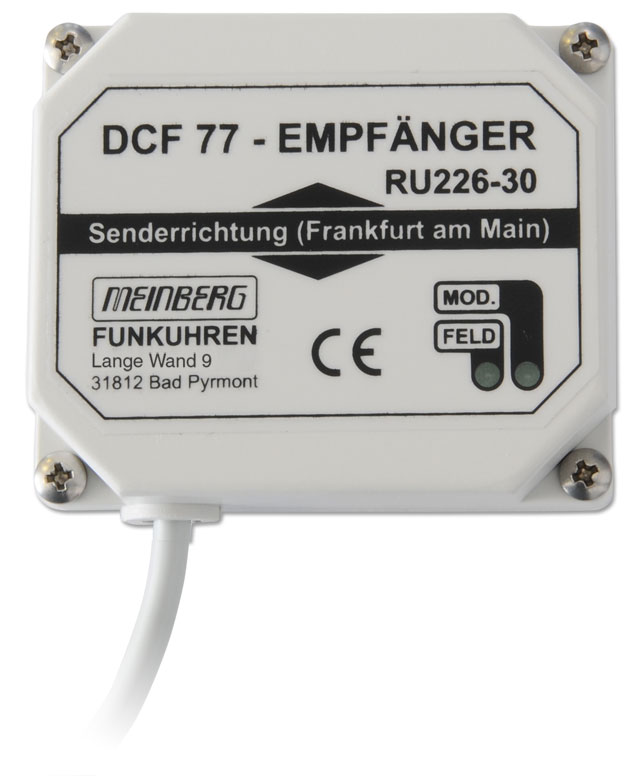

DCF77 Receiver Unit RU226

DCF77 Straight Receiver Unit RU226 with Automatic Gain Control

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Straight Receiver with Automatic Gain Control
  • Demodulated Time Marks
  • LEDs for Modulation and Field Strenght Indication
  • Power Down Mode
  • Integrated Antenna




Product Description



Characteristics

Receiver Type Narrowband tuned radio frequency receiver with automatic gain control, reception frequency: 77.5 kHz, bandwidth approx. 40 Hz
Type of Antenna Build in ferrite antenna
Control Elements In case of stationary installation it is advisable to position the receiver in an optimal way. The case should be aligned at a right angle to the direction of the transmitter (Frankfurt). In normal applications it should be mounted with distance to solid steel and to TVs or computer monitors. When mounting the receiver near to metal the received signal may be deaden (attenuation), but the field-distortion causes an easier alignment of the antenna because of the ''nearly-360°-character'' In this case a function test is necessary.
Pulse Outputs Demodulated time marks for further processing
TTL level (when 5V supplied): Vdd - 1V (high) typ. 0.1V (low)
Pulse width: 60...130msec (DCF-binary ''0'') 160...230msec (DCF-binary ''1'')
Electrical Connectors 4-wire cable
The cable can be configured in all lenghts
Operating Voltage 3.5 V ... 5 V
Form Factor Unbreakable plastic case
Current Draw 1.2V...5.5V @ 10mA (both LEDs bright)
@ 1mA in power down mode
Physical Dimensions 60mm x 50mm x 20mm (length x width x height)
Supported Temperature 0°C ... +50°C
Contents of Shipment Stick pad for mounting the case (e.g. on windows/furniture)
option: case sealed with silicon (IP54)
Warranty Three-year warranty


Downloads

Short Info Sheet



Manuals


Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
