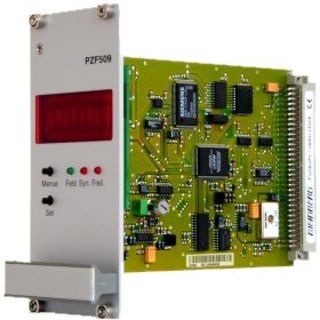

IMS - Modular SynchronizationPZF509: DCF77 Correlation Receiver (Eurocard)
Key Features
- Pulses per second and per minute
- Alphanumeric display
- 2 RS-232 interfaces
- Reception status indicated by LED
- Buffered hardware clock
- DDS frequency synthesizer
- DCF77-simulation
- Standard frequency outputs
- Flash-EPROM with bootstrap loader
Product Description
By evaluating the pseudo-random sequence (PZF), which is part of the DCF77 signal in addition to the amplitude modulation, the PZF509 is capable to reproduce a time pattern in the range of microseconds. This allows generation of high precision pulses and an accurate adjustment of the main oscillator of the system. Besides various standard frequencies, the board provides a programmable frequency output. Additional features of PZF509 are pulses per second (PPS) and per minute (PPM) and two RS232 interfaces.Characteristics
| Receiver Type | DCF77 correlation receiver Preamplifier with two post-connected receiver channels |
| Status Indicators | Indication of a DCF-signal with at least minimum field strength by 'Feld'-LED 'Syn.'-LED indicates the calculation of an insufficient correlation coefficient (strong interference or loss of reception) The 'Freil.'-LED indicates that the internal hardware clock is not synchronized by DCF77 |
| Type of Antenna | Modified active ferrite antenna AW02 |
| Display | 8-digit alphanumeric dot matrix display, digit size 5 mm |
| Synchronization Time | 2–3 minutes, given good DCF77 reception |
| Accuracy free run | Accuracy in case of lost reception: ±1·10E-8 for one hour |
| Frequency Outputs | 77.5 kHz, 155 kHz, 310 kHz, 100 kHz, 1 MHz, 10 MHz standard frequencies, TTL-level DDS-frequency synthesizer with TTL, sine wave and open drain outputs, 1/3 Hz...9.999 MHz |
| Accuracy of Frequency Outputs | Short term stability: ±5·10-9 (standard frequencies and synthesizer up to 10 kHz) ±2.35 mHz for synthesizer frequency > 10 kHz Holdover: ±1·10-8 for one hour |
| Pulse Outputs | High and low active pulses per second and per minute (TTL-level), pulse duration 200 msec |
| Accuracy of Pulse Outputs | Time delay between two systems with max. distance of 50 km: typ. 20 µsec, max 50 µsec Time shift of successive pulses: max 1.5 µsec |
| Interface | Two independent serial RS-232-interfaces, menu configurable |
| Serial Time String Output | Baudrate: 600, 1200, 2400, 9600 baud Framing: 7O2, 7N2, 7E1, 7E2, 8N1, 8N2, 8E1 Output string: 32 ASCII characters with date, time and status information |
| Dimensions of the front panel | 12HP/3U (60mm x 128mm) |
| Electrical Connectors | 64-pin rear VG edge connector DIN 41612 SMB male connector |
| Power Consumption | 1.6 W |
| Backup Battery Type | When main power supply fails, hardware clock runs free on quartz basis, life time of lithium battery min. 10 years |
| Cable Type | Coaxial cable RG58 indoor or outdoor usage (BNC-, N-Norm-connector) |
| Operating Voltage | +5 V DC |
| Firmware | Flash-EPROM, bootstrap loader |
| Current Draw | ca. 330 mA |
| Board type | Eurocard |
| Board Dimensions | 160 mm x 100 mm, 1,5 mm Epoxy |
| Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
| Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
| Contents of Shipment | Scope of supply includes an active ferrite antenna AI01 and 5m of RG174 coaxial cable with BNC connectors. Optional: AW02 with RG58 and patch cord, other length of cable |
| Options | OCXO version: Short term stability: ±1·10E-9 Holdover: ±2·10E-8 for one day |
