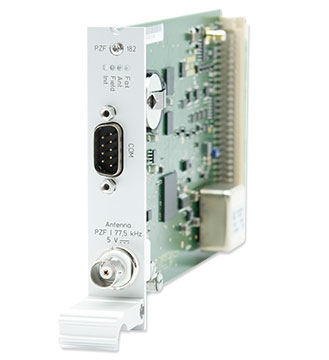

PZF180: DCF77 Correlation Receiver (Eurocard)


High accuracy DCF77 correlation receiver for generation of standard frequencies and pulses

Key Features

Warranty Period (Years): 3 RoHS-compliant



Product Description

By evaluating the pseudo-random sequence (PZF), which is part of the DCF77 signal in addition to the amplitude modulation, the PZF180 is capable to reproduce a time pattern in the range of microseconds. This allows generation of high precision pulses and an accurate adjustment of the main oscillator of the system. Besides various standard frequencies, the board provides a programmable frequency output. Additional features of PZF180 are pulses per second (PPS) and per minute (PPM), four RS232 interfaces and IRIG timecode outputs.


Characteristics

Receiver Type Two seperate receiver channels for signal conversion and best aquisition and tracking of the DCF77 signal (AM + PZF).
Status Indicators Indication of a DCF-signal with at least minimum field strength by 'Feld'-LED
'Syn.'-LED indicates the calculation of an insufficient correlation coefficient (strong interference or loss of reception)
The 'Freil.'-LED indicates that the internal hardware clock is not synchronized by DCF77
Type of Antenna Active ferrite antenna AW02
Synchronization Time 2–3 minutes, given good DCF77 reception
Accuracy free run Accuracy in case of lost reception: ±1·10E-8 for one hour
Frequency Outputs 100 kHz, 155 kHz, 1 MHz and 10 MHz standard frequencies, TTL-level
DDS-frequency synthesizer with TTL, sine wave and open drain outputs, 1/3 Hz...9.999 MHz
Accuracy of Frequency Outputs Short term stability: ±5·10-9 (standard frequencies and synthesizer up to 10 kHz)
±2.35 mHz for synthesizer frequency > 10 kHz
Holdover: ±1·10-8 for one hour
Pulse Outputs High and low active pulses per second and per minute (TTL-level), pulse duration 200 msec
Accuracy of Pulse Outputs Time delay between two systems with max. distance of 50 km: typ. 20 µsec, max 50 µsec
Time shift of successive pulses: max 1.5 µsec
Interface Four independent serial RS-232 interfaces, menu configurable
Serial Time String Output Baudrate: 300, 600, 1200, 2400, 4800, 9600, 19200 baud
Framing: 7N2, 7E1, 7E2, 7O1, 7O2, 8E1, 8N1, 8N2, 8O1
Output string: 32 ASCII characters with date, time and status information
PWM Time Code Output TTL-level
AM Time Code Output IRIG AM sine wave signal:
3Vpp (MARK), 1Vpp (SPACE) into 50 ohm
Supported Timecode Formats IRIG B002: 100pps, DCLS signal, no carrier, BCD time-of-year
IRIG B122: 100pps, AM sine wave signal, 1 kHz carrier, BCD time-of-year
IRIG B003: 100pps, DCLS signal, no carrier, BCD time-of-year, SBS time-of-day
IRIG B123: 100pps, AM sine wave signal, 1kHz carrier, BCD time-of-year, SBS time-of-day
IRIG B006: 100 pps, DCLS Signal, no carrier, BCD time-of-year, year
IRIG B126: 100 pps, AM sine wave signal, 1 kHz carrier frequency, BCD time-of-year, Year
IRIG B007: 100 pps, DCLS Signal, no carrier, BCD time-of-year, year, SBS time-of-day
IRIG B127: 100 pps, AM sine wave signal, 1 kHz carrier frequency, BCD time-of-year, year, SBS time-of-day
IEEE1344: Code according to IEEE1344-1995, 100pps, AM sine-wave signal, 1kHz carrier, BCD time-of-year, SBS time-of-day, IEEE1344 expansion for date, time zone, daylight saving and leap second in Control Functions segment
C37.118: Like IEEE1344 - with inverted sign bit for UTC offset
AFNOR: Code according to NFS-87500, 100pps, AM sine-wave signal, 1kHz carrier, BCD time-of-year, complete date, SBS time-of-day
Dimensions of the front panel 4HP/3U (20mm x 128mm)
Electrical Connectors 64-pin rear VG edge connector DIN 41612
SMB male connector
Backup Battery Type When main power supply fails, hardware clock runs free on quartz basis, life time of lithium battery min. 10 years
Cable Type Coaxial cable RG58 indoor or outdoor usage (BNC-, N-Norm-connector)
Operating Voltage +5 V DC
Firmware Flash-EPROM, bootstrap loader
Current Draw approx. 230 mA
Board type Eurocard
Board Dimensions 160 mm x 100 mm, 1,5 mm Epoxy
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Contents of Shipment Scope of supply includes a modified active ferrite antenna AW02, 10m of RG58 coaxial cable with type-N female connectors and a 1m RG174 patch cord (type-N to SMB).
Warranty Three-year warranty
Options Several oscillator versions (see oscillator list).
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
