ONT4xx/ONT6xx: NTP LED Large Display


Large Display with 100mm (4") 7-segment LED numerals and Power over Ethernet in a high quality metal housing.

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

This product has been discontinued and has been replaced with: RGB Displays

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • 4 or 6 Digit red LED Display
  • large 100 mm numerals, visible over 50 mtrs.
  • 12 h / 24 h time option
  • Power over Ethernet, no Power Supply needed
  • High Quality Stainless Steel or Aluminium Housing
  • DHCP or static IP addressing
  • Telnet configuration




Product Description

Plug directly into an Ethernet jack on your local area network. No AC plug is required, so installation is inexpensive and it’s easy to move clocks around. Time updates are received automatically over the network, and no specialized software is required - control one or hundreds of clocks with a simple telnet session. These devices make practical use of PoE standards to eliminate electrical wiring requirements and simplifying installation.

If the network is not currently PoE-enabled and is going to support a PoE digital clock, a Single Port Midspan Power Injector must be added to the 10/100 BaseT LAN. This injector is not included in the scope of supply and must be ordered separately if required.

  • Time zone settings and daylight saving configuration occur via telnet session.
  • These displays work excellent with all Meinberg Lantime Time Servers.


Characteristics

Display ONT4xx: red 4-digit 7-segment LED display (hh:mm), 100 mm (4") numerals

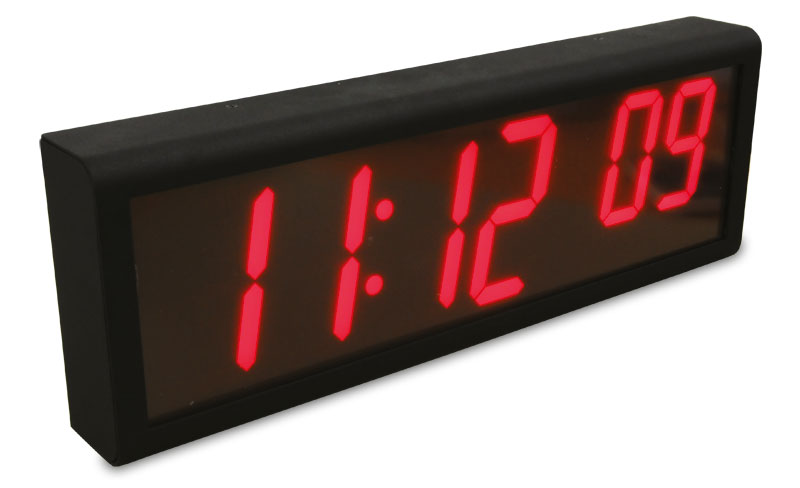

ONT6xx: red 6-digit 7-segment LED display (hh:mm:ss), 100/75 mm (4"/3") numerals
Electrical Connectors 10/100 BaseT Ethernet connection (IEEE802.3af, PoE) via RJ45 connector
Operating Voltage Power over Ethernet (PoE)
compliant to IEEE 802.3af, less than 15,4 Watt
Form Factor ONT4SS, ONT6SS: brushed Stainless Steel cabinet
ONT4BK, ONT6BK: Powder coat black Aluminium cabinet
Physical Dimensions ONT4xx: 305 mm x 153 mm x 56 mm (width x height x depth)
ONT6xx: 445 mm x 153 mm x 56 mm (width x height x depth)
Supported Temperature 32 º to 104 ºF (0 º to 40 ºC)
Supported Humidity max 95 %, non-condensing
Warranty Two-Year Warranty
Options Note:
For a non PoE-capable network connection you need a PoE injector - this is not included in the scope of delivery and must be ordered additionally from us.

Mounting kit for single and double Cantilever or Pendant mounting.
(No accessory is needed when mounting the clock with the back flush to a wall)
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
