GPS167: GPS Satellite Receiver with LC display and control elements (Eurocard)
Key Features
- Pulses per second and per minute
- 2 time trigger inputs
- 2 RS-232 interfaces
- Alarm output
- DDS frequency synthesizer
- DCF77-simulation
- Included GPSANTv2 antenna uses downconverter technology to enable long transmission routes of up to 1100 m (1200 yards)
- DC-insulated antenna circuit
- Standard frequency outputs
- Flash-EPROM with bootstrap loader
- Optional up to 4 serial ports
3 programmable switching outputs
timecode generator (IRIG-B, AFNOR) - Including GPS antenna, 20m standard cable and manual on USB key
Product Description
The frequency locking of the master oscillator to the GPS system enables the module GPS167 to generate fixed and programmable standard frequencies with very high accuracy and stability. Various oscillator options allow to meet different requirements concerning the accurracy of the outputs in the most cost efficient way.The pulse generator of GPS167 generates pulses per second and per minute. As an option three programmable outputs are available. The pulses are synchronised to UTC second.
Up to four serial interfaces are available for sending time strings. These ASCII telegrams include information regarding time, date and status of the GPS receiver.
The module provides two inputs for measurement of asynchronous time events. These capture events are shown on the LC display and can be read via a serial interface.

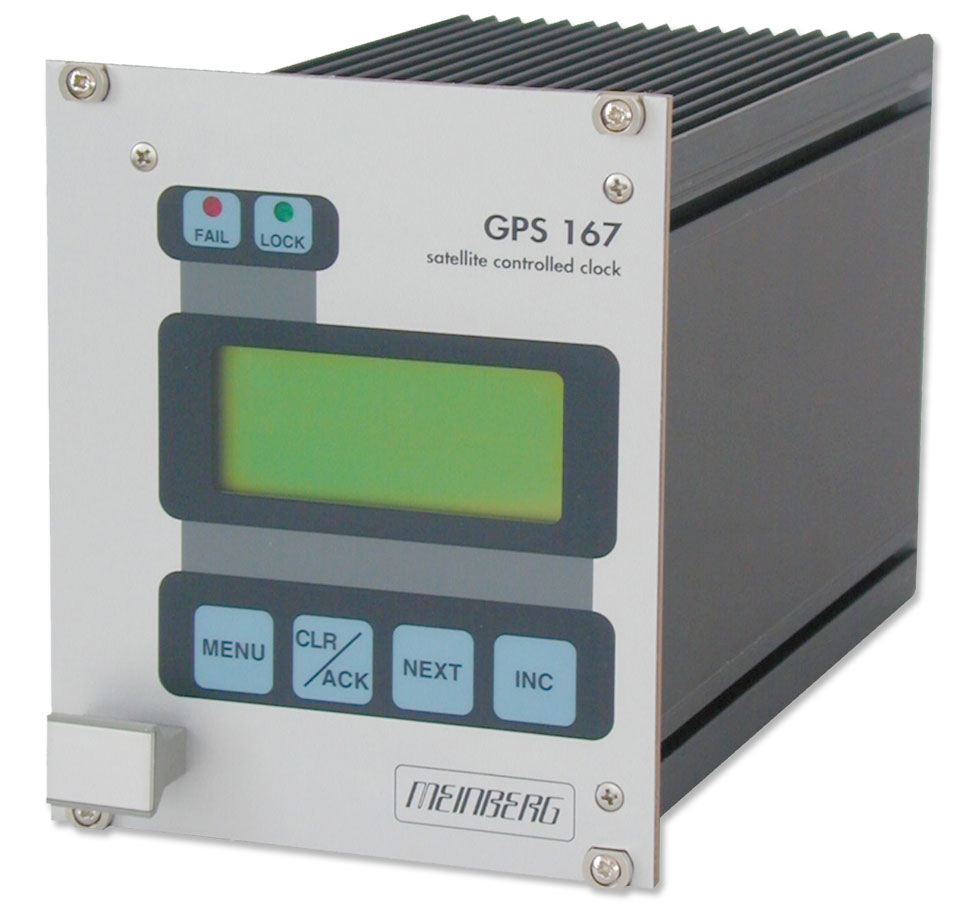

The front panel integrates a LC display that shows information regarding the GPS receiver in different menus. In combination with four push buttons it is also used to setup all configurable parameters.
Characteristics
Receiver Type | 6 channel GPS C/A-code receiver |
Status Indicators | Fail-LED shows that the internal timing has not been synchronized or that a system error occurred Lock-LED shows that the calculation of the position has been achieved after reset |
Type of Antenna | Included GPSANTv2 antenna with innovative downconverter technology that allows transmission routes of up to 300 m using RG58 cable, 700 m using RG213 cable, and 1100 m using H2010 Ultraflex cable |
Display | LC-display, 4 x 16 characters, content of display selectable by menu UTC time or local time |
Synchronization Time | Max. 1 minute in normal operating conditions
Max. 25 minutes (average 12 minutes) upon first initialization or in the absence of saved satellite data |
Frequency Outputs | 10 MHz, 1 MHz, 100 kHz (TTL level) Synthesizer 1/8 Hz up to 10 MHz (TTL level, sine wave 1.5Veff, open drain) Accuracy: ±1·10E-9 (timebase OCXO LQ), GPS-synchronous for more than 20 minutes Different oscillators available, look at oscillator options |
Pulse Outputs | Pulse per second (PPS) and pulse per minute (PPM). TTL level, pulse width: 200 msec |
Accuracy of Pulse Outputs | Dependant on oscillator option: < ±250nsec (TCXO, OCXO LQ) < ±100nsec (OCXO MQ, OCXO HQ, Rubidium) |
Interface | Two independent serial RS-232-interfaces, menu configurable |
Serial Time String Output | Baud rate: 300, 600, 1200, 2400, 4800, 9600, 19200 Baud Data format: 7N2, 7E1, 7E2, 8E1, 8N1, 8N2 Time telegram: Meinberg Standard Time String , SAT, Uni Erlangen (NTP), SPA, Sysplex, RACAL, NMEA0183 (RMC,GGA,ZDA), Meinberg GPS, COMPUTIME, ION oder Capture String |
DCF77 emulation | DCF77-emulation, TTL-level |
Switch outputs |
Optional:
3 TTL outputs can configured independently for the following modes: - free programmable cyclic or fixed impulses - timer mode; three 'ON'- and three 'OFF'-states can be setup per day The switch states can be inverted for all three outputs, the impulse lengths are configurable in 10msec steps in a range from 10msec to 10sec. The impulse output can be configured for all channels together to 'always' or 'ifsync'. |
Supported Timecode Formats |
Optional:
IRIG B002, B122, B003, B123 oder AFNOR: - AM-sinewave signal: 3Vpp (MARK), 1Vpp (SPACE) into 50 ohm - TTL-level |
Time-Trigger inputs | Resolution: 100 nsec, triggered by falling TTL slope Time of trigger event readable via RS232-interface |
Alarm output | Synchronous state of the module, TTL high level if synchronous |
Dimensions of the front panel | 21HP/3U (106 mm x 128 mm), with integrated membrane keyboard |
Electrical Connectors | 64 pin rear VG edge connector DIN 41612 |
Antenna Connector | BNC connector |
Backup Battery Type | When main power supply fails, hardware clock runs free on quartz basis, almanac data is stored in RAM Life time of lithium battery min. 10 years |
Cable Type | Coaxial cable RG58 indoor or outdoor usage (BNC-, N-Norm-connector) |
Operating Voltage | +5 V DC +12 V DC |
Firmware | Flash-EPROM, bootstrap loader |
Current Draw | +5V, ca. 330mA +12V, ca. 200mA |
Board type | Eurocard |
Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
Options | Optional up to 4 serial interfaces, 3 programmable TTL outputs and timecode generator (IRIG-B, AFNOR) |
RoHS Status of Product | This product is fully RoHS-compliant. |
WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
