FO CONVERTER: Fiber Optic Converter

Key Features

for distances of up to 2,000 m (Multimode) or 10,000 m (Singlemode)
for IRIG Time Codes (AM / DCLS), PPS, 10 MHz, RS-232 serial interface
interference immunity of the FO connection

Product Description

Multimode Converter

The following fiber optic converters have been designed for the distribution of electrical signals over distances of up to 2,000 mtrs. The optical ST connectors are linked via an optical GI50/125 µm or GI62.5/125 µm multimode fiber (wave lenght: 850 nm). The launchable optical output power is typ. 20 µW per output, the minimum optical input level is 3 µW. The elecrical inputs and outputs are provided via female BNC connectors or 9pin SubD connectors. If necessary, the output signals of the digital modules can be inverted against the respective input signal by a jumper inside the aluminium profile housing (71 mm x 84 mm x 24 mm / width x depth x height).

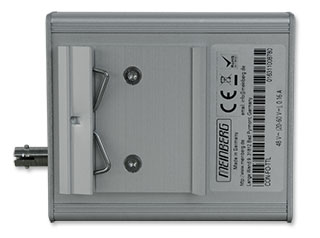

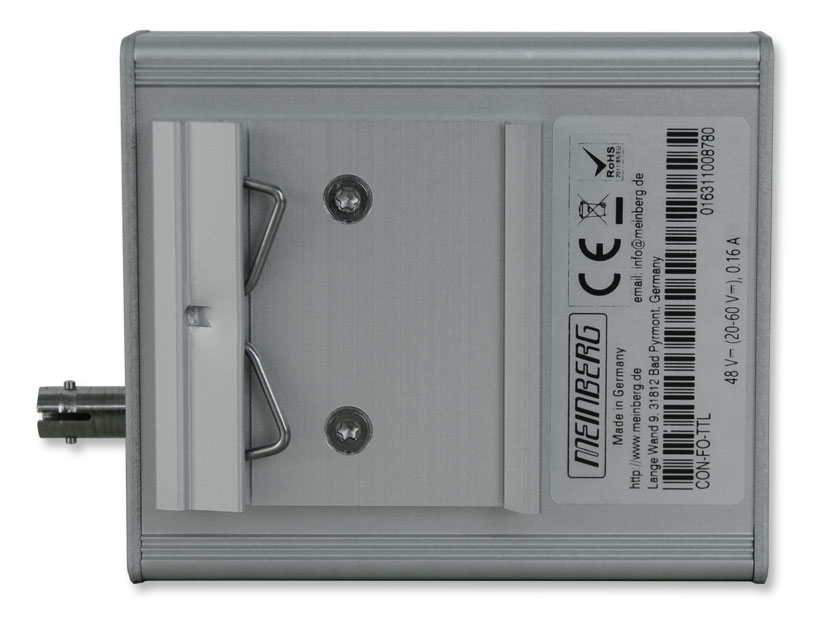

The voltage supply (20 - 60 V DC) is provided by a plug-in power supply unit (100 - 240 V AC_IN; 24 V DC_OUT) included in the scope of delivery. All converter variants are equipped with a fixing clamp for 35 mm DIN mounting rails.

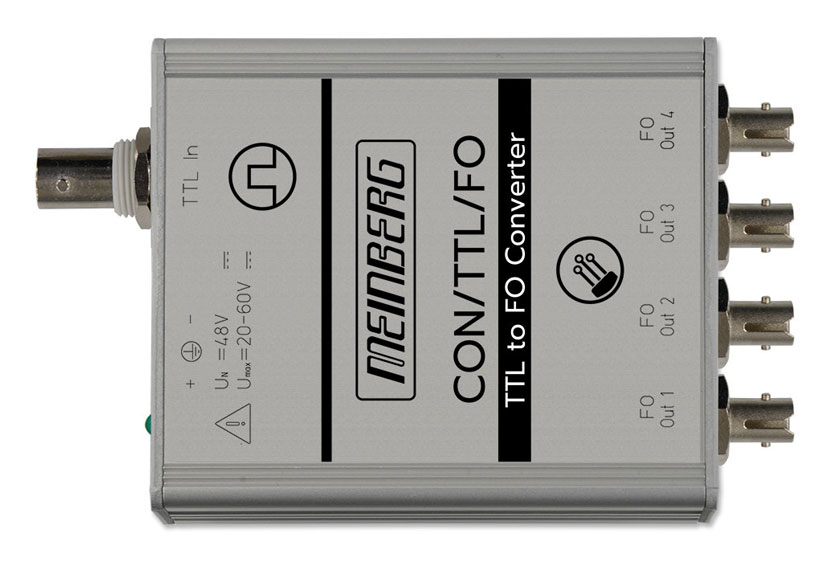

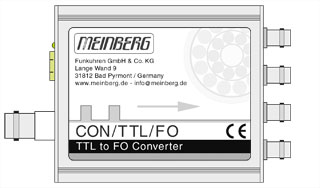

Fiber Optic converter CON/TTL/FO

CON/TTL/FO
The fiber optic module CON/TTL/FO converts an TTL input signal into one or more FO (fiber optical) output signals.

Standard variants (PPS, PPM, 10 MHz, IRIG-B DCLS, TxD):
CON/TTL/FO: TTL In (BNC) to 1 x FO Out

Option: up to 4 x FO Out CON/.../FO-x /Output

Infosheet FO Converter CON/TTL/FO

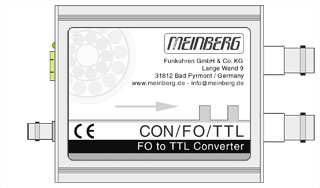

FO converter CON/FO/TTL

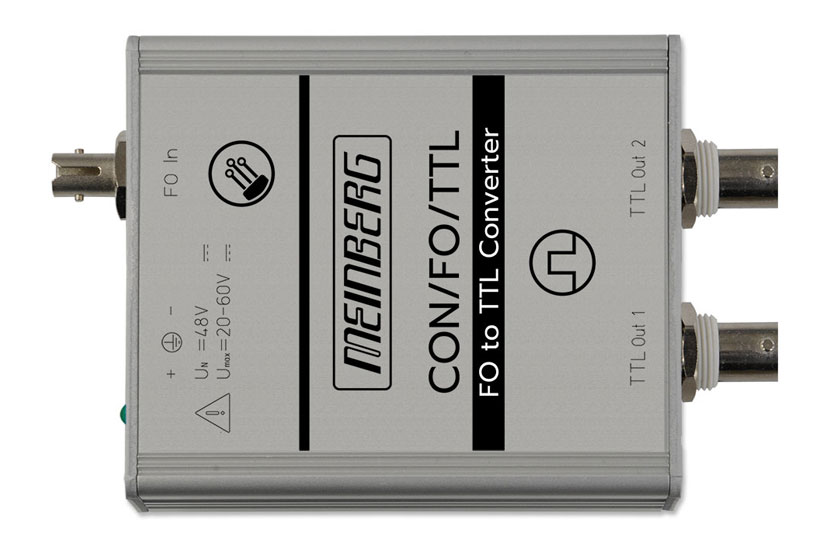

CON/FO/TTL
The fiber optic module CON/FO/TTL converts a FO (fiber optical) input signal into one or more electrical output signals (TTL or RS-422).

Standard variants (PPS, PPM, IRIG-B DCLS, TxD):
CON/FO/TTL: FO In to 2 x TTL Out (BNC)

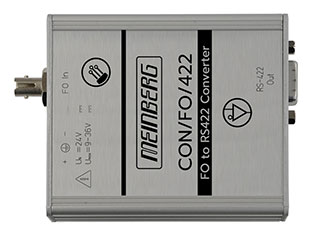

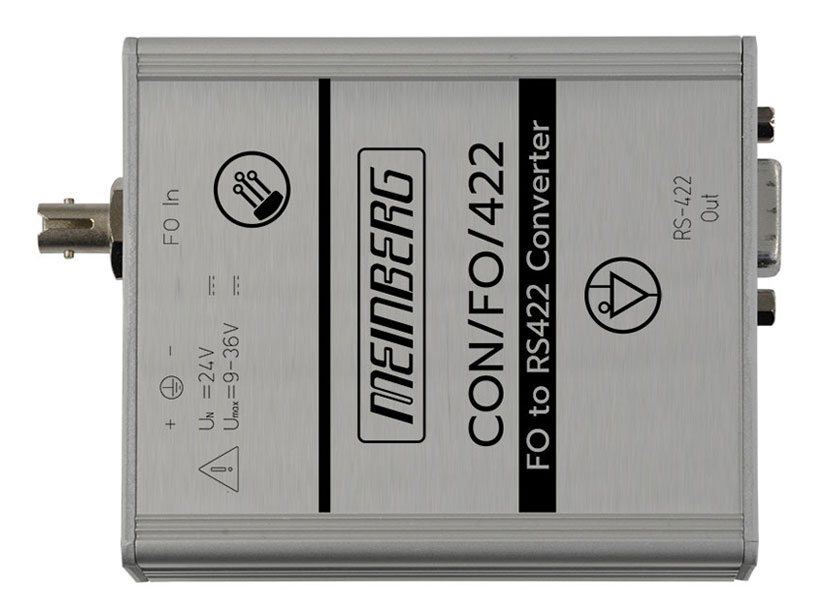

CON/FO/422: FO In to 1 x RS-422 Out (DB9 female)
CON/FO/TTL/422: FO In to 1 x RS-422 and 1 x TTL Out

Infosheet FO Converter CON/FO/TTL

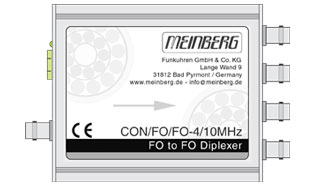

LWL Converter CON/FO/FO for digital signals up to 10MHz

CON/FO/FO
The fiber optic converter CON/FO/FO distributes a single optical input signal to multiple optical outputs.

Variants up to 10 MHz:
CON/FO/FO/10M: single ST input via FO receiver (e.g. IRIG-B DCLS / 10 MHz)

Option:
CON/FO/FO-x/10M: FO In into 4 x FO Out
up to 4 x 850 nm Multimode FO outputs via ST connectors.

Infosheet LWL Converter CON/TTL/FO

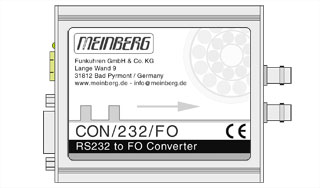

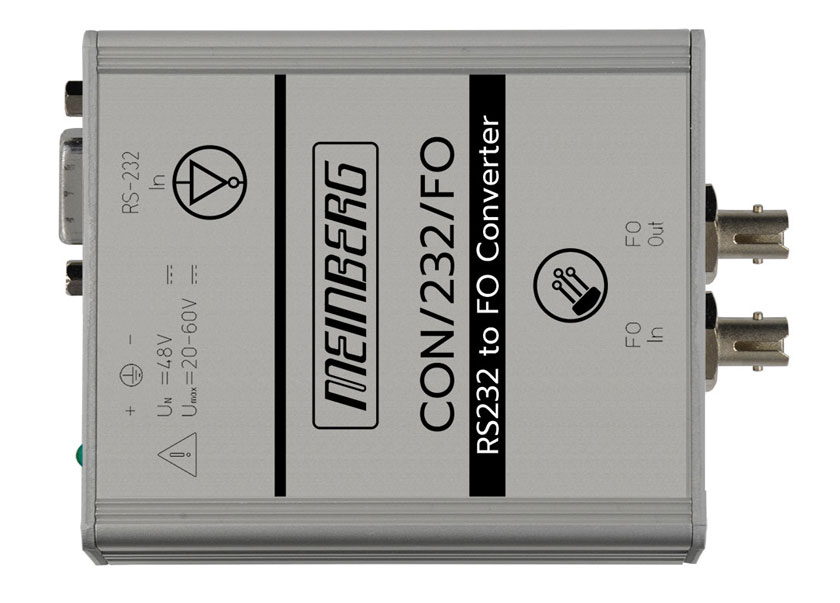

FO Converter CON/232/FO

CON/232/FO
The fiber optic module CON/232/FO converts a RS-232 signal (TxD and RxD) into optical signals.

Standard variants (for RxD and TxD):
CON/232/FO: RS-232 (DB9 male connector) to 1 x FO In and 1 x FO Out

Optional up to 4 x FO Out: CON/.../FO-x /Output

Infosheet FO Converter CON/232/FO

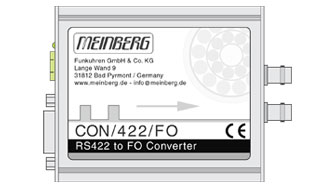

LWL Converter CON/422/FO

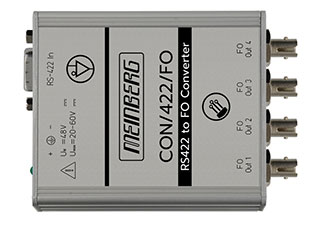

CON/422/FO
This Fiber Optic device converts an RS-422 signal into an optical signal.

Standard Variant:
CON/422/FO: RS-422 (DB9 male connector) to 1 x FO Out

Option: Up to 4 X FO outputs

Infosheet LWL Converter CON/422/FO

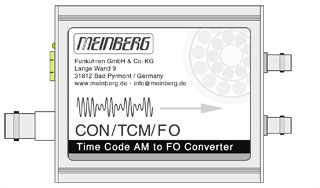

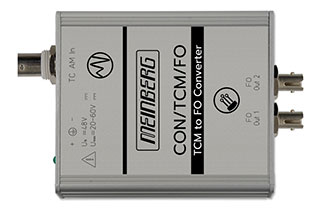

FO converter CON/TCM/FO

CON/TCM/FO and CON/FO/TCM
These fiber optic modules carry an amplitude modulated Time Code AM signal over an optical fiber.
Signal delay: 60 µs

Variant to convert a Time Code AM signal to FO:
CON/TCM/FO: Time Code In (BNC) to 2 x FO Out

Variant to back-convert the FO signal to Time Code AM:

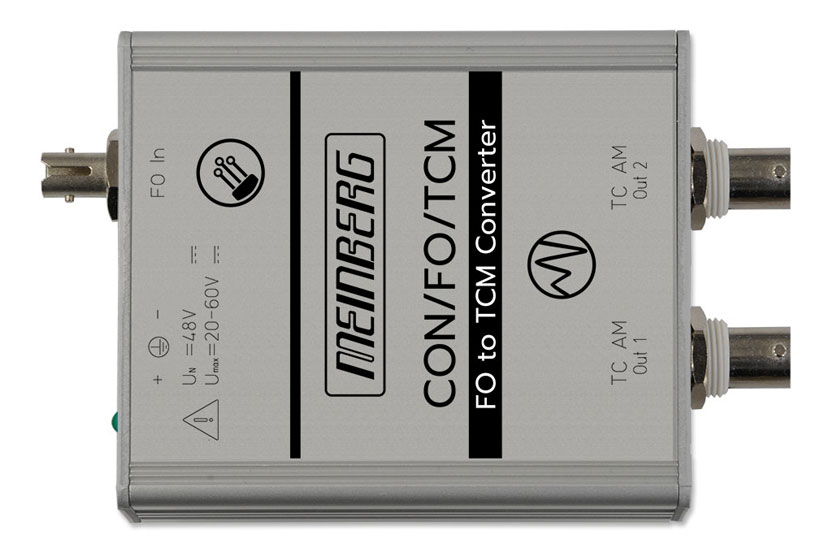

CON/FO/TCM: FO In to 2 x Time Code Out (BNC)

Infosheet FO Converter CON/TCM/FO
Infosheet FO Converter CON/FO/TCM

Singlemode Converter

Multimode converters are unsuitable to bridge distances over 2,000 m. The following singlemode converters were developed to distribute electrical signals over distances of up to 10 kilometers. The optical ST plug connectors are wired via an E9/125 µm mono-mode fiber (wave-length: 1310 nm). The optical output power is typ. 15 µW (-18 bBm) per output and the optical input has a susceptibility of -30 dBm. The electrical in- and outputs are led out via a BNC socket or a D-Sub9 connector.

Even with these modules, the output signal can be inverted against the input signal, if necessary.

LWL Converter CON/TTL/FOS

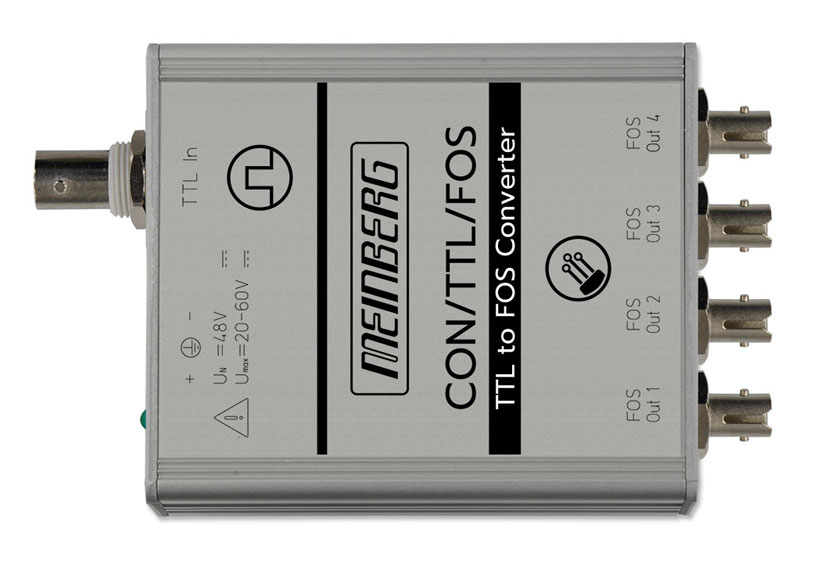

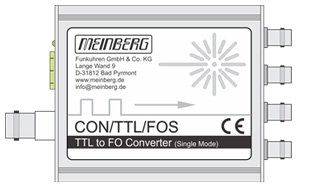

CON/TTL/FOS
The fiber optic converter module CON/TTL/FOS for singlemode fibers converts an input signal (TTL, RS-422 or FO) into one or more fiber optical output signals.

The following options are possible:
CON/TTL/FOS-x:
TTL input (BNC) to one or -x (2 - 4) FOS outputs
CON/422/FOS-x:
RS-422 input (DSub9) to one or -x (2 - 4) FOS outputs
CON/FOS/FOS-x:
FOS input (ST) to one or -x (2 - 4) FOS outputs
CON/FO/FOS-x:
FO (multimode) input (ST) to one or -x (2 - 4) FOS outputs

Infosheet FO Converter CON/TTL/FOS

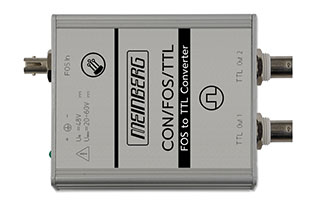

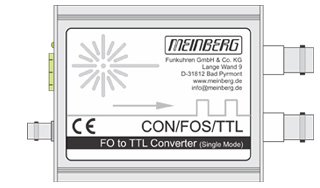

LWL Converter CON/FOS/TTL

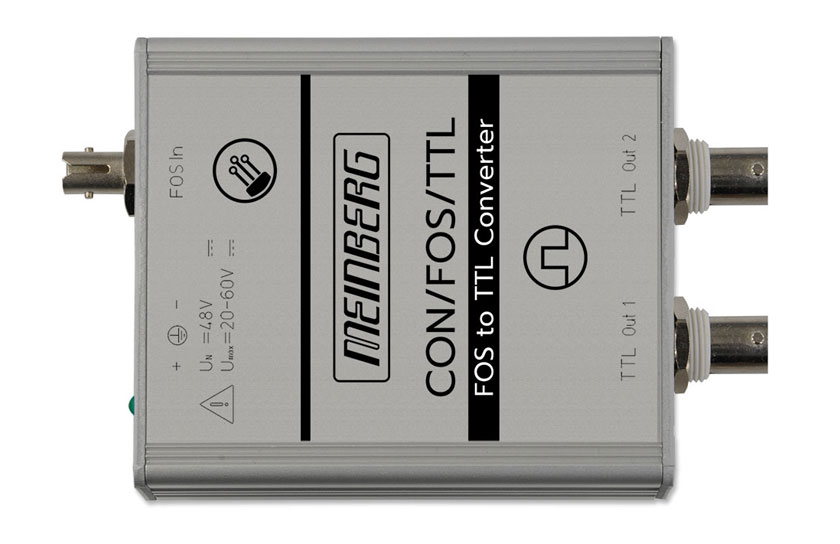

CON/FOS/TTL
The fiber optic converter module CON/FOS/TTL for singlemode fibers converts an optical input signal into one or more electrical output signals (TTL or RS-422).

The following options are possible:
CON/FOS/TTL: two TTL outputs via BNC female connectors
CON/FOS/422: one RS-422 output via D-Sub9 female connector

Infosheet FO Converter CON/FOS/TTL

Characteristics

Optical Outputs	Multimode FO outputs via ST connectors (for GI 50/125 µm or GI 62,5/125 µm gradient fiber) For signals up to 10 MHz Launchable optical output power: typ. 15 µW per output (into GI 62,5/125 µm fiber) wave lenght: 850 nm Singlemode FOS outputs via ST connectors for E9/125 μm monomode fiber, minimum input level: -38 dBm, wave length: 1310 nm For signals up to 10 MHz
Optical Inputs	One multimode FO input via ST connector (for GI 50/125 µm or GI 62,5/125 µm gradient fiber), for signals up to 10 MHz, optical input level: min. 3 µW, wave lenght: 850 nm One FOS singlemode FO signal via ST connector (for E9/125 μm monomode fiber), minimum input level: 1 μW (-30 dBm),, wave length: 1310 nm

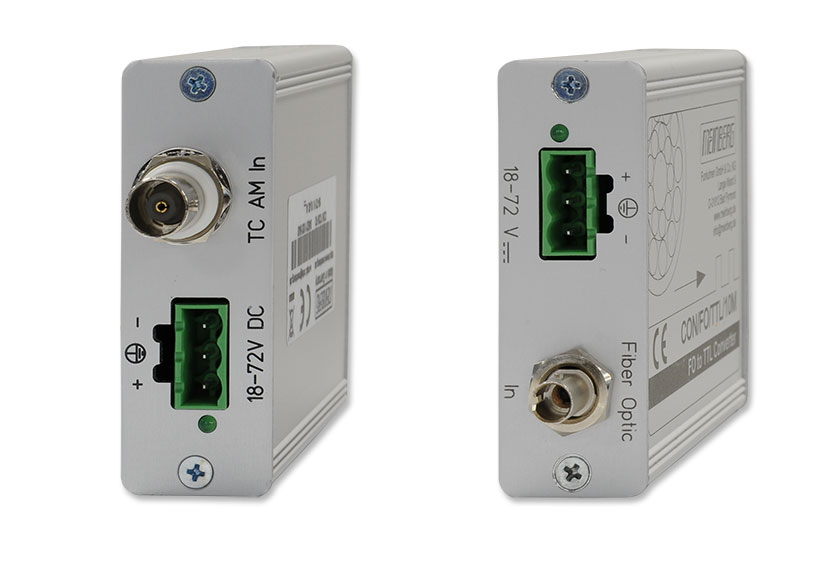

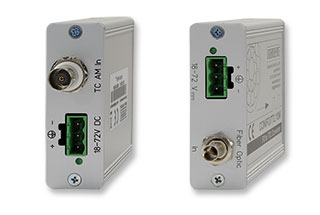

Electrical Connectors	TTL signal via female BNC connector or RS-232 Signal via male 9pin DSub connector (Pin 2: TxD IN, Pin 3: RxD OUT, Pin 5: GND) RS-422 signal via male 9pin DSub connector (Pin 8: +IN, Pin 7: -IN) Time Code AM signal via BNC female connector Supply voltage via 3-pin. DFK connector
Operating Voltage	The required supply voltage (20 - 60 V DC) is provided by a power adapter (V_IN: 100 - 240 V AC; V_OUT: 24 V DC) which is included in the scope of supply.
Physical Dimensions	Aluminium profile case, 84mm x 71mm x 24mm
Supported Temperature	Operational: 0 - 50 °C (32 - 122 °F) Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity	Max. 85 % (non-condensing) at 40 °C
Warranty	Three-year warranty
RoHS Status of Product	This product is fully RoHS-compliant.
WEEE Status of Product	This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
