REL8: Relay Card


Relay Card REL8

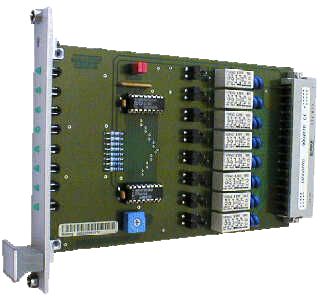

Relay Card REL8 with 8 bistable relay outputs

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • No Change of Switching States in Case of Supply Voltage Failure
  • Switching States indicated by LEDs
  • Overvoltage Protection in all Outputs
  • 8 bistable Relay Outputs with 50 Watt Safe Load




Product Description



Characteristics

Status Indicators 8 LEDs to monitor relay states
Serial Time String Output I2C Bus
The relay card can be addressed by a radio clock UA509P or UA509 with special software.
In this way it is possible to get 16 additional switching outputs for the UA509P resp. 8 switching outputs for the UA509.
Relay Outputs 8 changeover contacts, max. 50W load Overvoltage protection with varistors in all outputs (Umax = 250V)
Dimensions of the front panel 4HP/3U (20mm x 128mm)
Electrical Connectors 48-pin VG-rail DIN 41612
Operating Voltage +5 V DC
Current Draw typ. 100mA, max. 450mA
Board type Eurocard
Board Dimensions 160 mm x 100 mm, 1,5 mm Epoxy
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
