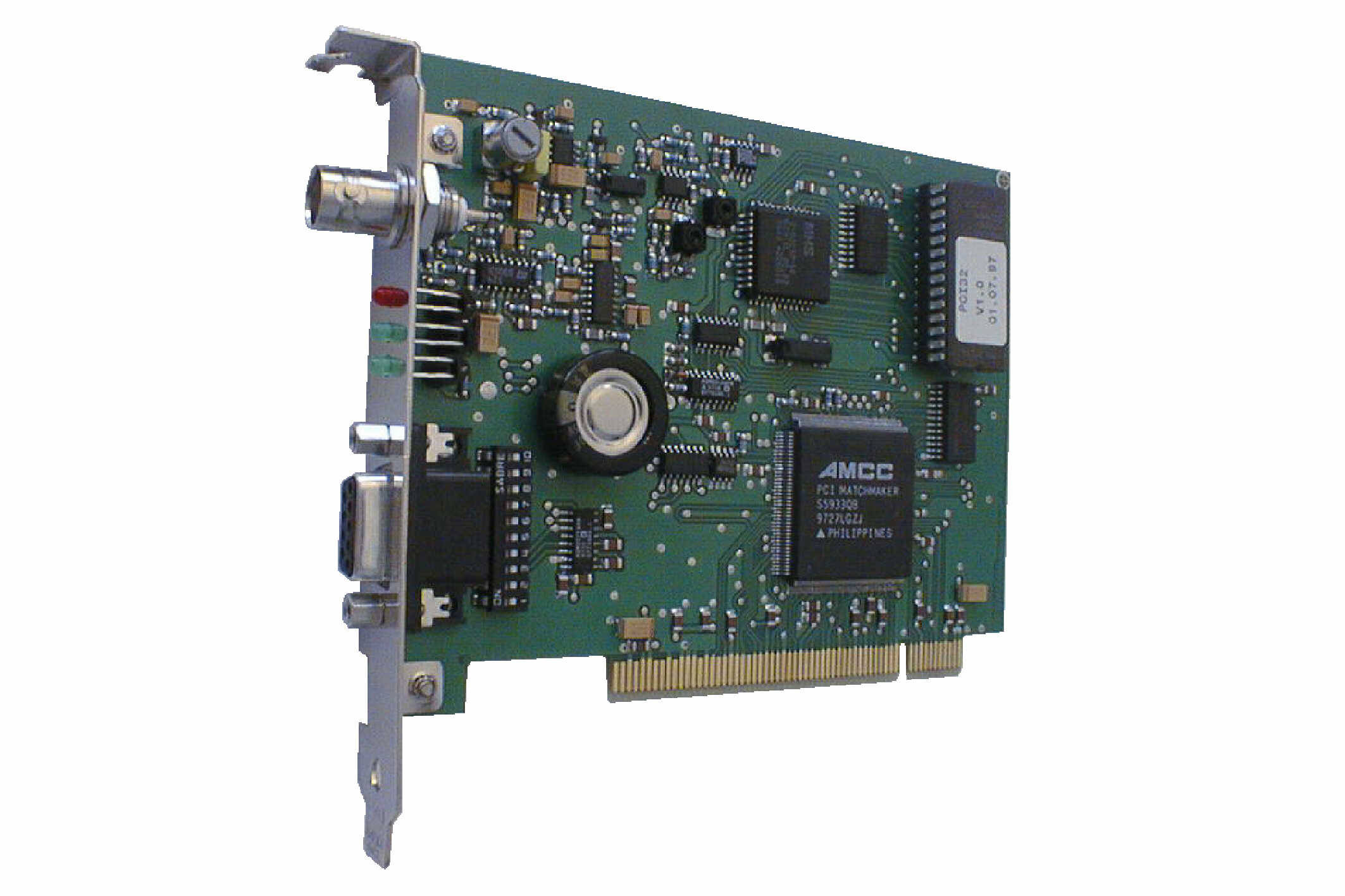

PCI32: DCF77 Computer Clock (PCI Bus)
Key Features
- PCI LOCAL BUS interface
- Plug and play
- Pulses per second and per minute
- Periodic interrupts
- RS-232 interface
- Reception status indicated by LED
- Buffered hardware clock
- Configurable time zone
- Driver software for all popular operating systems
-
Previous Models - PCI32:
PC32 :: DCF77 Computer Clock (ISA bus)
Product Description
Characteristics
Receiver Type | Narrowband synchronous receiver with automatic gain control, Bandwidth: approx. 40Hz |
Status Indicators | RF Signal: Indicated by LED, antenna alignment enhanced by utility program Free running: Indicated by LED and utility program without RF signal the clock runs on quartz basis with an accuracy of ±1·10-6 (after 24 hours of synchronous operation) Modulation: Indicated by LED and utility program |
Reception Monitoring | Incoming time string undergoes multiple checks
Plausibility test using two full consecutive time strings |
Pulse Outputs | Pulses per second and per minute (TTL level), pulse duration: 200 msec |
Serial Time String Output | Baudrate: 300, 600, 1200, 2400, 4800, 9600 baud Framing: 7E2, 8N1, 8E1, 8N2 Output string: 32 ASCII characters with date, time and status information |
Statusbyte | Informations about free running mode, daylight savings time and DST pre-switch anouncement, synchronization since last reset, GMT/UTC time and validity of the hardware clock data |
Electrical Connectors | 9 pin sub D male connector BNC female connector |
Computer interface | 33MHz-PCI bus 32 bit/5V slot |
Backup Battery Type | In case of supply voltage failure the on-board RTC keeps the time based on XTAL for more than 150 hours (buffer capacitor) Optional: lithium backup battery (life time: 10 years) |
Board type | PCI card short |
Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
Contents of Shipment | Scope of supply includes an active ferrite antenna AI01 and 5m of RG174 coaxial cable with BNC connectors. Optional: AW02 with RG58 and patch cord, other length of cable |
