NUC80E: Slave Clock Driver

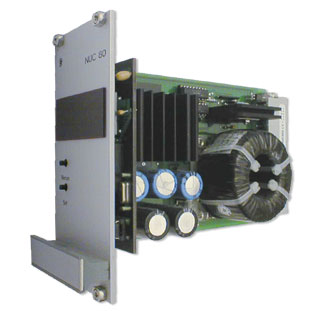

Slave Clock Driver NUC80E

Slave Clock Driver NUC80E for up to 80 slave clocks, cascadable, second slave line and minute slave line with short circuit proof pulse outputs.

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Up to 80 Slave Clocks and cascadable
  • Second Slave Line and Minute Slave Line, Short Circuit Proof Pulse Outputs
  • Alphanumeric Display
  • Autotracking of the Slave Clocks
  • Buffered RAM
  • +5V Supply for a Radio Clock




Product Description



Characteristics

Display 8-digit alphanumeric dot matrix display, digit size 5 mm
Control Elements Two keys for menu driven settings
Pulse Outputs shorted slave line detection and autotracking of the slave clocks
potential separation between power and control parts
pulse voltage: 24V
pulse current: 0.6A max.
pulse width: 1sec (minute slave line), 0.5sec (second slave line)
pulse outputs short circuit proof
Interface 20mA current loop input (passive)
Serial Time String Output Baudrate: 9600 baud
Framing: 7E2
Alarm output Active when slave line is shortened or in case of driving failure
Dimensions of the front panel 12HP/3U (60mm x 128mm)
Electrical Connectors Male connector, mixed F/H, DIN 41612 Type F: 24pin, type H: 7 pin
Operating Voltage Input: 230V/50Hz
Output: +5V/350mA (power supply for the radio clock)
Board type Eurocard
Board Dimensions 160 mm x 100 mm, 1,5 mm Epoxy
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Warranty Three-year warranty


Downloads

Short Info Sheet



Manuals


Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
