HUC80E: Slave Clock Driver

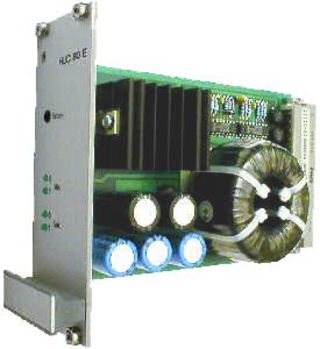

Slave Clock Driver HUC80E

Meinberg Slave Clock Driver HUC80E for up to 80 slave clocks, second slave line and minute slave line with control LEDs, pulse voltage 12V or 24V.

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • Up to 80 Slave Clocks
  • Pulse Voltage 12V or 24V
  • Second Slave Line and Minute Slave Line with Control LEDs
  • Short Circuit Proof Pulse Outputs
  • +5V Supply for a Radio Clock




Product Description



Characteristics

Control Elements Key for setting the slave line
Pulse Outputs pulse voltage: 12V/24V selectable
pulse current: 0.6A max. (24V), 1.2A max. (12V)
pulse width: 1sec (minute slave line), 0.5sec (second slave line)
pulse outputs short circuit proof
Dimensions of the front panel 10HP/3U (50mm x 128mm)
Electrical Connectors Male connector, mixed F/H, DIN 41612 Type F: 24pin, type H: 7 pin
Operating Voltage Input: 230V/50Hz
Output: +5V/350mA (power supply for the radio clock)
Board type Eurocard
Board Dimensions 160 mm x 100 mm, 1,5 mm Epoxy
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C


Downloads

Short Info Sheet



Manuals

  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
