HSC509: DCF77 Master Clock

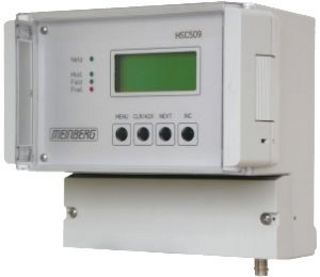

DCF77 Radio Clock HSC509

DCF77 radio controlled master clock HSC509 with integrated power supply, slave clock drivers and 2 RS232/current loop Interfaces.

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • Integrated Power Supply
  • LC-display, 4 x 16 characters
  • 2 RS232/Current Loop Interfaces
  • Reception status indicated by LED
  • Buffered hardware clock
  • Slave Clock Drivers
  • 1024 Switching Times
  • 4 Relay Outputs
  • Flash-EPROM with bootstrap loader




Product Description



Characteristics

Receiver Type Narrowband DCF77 quadrature receiver with automatic gain control, bandwidth: approx. 20Hz
Status Indicators LEDs for power (integrated power supply), modulation and RF amplitude
Type of Antenna DCF77 indoor antenna AI01
Display LC Display, 4 x 16 characters
Accuracy free run Accuracy of the quartz base after min. 24hrs of synchronized operation: ±1·10-6
Reception Monitoring Incoming time string undergoes multiple checks
Plausibility test using two full consecutive time strings
Pulse Outputs Slave clock lines (second and minute line) for analog slave clocks,
output shorted slave line detection and autotracking of the slave clocks
potential separation between power and control parts
pulse voltage: 24V
pulse current: 0,6A max.
pulse width: 1sec (minute line), 0.5sec (second line)
Interface Two independent serial RS-232-interfaces, menu configurable
Serial Time String Output COM0: Baudrate: 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 Baud
Framing: 7E1, 7E2, 7N2, 7O2, 8E1, 8N1, 8N2
one active/passive 20mA current loop output
one active/passive 20mA current loop input
COM1: Baudrate: 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 Baud
Framing: 7E1, 7E2, 7N2, 7O2, 8E1, 8N1, 8N2
one active/passive 20mA current loop output
one active/passive 20mA current loop input
Output string: 32 ASCII characters with date, time and status information
Relay Outputs 4 relay outputs (changeover contact), max. 50W load
Switch programs 8 different plans assigned to the days of the week (holidays included or not) with up to 1024 switching times can be edited by the 4 keys in the frontpanel. Alternative: Pulses can be programmed to the outputs
Dimensions of the front panel Milled aluminium, 4 integrated keys for menu routing, 100mm x 160mm
Electrical Connectors 32 pin Phoenix connector (counterpart incl.)
BNC coaxial female connector
230V mains cable
Backup Battery Type In case of supply voltage failure the on-board RTC keeps the time based on XTAL for more than 150 hours (buffer capacitor)
Optional: lithium backup battery (life time: 10 years)
Operating Voltage 230V AC, 50Hz
Form Factor Bopla RegloCard-Plus 1700, IP43 protected
Current Draw ca. 100mA
Physical Dimensions 160mm x 193mm x 131mm (height x width x depth)
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
