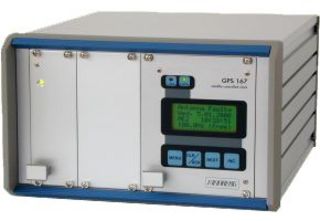

GPS167TGP: GPS Satellite Receiver in Propac Desk Top Case
Key Features
- 2 time trigger inputs
- LC-display, 4 x 16 characters
- 2 RS-232 interfaces
- Integrated GPS satellite receiver
- Frequency synthesizer
-
Antenna-/converter unit
(included)
Product Description
Characteristics
Receiver Type | 6 channel GPS C/A-code receiver |
Type of Antenna | Included GPSANTv2 antenna with innovative downconverter technology that allows transmission routes of up to 300 m using RG58 cable, 700 m using RG213 cable, and 1100 m using H2010 Ultraflex cable |
Display | LC Display, 4 x 16 characters |
Interface | Two independent serial RS-232-interfaces, menu configurable |
Serial Time String Output | Baud rate: 300, 600, 1200, 2400, 4800, 9600, 19200 Baud Data format: 7N2, 7E1, 7E2, 8E1, 8N1, 8N2 Time telegram: Meinberg Standard Time String , SAT, Uni Erlangen (NTP), SPA, Sysplex, RACAL, NMEA0183 (RMC,GGA,ZDA), Meinberg GPS, COMPUTIME, ION oder Capture String |
Time-Trigger inputs | Resolution: 100 nsec, triggered by falling TTL slope Time of trigger event readable via RS232-interface |
Alarm output | Synchronous state of the module, relay output (changeover contact) |
Antenna Connector | Type-N connector |
Form Factor | Desktop housing, Schroff Propac |
Physical Dimensions | 260mm x 160mm x 320mm |
Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
Contents of Shipment | GPS antenna/converter unit 20m of cable RG58 with N-type connectors |
RoHS Status of Product | This product is fully RoHS-compliant. |
WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
Downloads
Short Info Sheet
Manuals
Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
- For drivers, SDKs, tools and utilities, please check our Download Section
