GPS167BGT: GPS Satellite Receiver HF Modular Rack Case


GPS Satellite Receiver HF Modular Rack Case

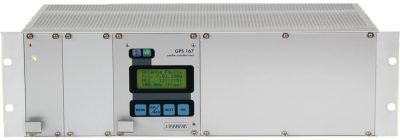

GPS Satellite Receiver 19" (3U) HF Modular Case GPS167BGT with frequency output, 2 RS232 Interfaces, 2 Time Trigger Inputs and Error Output

Key Features

Warranty Period (Years): 2 RoHS-compliant



Product Description



Characteristics

Receiver Type 6 channel GPS C/A-code receiver
Type of Antenna Included GPSANTv2 antenna with innovative downconverter technology that allows transmission routes of up to 300 m using RG58 cable, 700 m using RG213 cable, and 1100 m using H2010 Ultraflex cable
Display LC Display, 4 x 16 characters
Interface Two independent serial RS-232-interfaces, menu configurable
Serial Time String Output Baud rate: 300, 600, 1200, 2400, 4800, 9600, 19200 Baud
Data format: 7N2, 7E1, 7E2, 8E1, 8N1, 8N2
Time telegram: Meinberg Standard Time String , SAT, Uni Erlangen (NTP), SPA, Sysplex, RACAL, NMEA0183 (RMC,GGA,ZDA), Meinberg GPS, COMPUTIME, ION oder Capture String
Time-Trigger inputs Resolution: 100 nsec, triggered by falling TTL slope
Time of trigger event readable via RS232-interface
Alarm output Synchronous state of the module, relay output (changeover contact)
Antenna Connector Type-N connector
Form Factor Rackmount 3U chassis for standard 19'' racks
Physical Dimensions 485mm x 132mm x 290mm
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Contents of Shipment GPS antenna/converter unit and 20 m Cable RG58
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals


Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
