GEN77TGP: DCF77 Code Generator in desktop case


DCF77 Generator GEN77TGP

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

This product has been discontinued and has been replaced with: GEN170TGP

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • AM and PM
  • Leap Second Capability
  • Daylight Saving Capability
  • TCXO Reference Frequency




Product Description

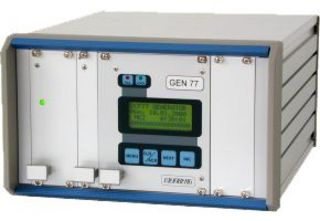

The GEN77TGP generates a DCF77 compatible signal with programmable date and time information. So it is possible to check the correct funktion of a radio clock or decoding software at a specific time. GEN77TGP is a set of equipment composed of a GEN77, a power supply PSK105 and the additional modulator card MOD77, all installed in a metal desktop case and ready to operate. A DCF77 radio clock can be connected directly via the rear panel antenna output connector.


Characteristics

Electrical Connectors 2 x BNC female connector (antenna output twofold, optional fourfold)
25pin DSUB connector (RS232 interface)
power cord receptacle (230V)
Operating Voltage 230V/50Hz
Form Factor Metal desktop case Schroff Propac, front panel: 3U/42HP
protection rating: IP20
Physical Dimensions 257mm x 157mm x 316mm (width x height x depth)
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.
  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
