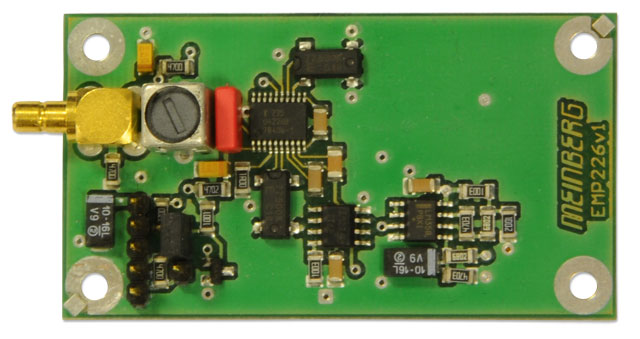

EMP226: DCF77 Receiver


DCF77 Receiver EMP226

DCF77 Receiver EMP226

End of Life Announcement

This product is no longer available and may have been replaced by a newer product. We will, of course, continue to provide support for units that have already been purchased and are still in use. Please contact our Sales Department for further details.

Key Features

Warranty Period (Years): 2 RoHS-compliant
  • Straight Receiver with Automatic Gain Control
  • Demodulated Time Marks as TTL and LED Output
  • Field Strength Indication




Product Description



Characteristics

Receiver Type Narrowband tuned radio frequency receiver with automatic gain control, reception frequency: 77.5 kHz, bandwidth approx. 40 Hz
Type of Antenna DCF77 indoor antenna AI01
Pulse Outputs Demodulated time marks (TTL level, aktiv low or aktiv high, jumper-selectable) for further processing
Demodulated time mark output directly drives LED
Field strength output directly drives LED
Electrical Connectors 5 pin contact strip
SMB male connector
Operating Voltage +5 V DC
Current Draw ca. 15mA
Board Dimensions 63,5mm x 35mm, 1,5mm Epoxy
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Contents of Shipment Scope of supply includes an active ferrite antenna AI01 and 5m of RG174 coaxial cable with BNC connectors.
Optional: AW02 with RG58 and patch cord, other length of cable
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals

  • Handbuch (deutsch) zur Zeit nicht verfügbar.
  • Manual (english) not available at current time.

Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
