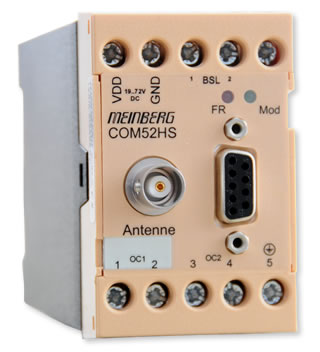

IMS - Modular SynchronizationCOM52HS: DCF77 radio clock for 35mm DIN mounting rail.
Key Features
- Internal DCDC converter for 19..72VDC operating voltage
- Pulses per second and per minute
- RS-232 interface
- Reception status indicated by LED
- DCF77 radio clock
Product Description
RS232 interface via 9 pin SUB-D female connector. Pulse per second and pulse per minute. These pulses are accessable via the ten pole screw terminal.
RS232 Output
An asynchronous serial port can be used to transmit information on date and time to other devices. The clock is configured to send time messages automatically with 9600 baud and with a framing of 7E2 once per second.
Pulse Output
After DCF77 synchronization, a pulse per minute and a pulse per second, with a pulse duration of 0.2 seconds, will be switched on. The generation of the pulses will be maintain for 12 hours if the DCF77 receipt is disturbed. Thereafter the pulses will be deactivated.
Housing

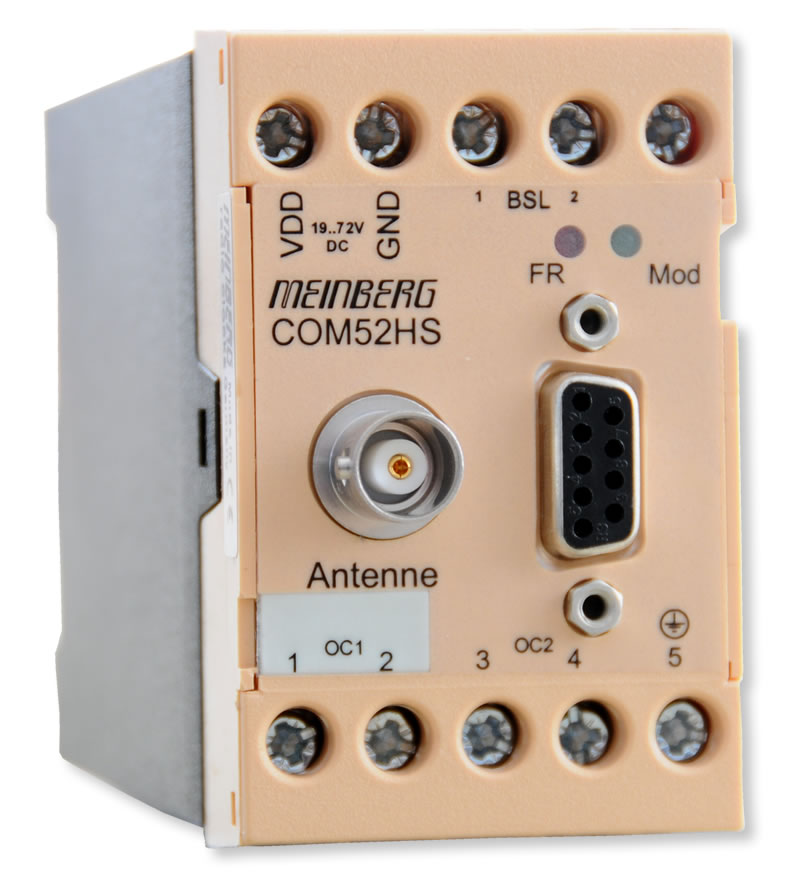

The receiver module is mounted in a plastic housing for 35mm DIN mounting rails. Two status LEDs (for modulation and free-running mode), the BNC antenna connector and a D-SUB9 connector for the serial RS232 interface are integrated in the front side of the housing.
Operating Voltage
The system requires an operating voltage of 19...72V/DC witch is applied via two contacts of the integrated screw terminal. The receiver is DC isolated due to an internal DCDC converter, the isolation voltage is 1,5KV DC.
Characteristics
| Receiver Type | Narrowband tuned radio frequency receiver with automatic gain control, reception frequency: 77.5 kHz, bandwidth approx. 40 Hz |
| Status Indicators | Modulation visualized by LED. Free running state visualized by LED after switching to free running quartz clock mode |
| Type of Antenna | Scope of supply includes an active ferrite antenna AI01 and 5m of RG174 coaxial cable with BNC male connectors. Optional: AW02 with RG58, other length of cable |
| Reception Monitoring | Incoming time string undergoes multiple checks
Plausibility test using two full consecutive time strings |
| Pulse Outputs | Pulse per second and pulse per minute (optocoupler), pulse width: 200 msec |
| Interface | Single serial RS-232 interface |
| Serial Time String Output | Baudrate: 9600 baud Framing: 7E2 Output string: 32 ASCII characters with date, time and status information |
| Electrical Connectors | 9 pin sub D female connector BNC female connector 10 pole screw terminal for connecting the pulse outputs and the power supply |
| Operating Voltage | 19....72VDC |
| Form Factor | Dold Enclosure type KO4762, IP40 protected |
| Current Draw | approx. 100mA |
| Physical Dimensions | 73,2mm x 45mm x120mm (width x height x depth) |
| Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
| Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
| Options | Driver software for Windows, Novell and UNIX (NTP Freeware) |
| RoHS Status of Product | This product is fully RoHS-compliant. |
| WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
