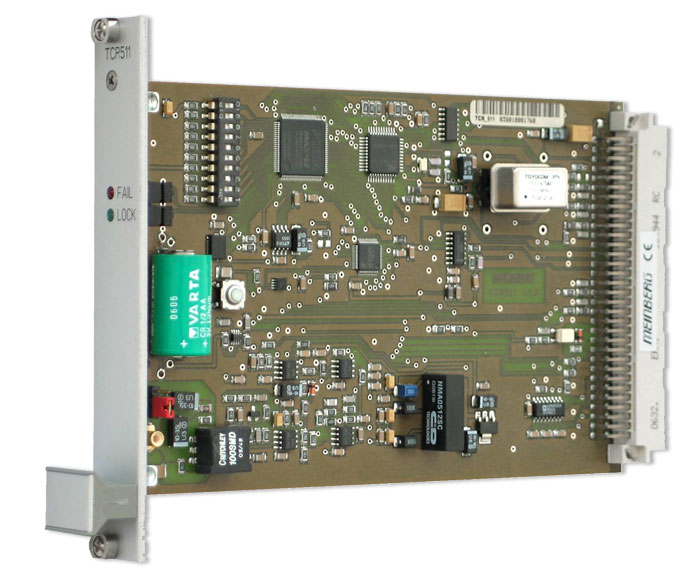

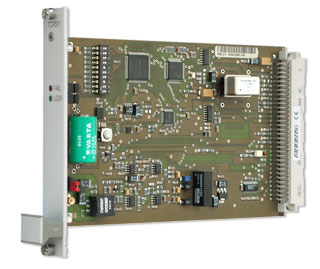

TCR511: IRIG Time Code Receiver
Key Features
- 2 RS-232 interfaces
- Status LED
- DCF77-simulation
- Reception of time code formats IRIG-A/B or AFNOR NFS 87-500
-
Previous Models - TCR511:
TCR510 :: IRIG Time Code Receiver
TCR509 :: IRIG Time Code Receiver
Product Description
The TCR511 has been optimized for reception of IRIG code formats A133 and B123, as well as the translation of these received IRIG codes into a serial telegram and a pulse telegram (representing the signal broadcasted by the German time code transmitter DCF77). The TCR511 can perform a re-calculation of UTC based on the IRIG time. A buffered real time clock maintains time and date while the power supply is not available. The receiver's automatic gain control function (AGC) allows the reception of IRIG signals within an amplitude range from 600mV to 8V (peak to peak). The board uses a flash memory and a bootstrap loader which allows to update the systems firmware via its serial port.Characteristics
Input signal | modulated time code signal, input insulated by transformer, terminated in 50Ω / 600Ω / 5kΩ jumper selectable unmodulated (DC level shift) time code, |
IRIG Time Code Input | IRIG-A133, A132, A003, A002, B123, B122, B003, B002 and AFNOR NFS 87-500 (other codes on request) |
Frequency Outputs | 10 MHz, 1 MHz, 100 kHz (TTL level) Accuracy referred to Reference : 1 x 10-8 ( TCXO ) if synchronized for more than 24hours |
Pulse Outputs | Pulse per second and pulse per minute (TTL level), pulse width: 200 msec |
Precision of timebase | +/-10us referred to reference marker in synchronous mode |
Interface | two independent RS232 ports COM0 and COM1 (COM1 RS485 optionally). |
Serial Time String Output | Baudrates: 9600, 19200, Framing: 7E2 or 8N1 Modes: Telegram per second or on request. Telegram: 32-Bytes ASCII with time and date information |
Dimensions of the front panel | 4HP/3U (20mm x 128mm) |
Electrical Connectors | 64-pin rear VG edge connector DIN 41612 SMB male connector |
Power Consumption | 1,2W / 3W ( TCXO / OCXO ) |
Backup Battery Type | When main power supply fails, hardware clock runs free on quartz basis, life time of lithium battery min. 10 years |
Operating Voltage | +5 V DC |
Current Draw | 250mA/600mA ( TCXO / OCXO ) |
Board type | Eurocard |
Board Dimensions | 160 mm x 100 mm, 1,5 mm Epoxy |
Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
Warranty | Three-year warranty |
RoHS Status of Product | This product is fully RoHS-compliant. |
WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
