DCF77 Optical Antenna Link
The Meinberg DOAL is a DCF77 Optical Antenna Link used to connect a Meinberg DCF77 antenna to a Meinberg DCF77 receiver using a single optical multimode fiber.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • large antenna cable distances (up to 2000mtrs.)
  • no destructive overvoltage via the antenna cable
  • no unintentional monitoring possible via optical fiber




Product Description

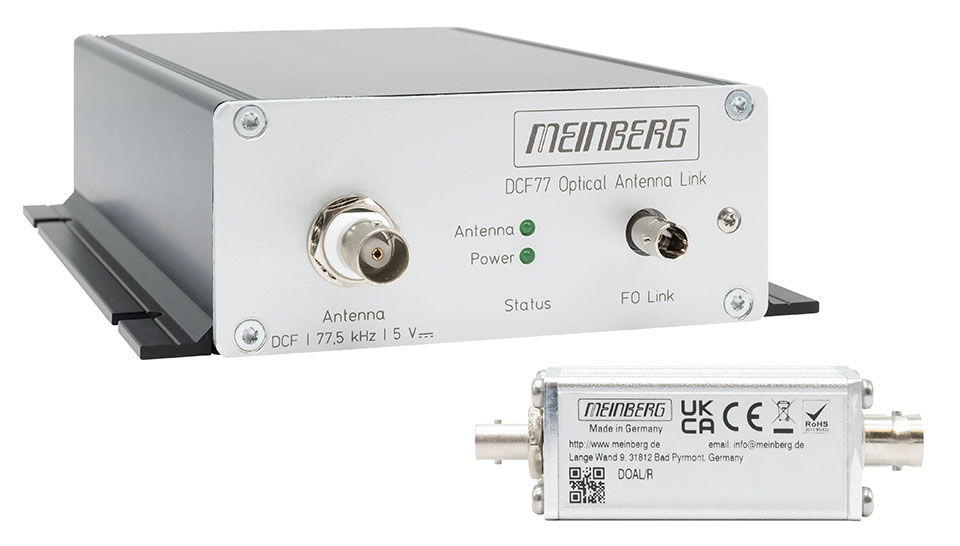

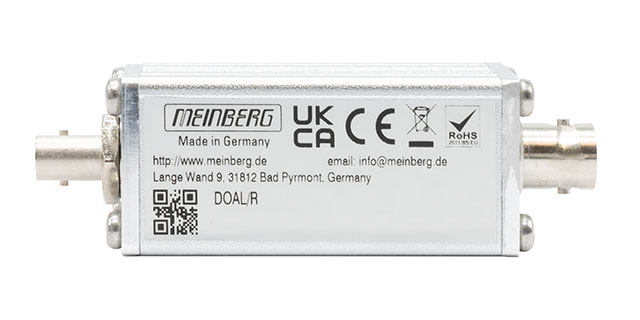

The DOAL/A module mounts indoors, and connects to a Meinberg DCF antenna (AI01, AW02 or AK03) with a short coaxial cable. The DOAL/R module connects to the receiver's antenna input either directly or with a patch cable. Both modules are linked to each other by a single GI50/125μm or GI62.5/125μm multimode gradient fiber. This Fiber Optic connection provides several advantages:

The DOAL system is suitable for all Meinberg DCF receivers, and can be retrofit to existing Meinberg DCF77 systems. The DOAL/A antenna module requires an external power supply to operate the DCF77 antenna. The DOAL/R receiver module is powered by the DCF receiver and does not require an external power supply.



Characteristics

Type of Antenna Input for a Meinberg DCF77 antenna (77,5 kHz) via coaxial cable
Optical Outputs ST connector for GI 50/125µm or GI 62,5/125µm gradient fibre,
Wave length: 850nm,
Launchable optical output power: typ. 15µW (into GI 62,5/125µm),
Optical input level: min. 3µW
Electrical Connectors optical ST connector
female BNC

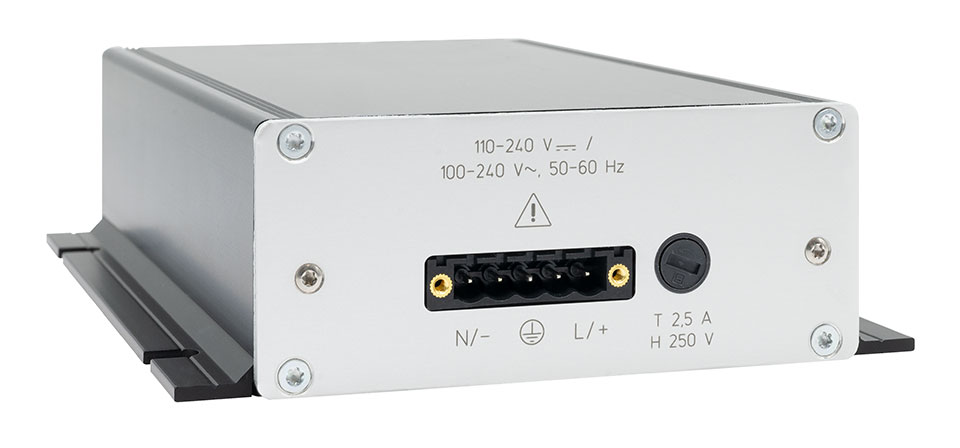

Power Supply (DOAL/A only)
Operating Voltage DOAL/A: 100 - 240VAC / 50/60Hz, 100 - 240VDC
optional: 18 - 72VDC
power consumption: 5W max.
Form Factor DOAL/A: black eloxadized aluminium housing, with aluminium front and rear panel
DOAL/R: aluminium HF housing
protection class: IP30
Physical Dimensions DOAL/A: 44mm x 105mm x 165mm (height x width x depth)
DOAL/R: 25mm x 25mm x 95mm (height x width x depth)
Supported Temperature -25 ... 65° C
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
