LCES: LANTIME CPU Expansion Shelf
Key Features
- Synchronization of NTP and SNTP compatible clients
- Web-based status and configuration interface and console-based graphical configuration utility
- Supported net protocols: IPv4, IPv6, NTP, (S)NTP, DAYTIME, DHCP, HTTP, HTTPS, FTP, SFTP, SSH, SCP, SYSLOG, SNMP, TIME, TELNET
- Alert-Notification system of status change by Email, WinMail, SNMP or an external connected display
- Advanced security protocols for authentication (MD5, Autokey, Groupkey, HTTP certificate, SSH key), user management with multilevel access policies
- Full support for SNMP v1, v2c und v3 with dedicated SNMP daemon for configuring/status monitoring of system using SNMP traps
- Upgradable flash memory
- USB Port for installing firmware updates and backup/restore of configuration and log files
- NTP LED display ANZ141NET or NTP Slave Clock VP100/20NET connectable via network
Product Description

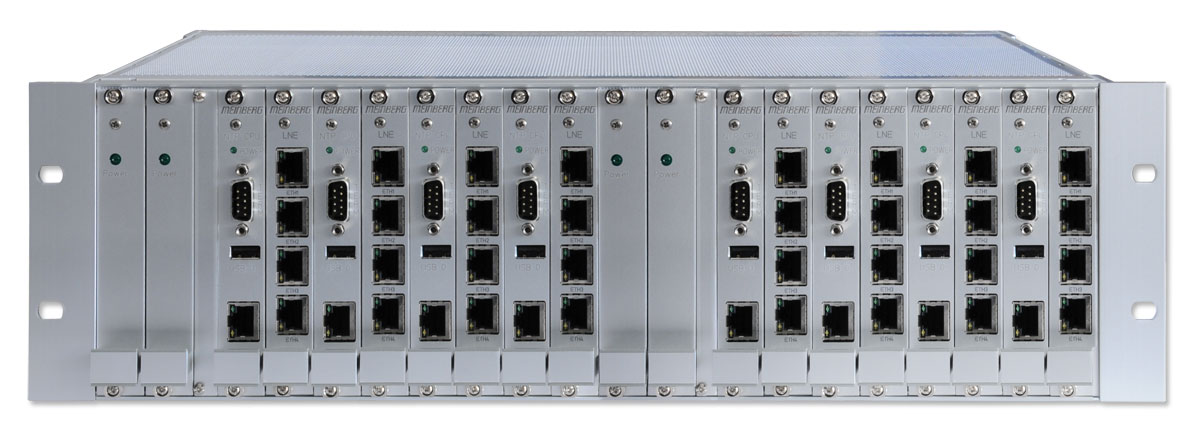

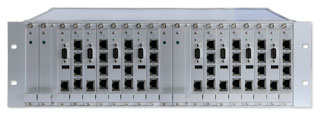

The LCES can be connected with a radio clock or a LANTIME NTP server of our M-Series (M300, M400, M600 and M900), which provides the serial time string and a PPS-signal from the reference device for the LCES system. The 3U chassis has enough space for a maximum configuration of four LAN CPUs with three LNE-4- expansions for each CPU, respectively or optionally eight CPUs with one LNE-4 expansion for each LAN-CPU.
Thereby the left and right CPU slots are always supplied by two redundant high efficient power supply modules. The CPU or the LNE- expansion slots can be ordered extra anytime to expand the system when necessary. Use the color codes below to show possible LCES configuration samples.
LCES Module 1 - Basic Configuration and Expansion Options
LCES Module 2 - Basic Configuration and Expansion Options

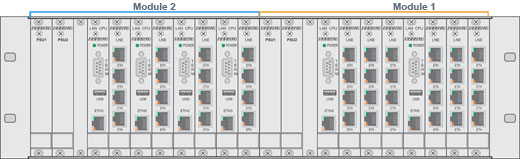

LCES Configuration Sample with fully equipped Module 2 and Module 1
Characteristics
Bringing into Service | The initial configuration of a LANTIME time server without display is described in this Datasheet. |

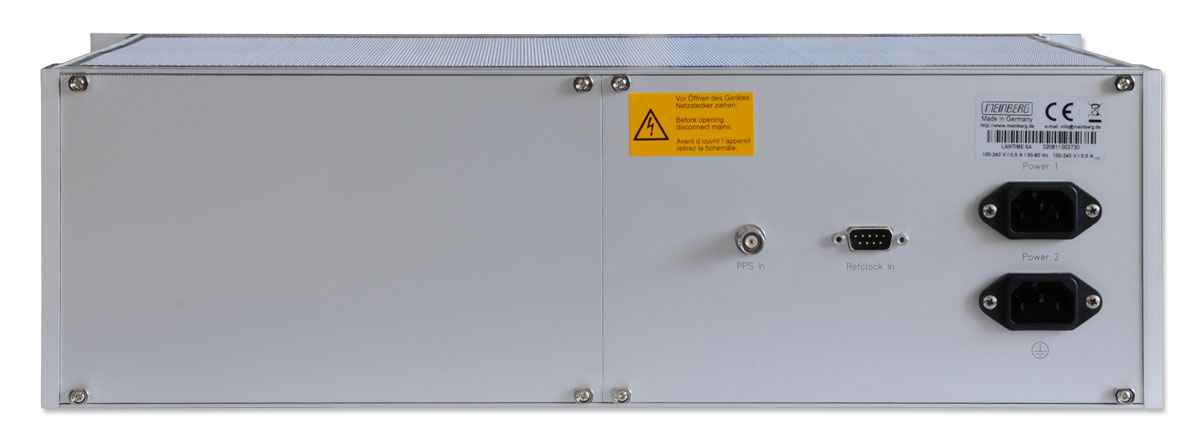

Input signal | RS-232 Interface for external Reference Clock |
Pulse Synchronization Input Signals | 1 Pulse Per Second, TTL (BNC) |
Network Interface |
CPU-C05F1
1 x 10/100BASE-T RJ45 CPU-C15G2 2 Network Ports: 1 x 10/100/1000Base-T RJ45 1 x 1000BASE-T SFP Slot |
Power Consumption | max. 70 W |
Operating Voltage | redundant: 100-240 V AC (50-60 Hz) / 100-240 V DC |
Form Factor | Rackmount 3U chassis for standard 19'' racks |

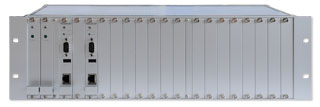

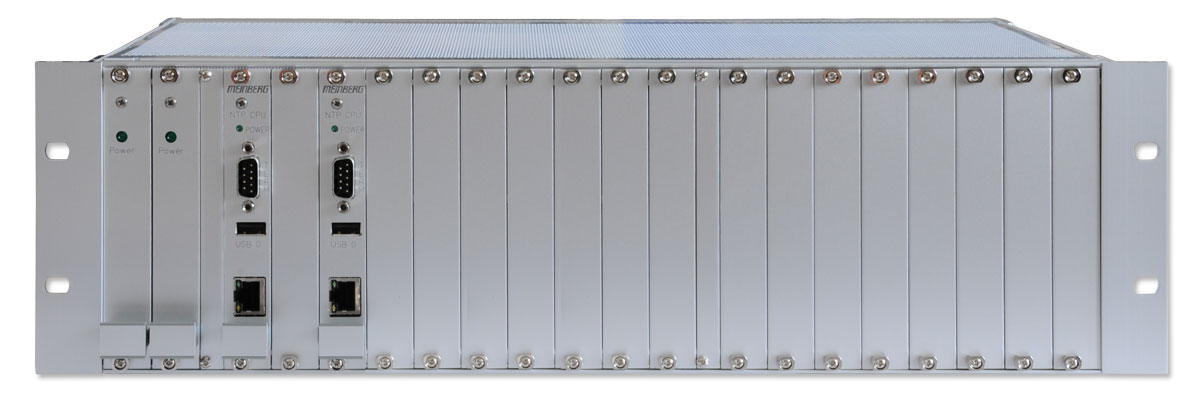

Basic Hardware Configuration | Two LANCPU's (NTP CPU) connected as RD (Initial configuration only possible via terminal interface) |
Physical Dimensions | 483mm x 132mm x 275mm / Width x Height x Depth |
Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
Warranty | Three-year warranty |
Options | Three different hardware configurations are available:
|
RoHS Status of Product | This product is fully RoHS-compliant. |
WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
