GPSAV4: GPS Antenna Distributor (4-port, external)



The GPSAV4 redistributes a signal from a Meinberg GPS antenna/converter unit to four outputs, which in turn are connected to up to four Meinberg GPS receivers. The signal distributor is fitted with an internal amplifier to minimize signal attenuation.

The direct use or connection of GNSS L1 components is not possible.

Key Features

Warranty Period (Years): 3 RoHS-compliant
  • Up to 4 GPS Receiver with one Antenna
  • No additional Power Supply necessary
  • GPSAV4 antennas with three cascading levels




Product Description

The GPSAV4 is supplied with power via the GPS receiver connected to output connector 1. This output must therefore always be enabled; the others can be left disabled as necessary.

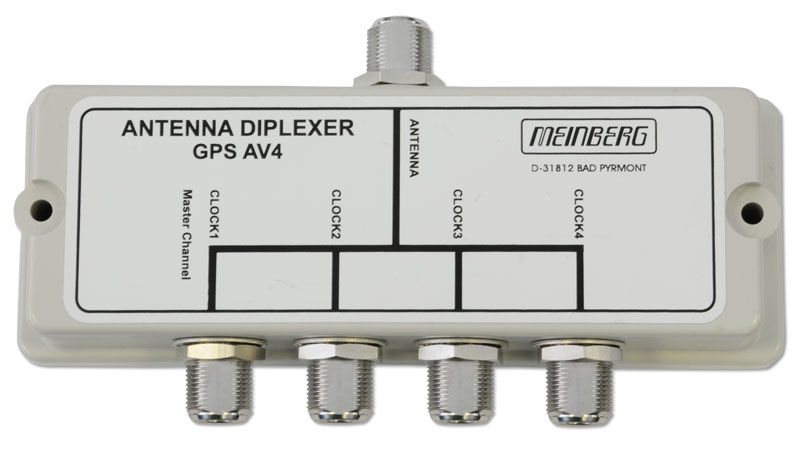

The signal distributor is in a plastic housing fitted with five standard Type N input and output connectors.

Multiple GPSAV4s can be connected in a cascaded structure (up to a maximum of three levels).

You can find continuative information here:
Application of the GPS Antenna Splitter
GPSAV4 Data Sheet



Characteristics

Signal Delay Additional Path Delay: 50ns
Gain 0 ... +3 dB
Operating Voltage 12 V ... 18 V DC (from GPS receiver at output no.1)
Current Draw ca. 20 mA
Mixing Frequency Mixture frequency: 10 MHz
Intermediate frequency: 35.4 MHz
Physical Dimensions 182 mm x 65 mm x 37 mm (width x depth x height)
Supported Temperature Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F)
Supported Humidity Max. 85 % (non-condensing) at 40 °C
Warranty Three-year warranty
RoHS Status of Product This product is fully RoHS-compliant.
WEEE Status of Product This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.


Downloads

Short Info Sheet



Manuals


Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
