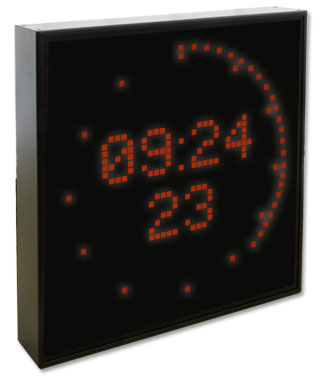

IMS - Modular SynchronizationDU35S: LED Large Display DU35S (date/time with seconds display as dotted circle)
Key Features
- Stand Alone Clock
- 20mA Interface
- 50mm LED Display for Time and Date
- RS-232 interface
- Display for external Clock
- Cascadable
Product Description
Large display DU35S with good visibility and 50mm height LED characters, working either as- radio clock with integrated DCF77 receiver, DCF indoor antenna AI01 and 5m cable (standard) or, by customers specifications, with an external outdoor antenna AW02. Antenna cables can be prefabricated as required. The connection to the external antenna can be done via BNC connector at the rear panel of the display
- free running clock (with or without programmable changeover in daylight saving)
- or externally driven display, via serial timestring (RS232 or current loop)
Characteristics
| Display | LED-Matrix Display (7 dots high) for time and date 50mm character height Without serial synchronisation the clock runs on XTAL with an accuracy of ±1·10-5, indicated by LED
|
| Interface | One serial RS232/20mA interface |
| Serial Time String Output | Baudrate: 9600 Baud Dataformat: 7E2 1 active/passive 20mA current loop output (selectable) 1 active/passive 20mA current loop input (selectable) Output string: 32 ASCII characters with date, time and status information |
| Electrical Connectors | 1 x 25 pin, 1 x 9 pin DSub female connector power cord receptacle |
| Backup Battery Type | In case of supply voltage failure the on-board RTC keeps the time based on XTAL for more than 100 hours |
| Operating Voltage | 85-264VAC (50/60Hz) / 120-375VDC |
| Form Factor | Plastic coated steel sheet case, black (optional: white), IP30 protected |
| Physical Dimensions | 323mm x 323mm x 57mm ( width x height x depth) |
| Supported Temperature | Operational: 0 - 50 °C (32 - 122 °F)
Storage: -20 - 70 °C (-4 - 158 °F) |
| Supported Humidity | Max. 85 % (non-condensing) at 40 °C |
| Warranty | Two-Year Warranty |
| RoHS Status of Product | This product is fully RoHS-compliant. |
| WEEE Status of Product | This product is handled as a B2B (Business to Business) category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. |
Downloads
Short Info Sheet
Manuals
Please note that only the most recent manual version is available for download. This manual therefore may not be suitable for all product versions.
- For drivers, SDKs, tools and utilities, please check our Download Section
